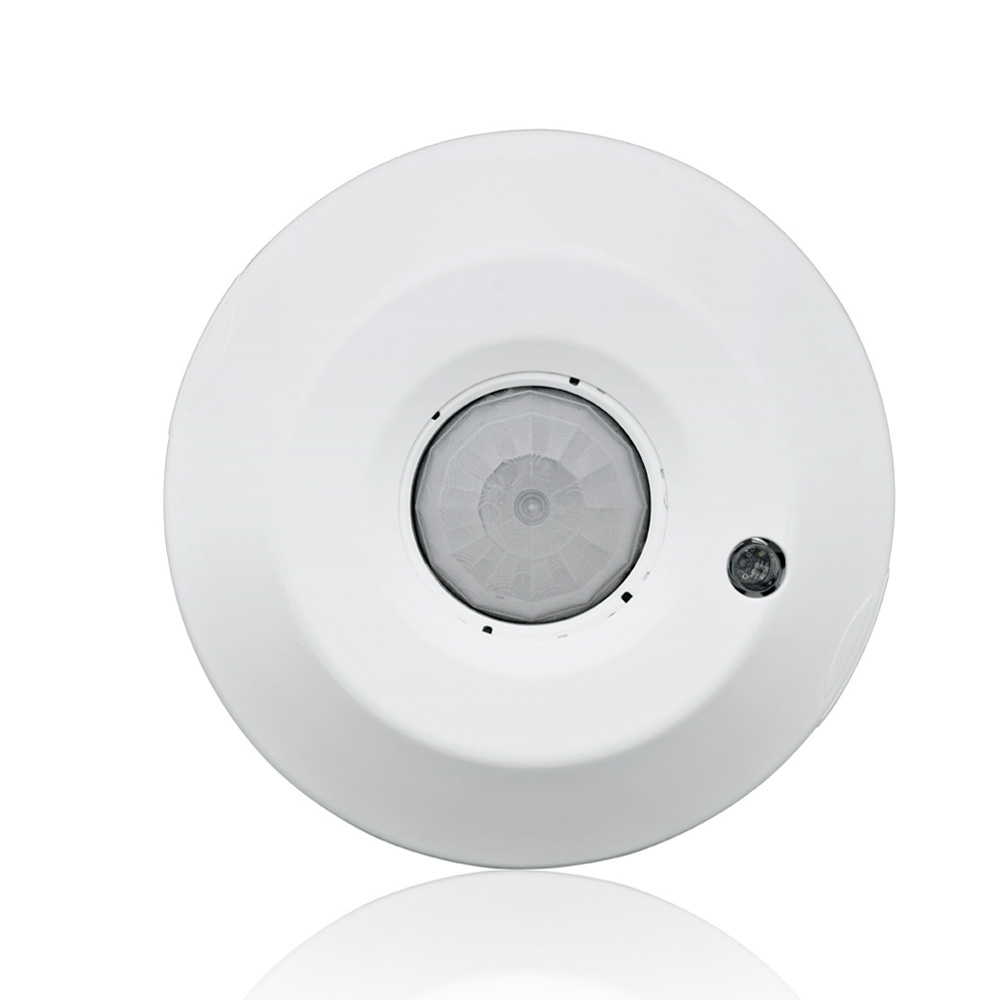

Product image for LEV ODC15-IDW OCC SEN CEILNG 1500 P
Image thumbnail 0

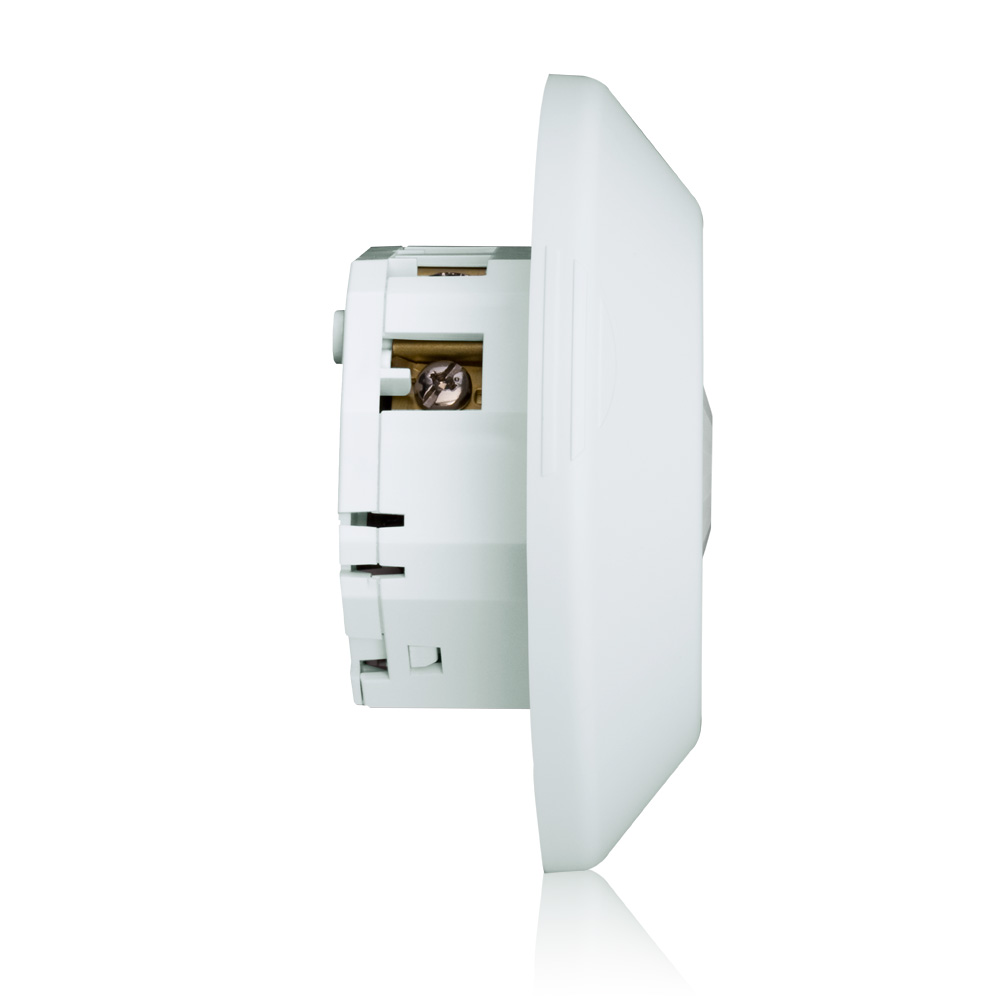

Image thumbnail 1

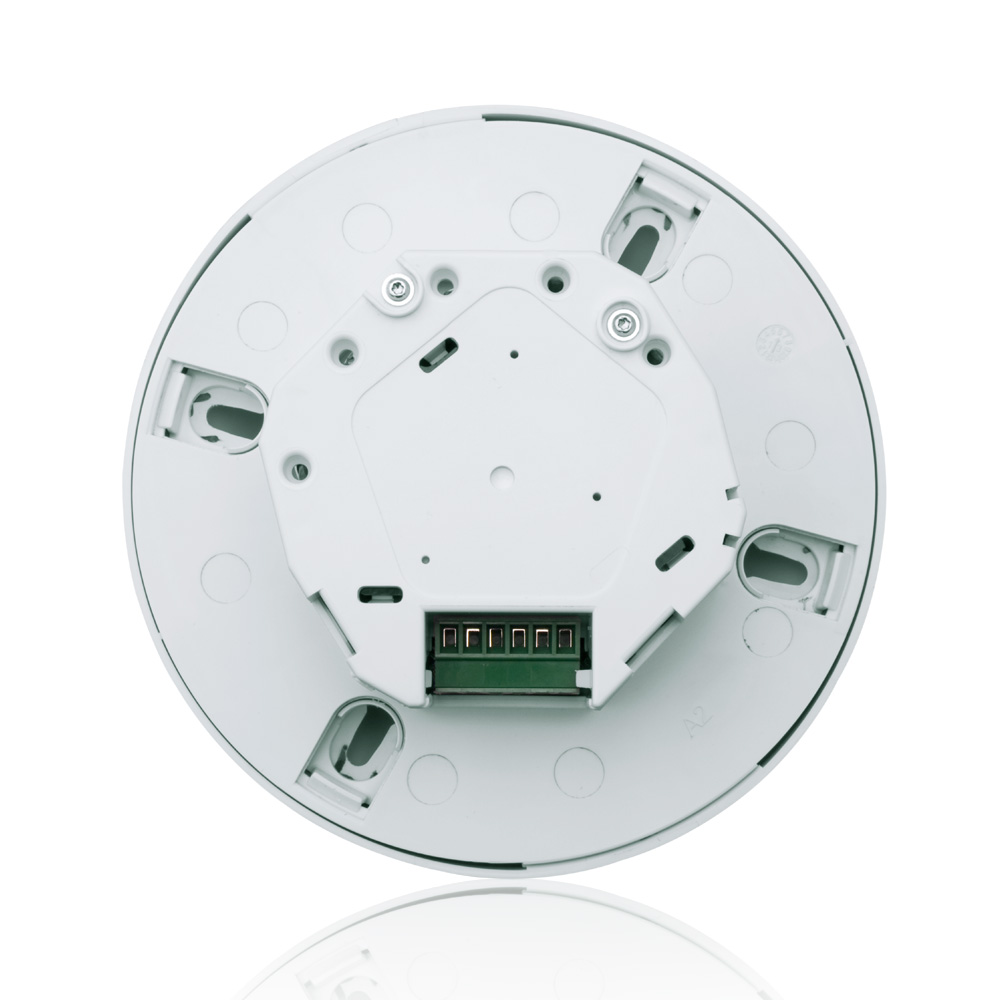

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV ODC15-IDW OCC SEN CEILNG 1500 P

Manufacturer: Leviton Mfg Co | Catalog # ODC15-IDW | Cooper Electric Part # 933759
$152.62/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Occupancy Sensor with Photocell, Provolt™ lighting control, Line Voltage, 8'-12' Ceiling Mount, Passive Infrared, 1500 sq ft, Daylighting, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC Title 20/24 compliant. Color: White.

Technical Information

Applications
Commercial
Coverage
1500 sq-ft
Frequency
50/60 Hz
Grade
Commercial
Mounting Type
Ceiling
Sensor Type
Ceiling Mount
Size
2.39 in
Temperature Rating
0 - 40 degrees C Operating, -26 to 71 degrees C Storage
Type
Multi-Technology
Voltage
120-277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Provolt

General Product Info

12-Digit UPC
078477642986
Color
White
Environmental Conditions
-26 to 71 C
GTiN
60078477642988
Product UPC
07847764298

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Uses industry-exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC systems. A Fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor.
  • Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
  • Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF
  • Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time
  • Exclusive Walk-through Feature: Provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
  • False Detection Timer: (M/T) The PIR scans for movement and shuts lights off after 31 minutes preventing false triggers from HVAC systems
  • Output short circuit protection
  • Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
  • Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied
  • Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
  • Test Mode for simplified commissioning
  • Manual Switch and Emergency Override are Class 1 and Class 2 circuits. Class 2 circuits provided for flexibility
  • Industry-exclusive fail-safe circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
  • Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle todays high inrush electronic ballast loads and offer unmatched durability and service
  • Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays

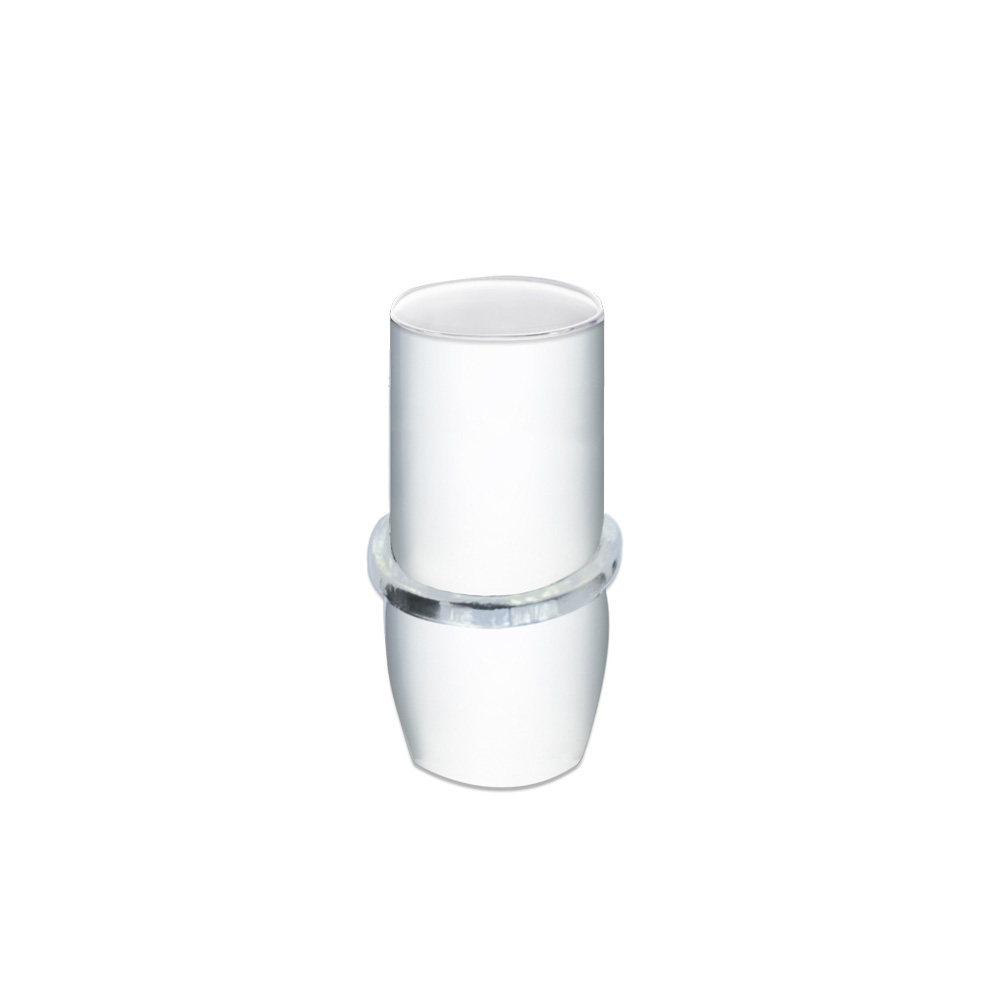

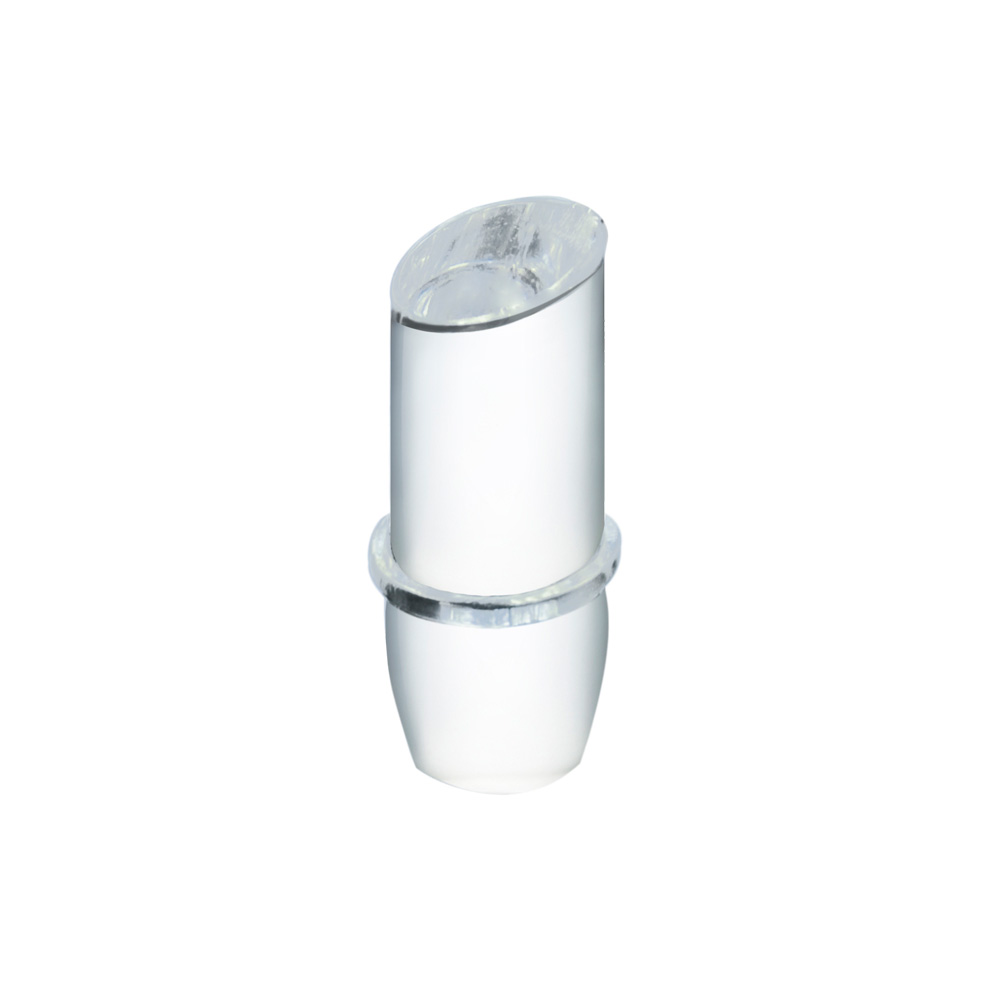

  • Lenses are easily replaceable and color-coded blue (high-density) and red (mid-range) for contractors and end-users to easily identify lenses from the ground
  • Red Visual LED indicator - Blinks when infrared is detecting motion and during photocell manual calibration; solid during device malfunction
  • Yellow Visual LED indicator - Blinks during test mode; solid with emergency/BMS input
  • Blue Visual LED indicator - Blinking light indicates photocell override
