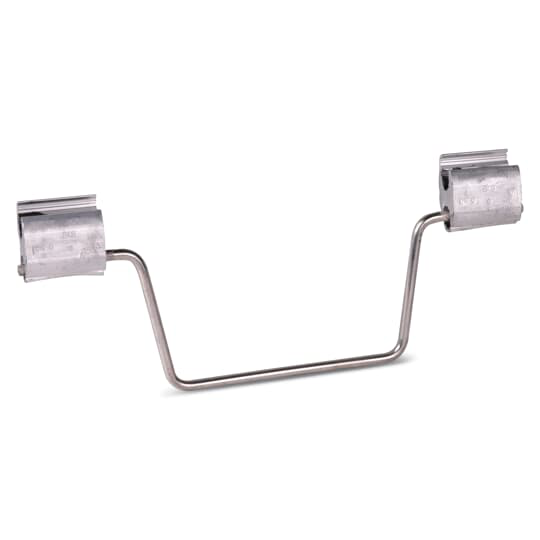

Product image for ABB WRS172 COMP STIRRUP W/CNTX 1/0-
Image thumbnail 0
Image thumbnail 1
Email

ABB WRS172 COMP STIRRUP W/CNTX 1/0-

Manufacturer: Blackburn / Thomas & Betts | Catalog # WRS172 | Cooper Electric Part # 932115
$41.16/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure
Aluminum Compression H-Tap Connector with Tin Plated Copper Stirrup, Contax Filled, Wire Range: 1/0-3 ASCR, 1/0 Stranded -1 Solid AWG, Stirrup #2 Solid Copper, Wing Shaped, 2 H-Tap Connectors on Stirrup. 10 inch x 2-15/16 inch.

Technical Information

Applications
Protect Main Conductors from Arcing Damage
Conductor Size
3-1/0 AWG ACSR, 1/0 AWG Stranded, 1 AWG Solid
Connection Type
Compression
Material
Aluminum
Size
10 X 2-15/16 inches Tall
TC Connection
Compression
Type
Contax Filled
Wire Size
1/0-3 ACSR ; 1/0 STR AWG ; 1 SOL

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786051670
Finish
Tin Plated
GTiN
00783786051670
Product UPC
78378605167
Features
  • Utilizes standard WR connectors and plated copper bails.
  • Protects main conductors from arcing damage when hot line taps are installed.
Notes
  • Decimal dimensions are for conventional conductor, not Copperweld or Alumoweld.
