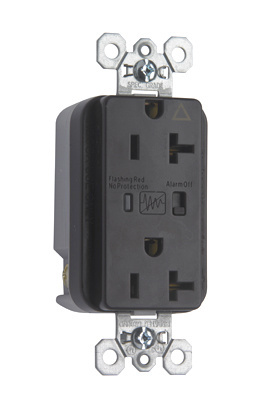

Product image for Pass & Seymour IG5362-SP Isolated Ground Surge Protective Duplex Receptacle, Back & Side Wire, 20A 125V - Brown
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour IG5362-SP Isolated Ground Surge Protective Duplex Receptacle, Back & Side Wire, 20A 125V - Brown

Manufacturer: Pass & Seymour / Legrand | Catalog # IG5362SP | Cooper Electric Part # 931887
$131.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
Isolated Ground Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 20amp 125volt, Light Almond.

Technical Information

Amperage
20 Amp
Applications
Commercial
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Grade
Specification
Indoor Outdoor
Indoor
Material
Nylon
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.70 L x 1.25 W x 3.75 H In
TC Connection
Back and side wire
Temperature Rating
Operating Temperature: -20degrees C to +55degrees C (-4degrees F to 131degrees F), Storage Temperature: -40degrees C to +85degrees C (-40degrees F to 185degrees F)
Type
Duplex
Voltage
125 Volt
Wattage
Electrical power is expressed in Amps and Volts.
Wire Size
14-10

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007861068
Class
IG
Color
Brown
Environmental Conditions
Flammability: UL94 V2
GTiN
00785007861068
Product UPC
78500786106
UNSPSC
39121406

Dimensions

Depth
1.225 Inch
Height
2.8 Inch
Width
1.75 in

Certifications and Compliance

Certifications
CULUS,UL
Country of Origin
Mexico
Features
  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors.
  • External pressure plate feature allows two conductors to be terminated by a single screw.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • UL Listed
  • cULus Listed
