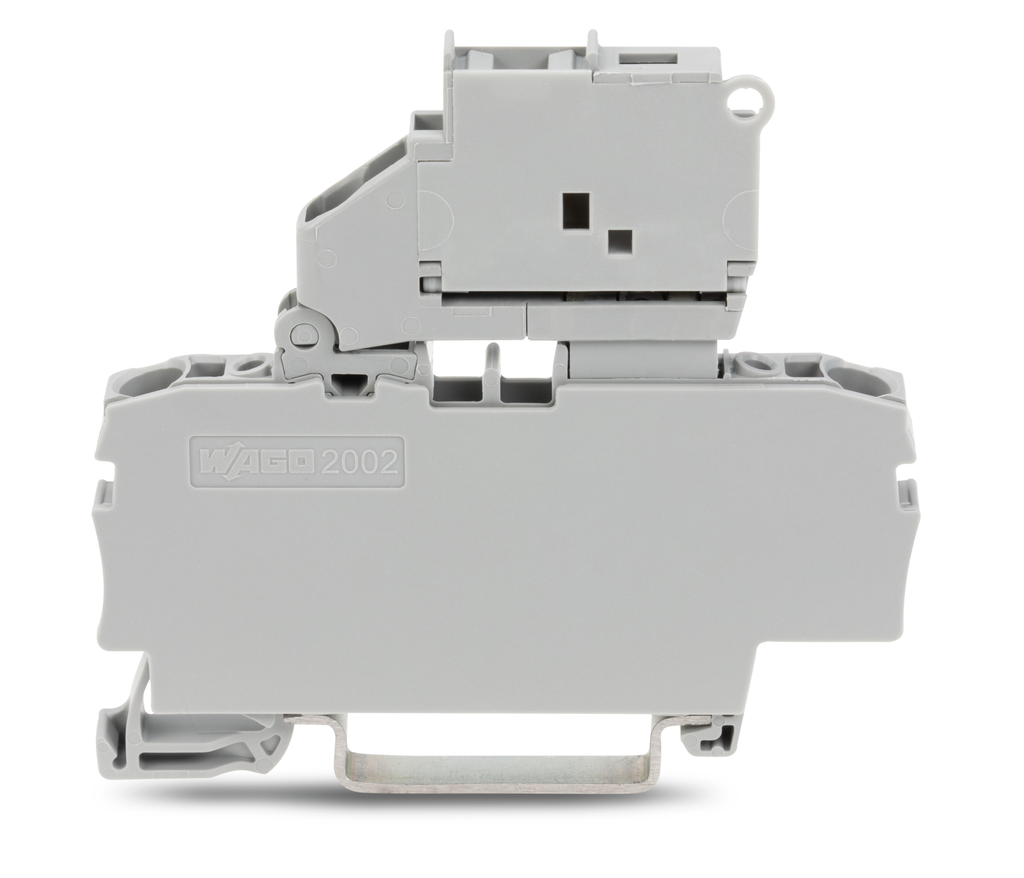

Product image for WAG 2002-1611 2 COND TJS PVT FUSE TERM GREY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

WAG 2002-1611 2 COND TJS PVT FUSE TERM GREY

Manufacturer: Wago | Catalog # 2002-1611 | Cooper Electric Part # 931796
$14.40/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
2-conductor fuse terminal block; with pivoting fuse holder; and end plate; for 5 x 20 mm miniature metric fuse; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm.; Push-in CAGE CLAMP®; 2,50 mm.; gray.

Technical Information

Actuator
Operating Tool
Amperage
10 Amp
Conductor Material
Copper
Conductor Size
12 AWG
Connection Type
Push-In Cage Clamp
Current
10 Amp
Flamability Class
V0
Insulation Material
Polyamide
Mounting Type
35 mm DIN Rail
Number of Connections
2
Number of Poles
2 Pole
Operating Temperature
105 degrees C
Spacing
6 mm
Strip Length
0.47 in
Temperature Rating
105 degrees C
Voltage
250 Volt

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
044918118631
Color
Gray
Product UPC
04491811863
Used With
5 x 20 mm Miniature Metric Fuse
Weight
13.239 g

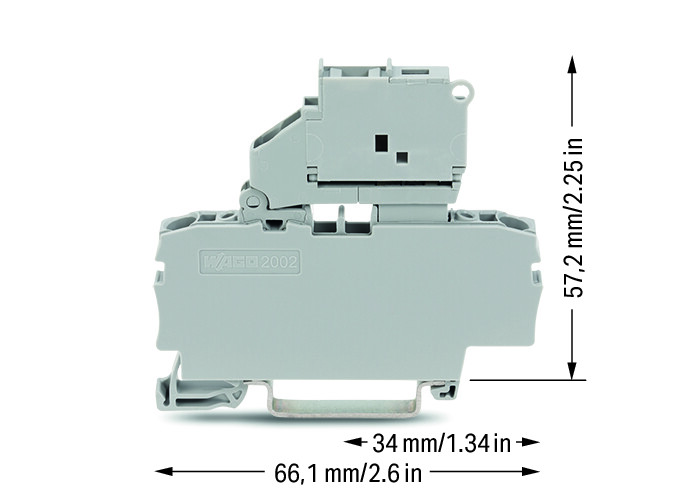

Dimensions

Depth
2.62 Inch
Height
2.62 Inch
Width
0.244 in

Certifications and Compliance

Country of Origin
China
Approvals
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • KIWA Netherlands B.V., ATEX, KIWA 17ATEX0030 U, EN 60079
  • Underwriters Laboratories Inc., AEx, E185892, UL 60079
  • CNEX, CCC, 2020312313000180, GB/T 3836.3
  • DEKRA Certification B.V., CCA, 71-120369, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL 7892, EN 60947
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • DEKRA Certification B.V., CSA, 1536069, C22.2 No. 158
  • KIWA Netherlands B.V., IECEx, IECEx KIWA 17.0014U Ex ec IIC Gc, EN 60079
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • WAGO GmbH & Co. KG, Railway, Railway Ready
