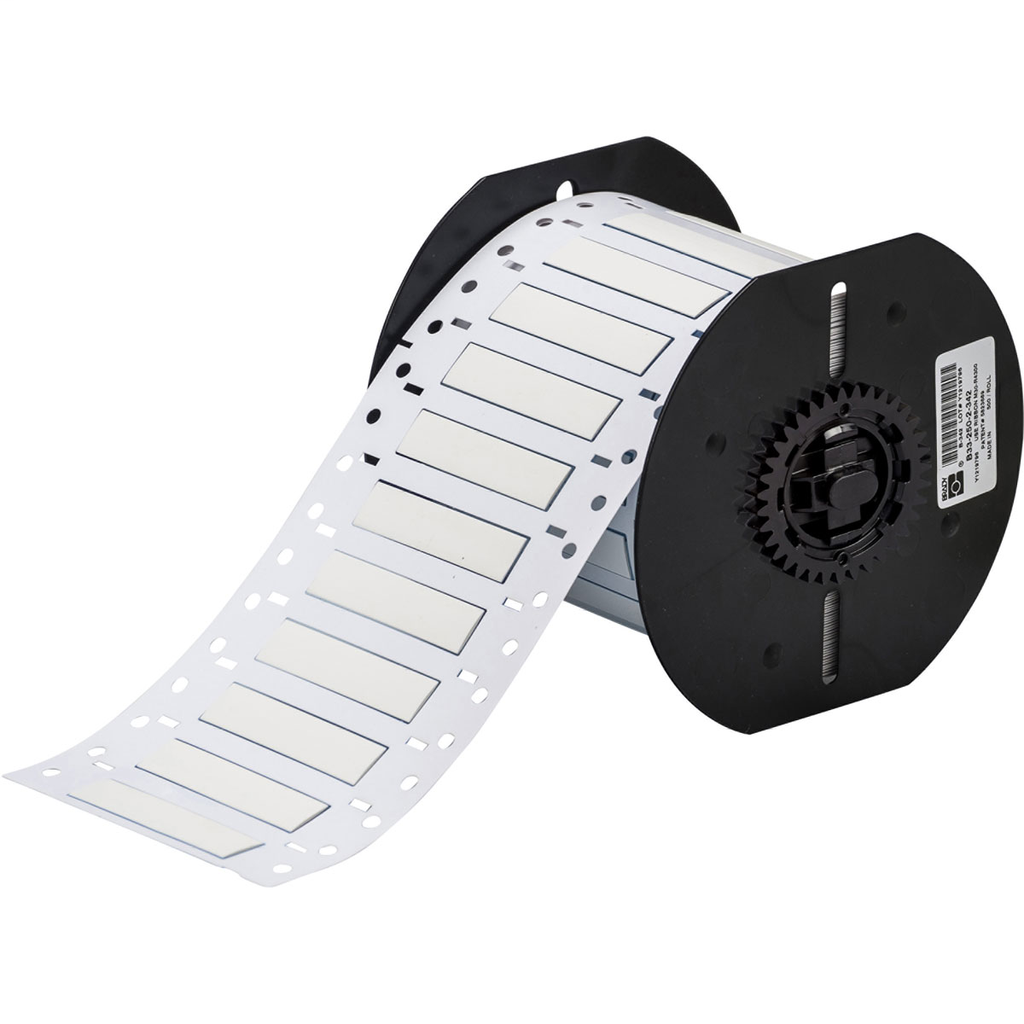

Product image for Brady B33-250-2-342 B33 Series PermaSleeve Single-sided Polyolefin Wire Marking Sleeves, 0.25" Dia x 2" W, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Brady B33-250-2-342 B33 Series PermaSleeve Single-sided Polyolefin Wire Marking Sleeves, 0.25" Dia x 2" W, White

Manufacturer: Brady Worldwide, Inc. | Catalog # B33-250-2-342 | Cooper Electric Part # 931415
$567.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.

Technical Information

Applications

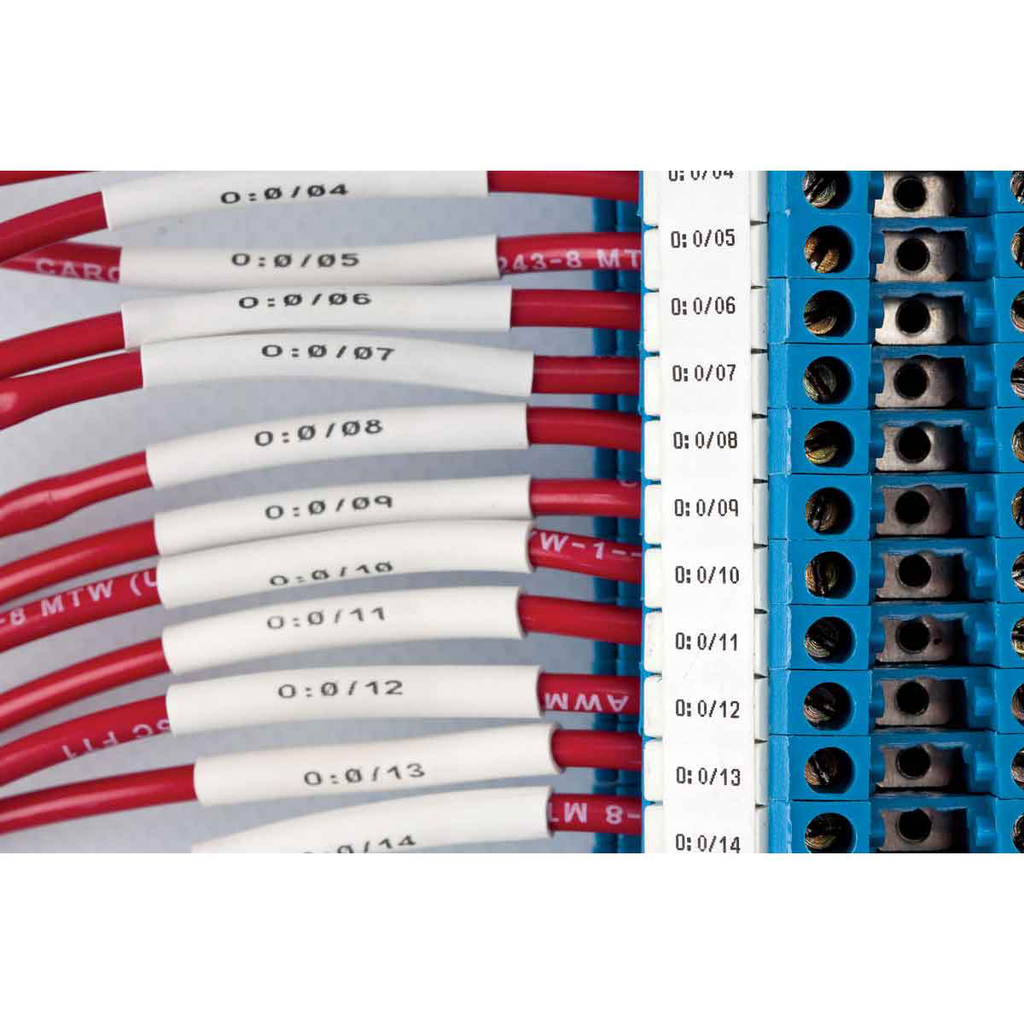

Cable and Wire Marking
Cable Size
16-8 AWG
Conductor Size
16-8 AWG
Material
Polyolefin
Max Operating Temperature
275 F
Max Temperature
135 degrees C
Min Operating Temperature
-67 F
Min Temperature
-55 degrees C
Shrink Ratio
3:1
Temperature Rating
-94 to 267 degrees F
Type
Roll, Single-Sided, Self-Extinguishing
Wire Size
16-8 AWG

Manufacturer Information

Brand
Brady Corporation
Sub Brand
BBP®33, PermaSleeve®

General Product Info

12-Digit UPC
662820968788
Color
White
Finish
Matte
GTiN
00662820968788
Product UPC
66282096878
Qty per Row
1
Used With
BBP® 33 Thermal Transfer Label Printer

Dimensions

Diameter
1/4 Inch
Height
0.439 Inch
Length
0.439 Inch
Roll Width
2 in
Width
2 in

Certifications and Compliance

CA Prop65 Warning
Y
Features
  • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
  • Fade-resistant and smudge-proof for superior aesthetic appearance
  • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
  • Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
