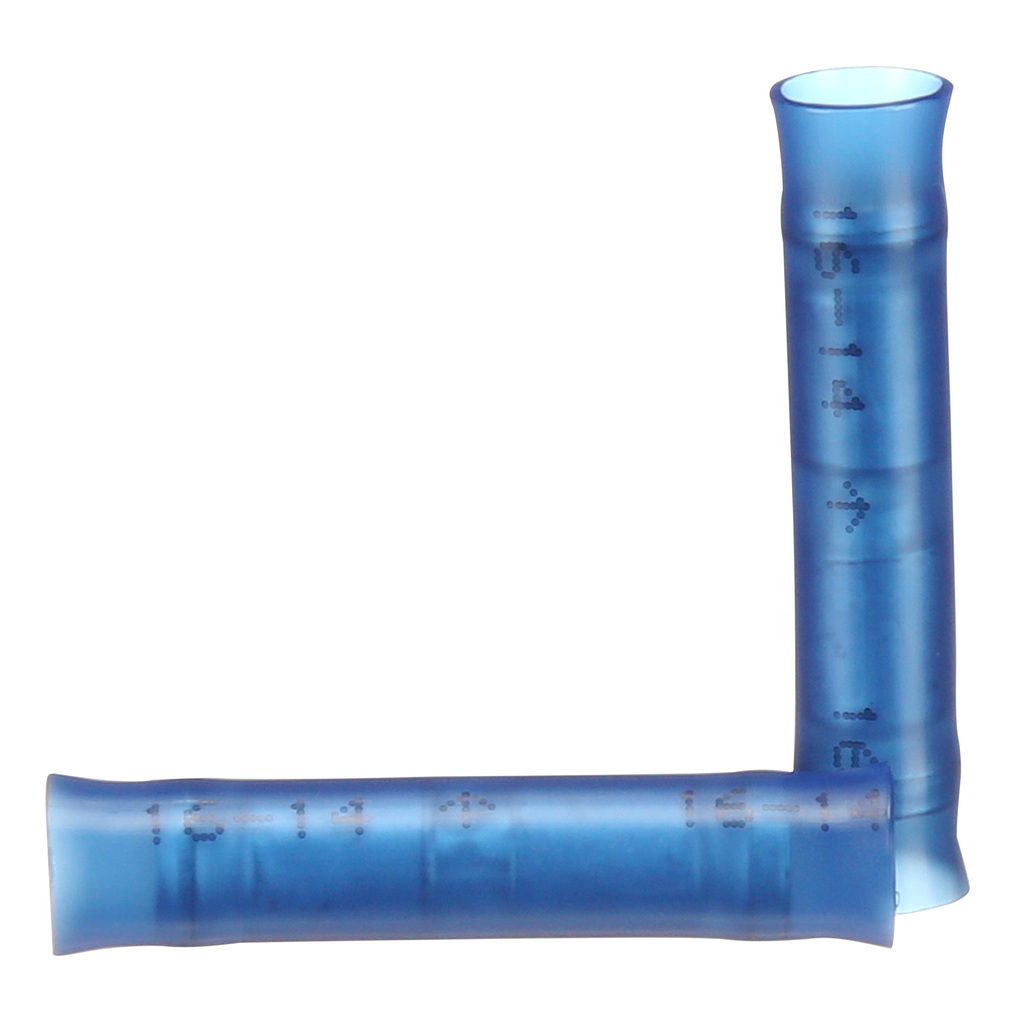

3M MNG18BCX Scotchlok Nylon Insulated Butt Connector (100/Bottle)

Manufacturer: 3M | Catalog # 7000133275 | Cooper Electric Part # 931055
$2.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
18 AWG
Connection Type
Butt
Insulation Material
Seamless Nylon Insulation
Material
Nylon
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Terminal Size
22 - 18 AWG
Terminal Style
Standard
Terminal Type
Butt Connectors
Type
Zero-Force Touch Button Accessory

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128586488
Color
Red
GTiN
00051128586488
Product Type
Connector
Product UPC
05112858648
Used With
Round Conductors

Dimensions

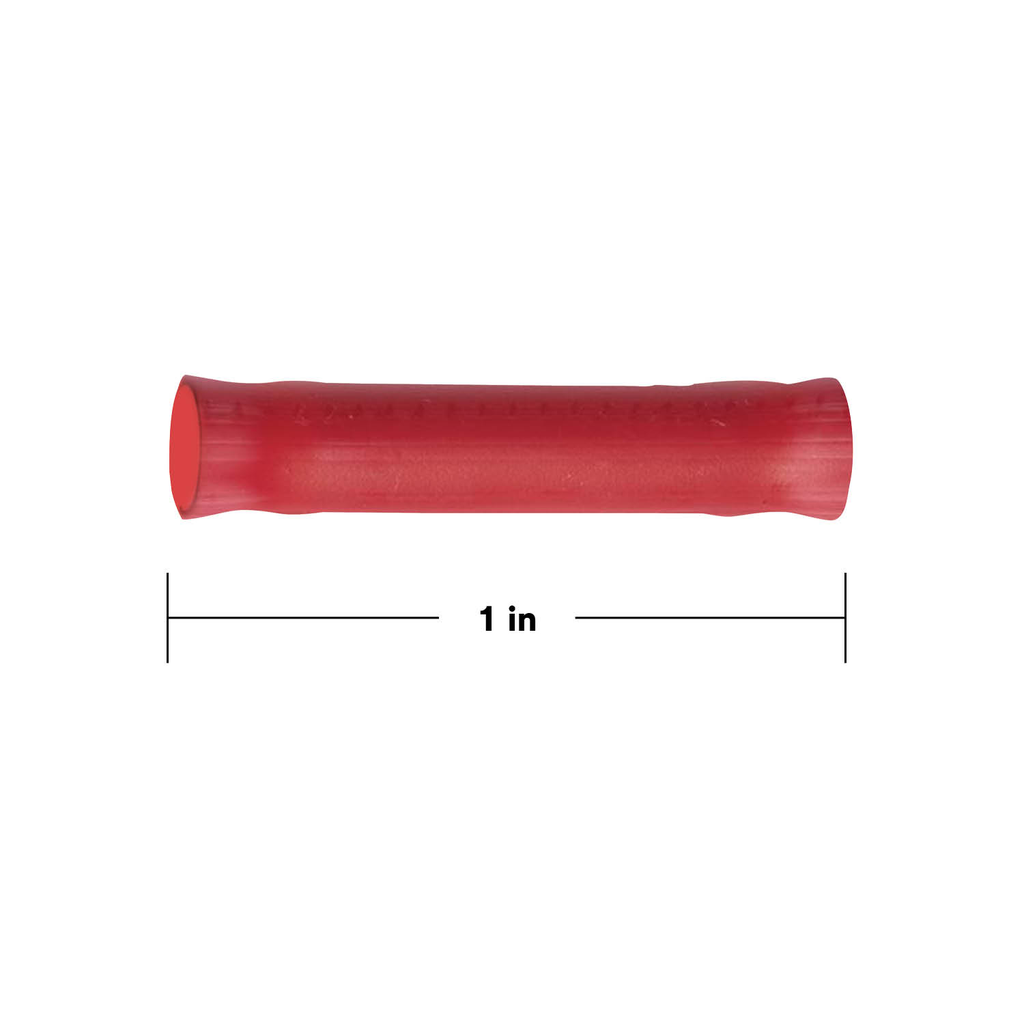

Length
1 Inch
Overall Length
1.0 in
Thickness
0.03 in

Certifications and Compliance

Country of Origin
USA
Features
  • SECURE FIT: Provides a secure fit with the butted barrel seam

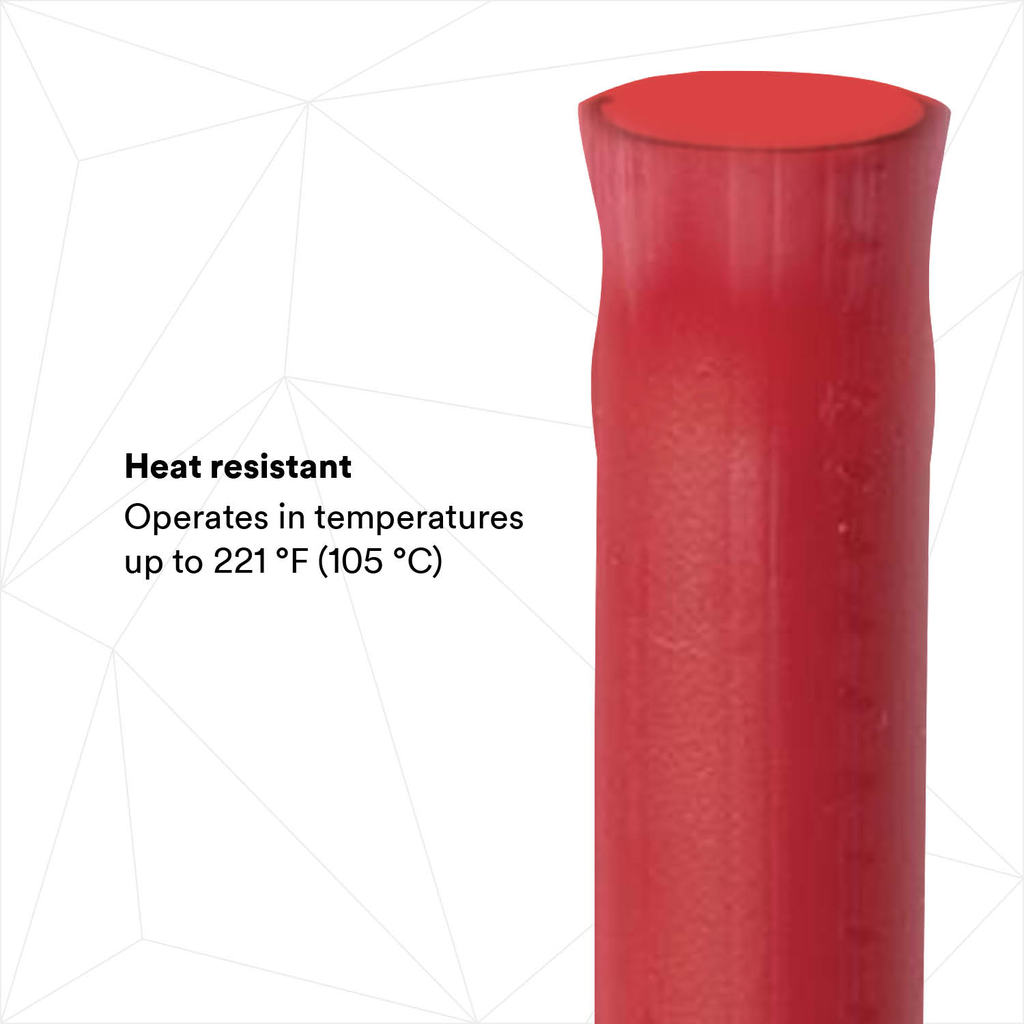

  • HEAT RESISTANT: Operates in temperatures up to 221 °F (105 °C)
  • DURABLE MATERIAL: Features tin plating, a copper terminal and nylon insulation
  • UL LISTED: Standard No. UL 486C, 3M File No. E23438
  • CSA CERTIFIED: Standard No. C22.2 No. 0.65, 3M File No. LR22190 and certified for use on stranded copper wires (AWG) only
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
