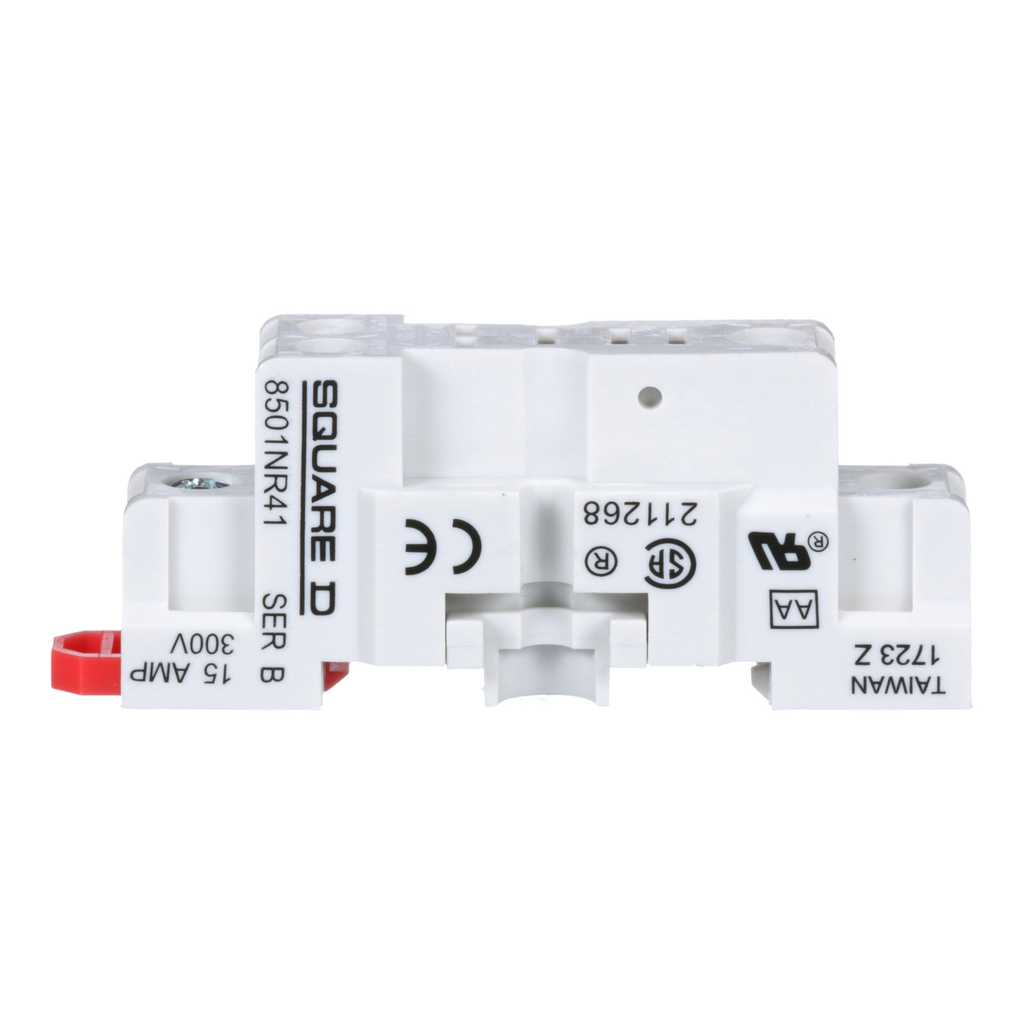

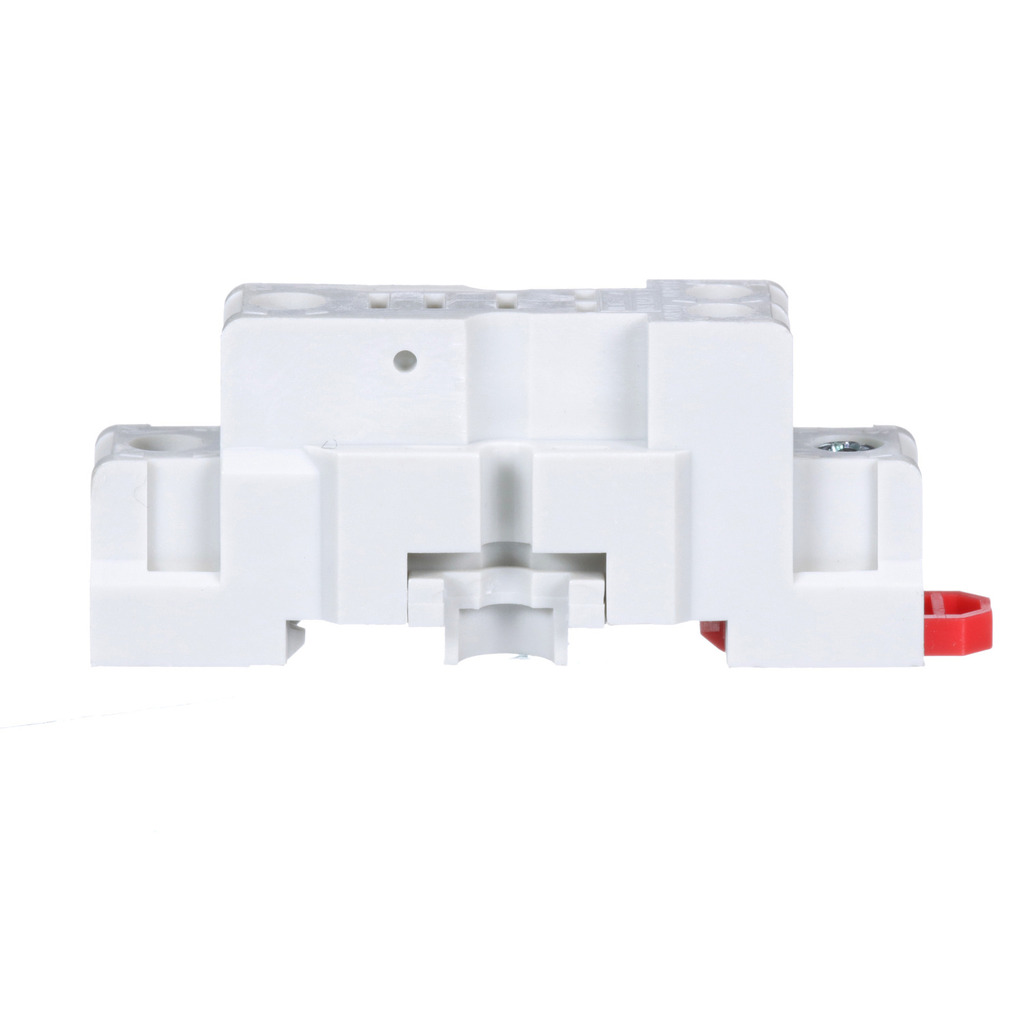

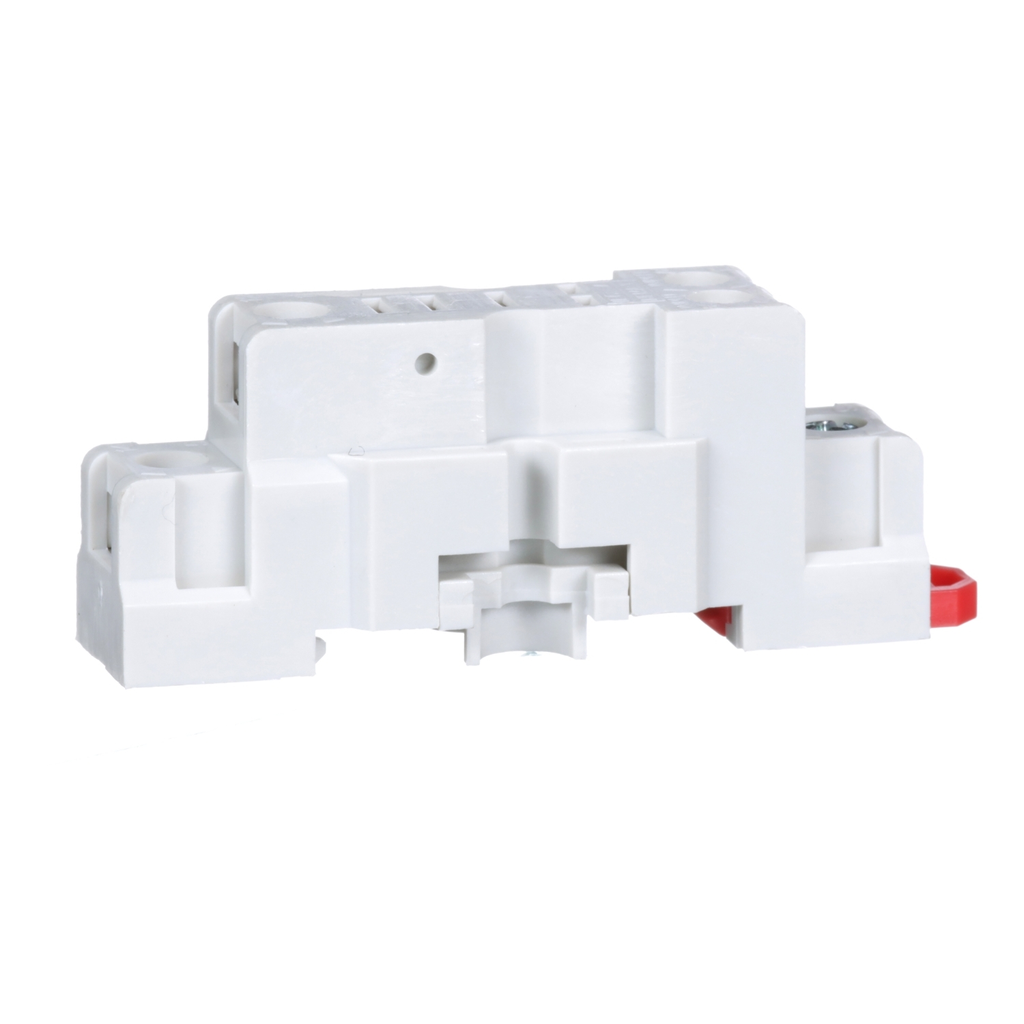

Square D 8501NR41 300 VAC 15 Amp Din Rail/Direct Panel Mount Double Tier Relay Socket

Manufacturer: Square-D / Schneider | Catalog # 8501NR41 | Cooper Electric Part # 93105
$41.55/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
4 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2

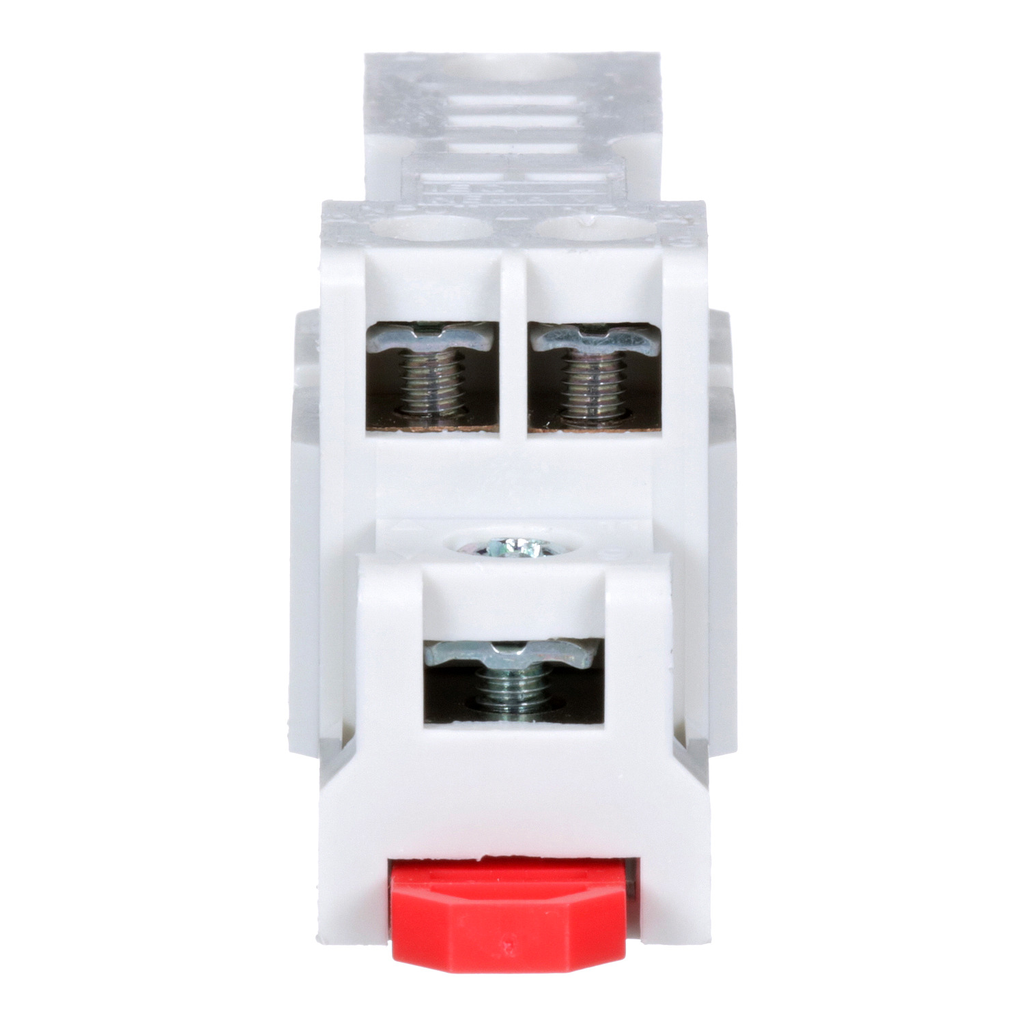

8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS41 or 8501RSD41 relay will plug into this relay socket which is designed for 5 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.

Technical Information

Amperage
15 Amp
Line Rated Current
15 A
Mounting Type
DIN Rail,Panel
Number of Pins
5
Type
Relay Socket

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901137276
GTiN
00785901137276
Product UPC
78590113727

Dimensions

Depth
28.95 mm
Height
73.02 mm
Warranty Length
18 mth
Width
20.06 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL Recognized
Country of Origin
Taiwan
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
