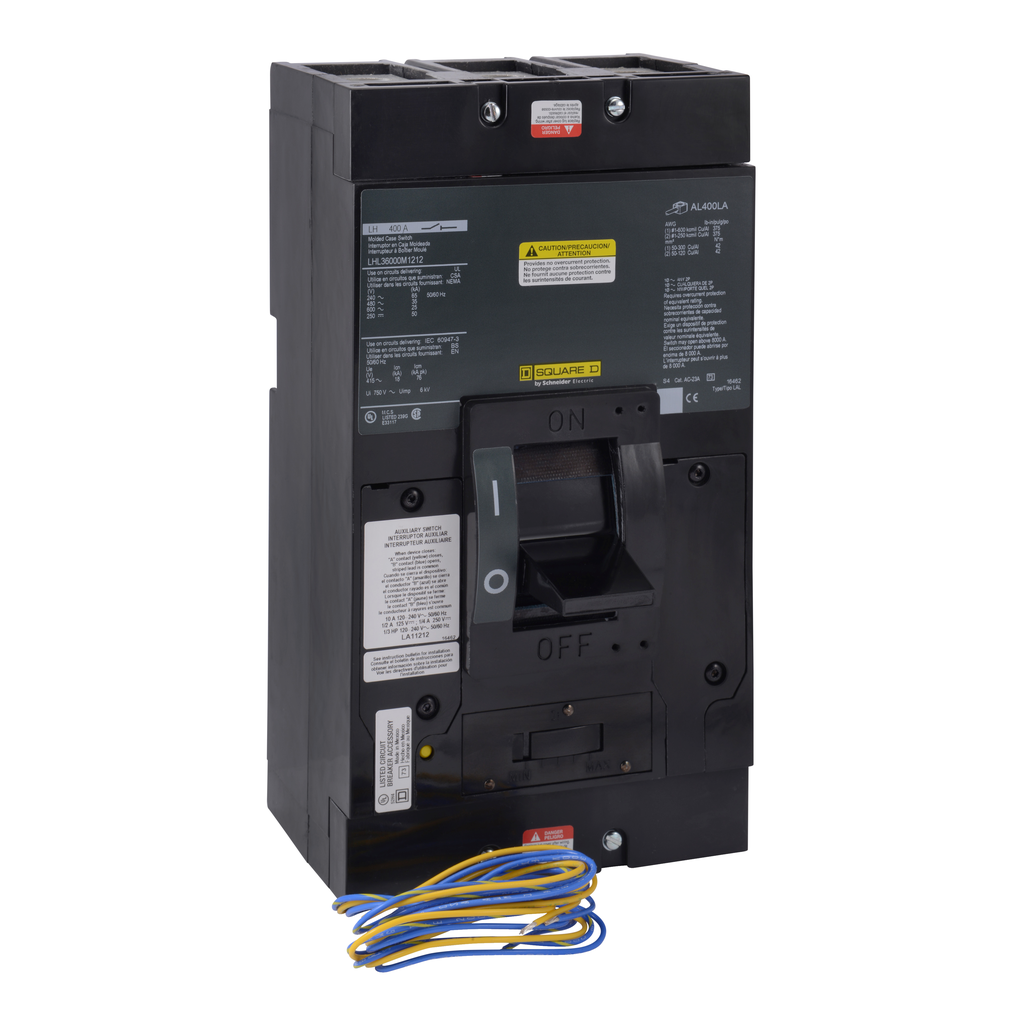

Product image for Square D LHL36000M1212 3-Pole 400 Amp 600 Volt Automatic Molded Case Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D LHL36000M1212 3-Pole 400 Amp 600 Volt Automatic Molded Case Switch

Manufacturer: Square-D / Schneider | Catalog # LHL36000M1212 | Cooper Electric Part # 928357
$7,056.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2
Automatic Molded Case Switch; Type Thermal Magnetic, High Interrupting; Frame Type L; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 400 Amp; Number of Poles 3; Interrupting Rating 25 Kiloamp at 600 Volt AC, 50 Kiloamp at 250 Volt DC; Terminal Type Line/Load Lug; Size 6 Inch Width x 5.84 Inch Depth x 11 Inch Height; Approval UL, CSA; RoHS/REACH Compliant; Mounting Type Unit; Phase Connection Type ABC; Includes Auxiliary Switch; Applicable Standard IEC

Technical Information

Amperage
400 Amp
Current
400 Amp
Frame
H
Interrupt Rating
25, 35, 65 kAIC
Line Rated Current
400 A
Mounting Type
Unit Mount
Number of Poles
3 Pole
Size
11 in
TC Connection
AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE
Terminal Type
AL400LA
Trip Point
4000-4000 A
Trip Range
2000 A,400 A,4000 A
Trip Type
THERMAL-MAGNETIC
Type
Automatic switch
Voltage
250 Volt

Manufacturer Information

Brand
PowerPact™

General Product Info

12-Digit UPC
785901613978
GTiN
00785901613978
Product UPC
78590161397

Dimensions

Depth
4 Inch
Height
12-1/2 Inch
Length
4 Inch
Warranty Length
18 mth
Width
6 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,IEC,NMX,UL Listed
Country of Origin
Mexico
Features
  • Square D LH Automatic Molded Case Switches Open Instantaneously at a Factory Preset Magnetic Trip Point to Protect the Switch from High Fault Currents
  • They May Be Interlocked with Another Switch or Circuit Breaker to Form a Source Changeover System
  • HACR Rated
  • RoHS/REACH Compliant
  • Mercury-Free
  • PVC-Free
  • Green Premium Product
Additional Information
  • Mounting Type Unit
  • Phase Connection Type ABC
  • Includes Auxiliary Switch
  • Applicable Standard IEC
