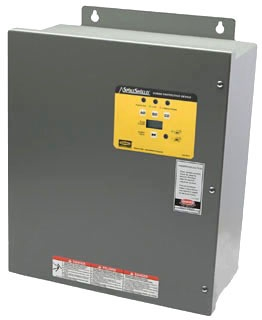

Product image for Hubbell HBL4P160A SPD PANEL, 120KA, 3PH 120/208V, A VERSION
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL4P160A SPD PANEL, 120KA, 3PH 120/208V, A VERSION

Manufacturer: Hubbell Wiring Device | Catalog # HBL4P160A | Cooper Electric Part # 928113
$7,220.07/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Surge Protective Devices, SPIKESHIELDPanel Style, 120KA, 3-Phase120/208V AC

Technical Information

Applications
Commercial,Industrial,Institutional,Residential
Frequency
50 Hz
Material
Steel
Mounting Type
Surface
Operating Temperature
-40 Degrees F to 149 Degrees F (-40 C to 65 C)
Response Time
5n s
Size
12 in
TC Connection
Wire Lugs
Type
Service and Branch Panel Protection
Voltage
120/208 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SpikeShield

General Product Info

12-Digit UPC
783585407173
Class
C
Color
Gray
GTiN
00783585407173
Product UPC
78358540717

Dimensions

Width
15.600 in

Certifications and Compliance

Country of Origin
USA
Features
  • Thermal Fuse Prevents the MOV's from Overheating When Exposed to High Current Levels
  • Allows Installation in Areas with Space Restrictions, Minimizes Connecting Lead Length Which Reduces Impedance Ensuring Improved Clamping Performance
  • Protects Equipment Under the Worst Electrical Conditions
  • Assures Positive Connection and Allows for Easy Replacement
  • Prevents Excessive Panel Damage Caused by Internal Short Circuits or Component Failure
  • Provides Visual and Audible Indication of Panel Status, Green for Operational, Red for Module Failure, Audible Alarm for Module Failure with Silencing
  • Provides Uniform Clamping Throughout the Sine Wave
Additional Information
  • Includes Red/Green LED, Diagnostic Test Switch, Dry Contact, Audible Alarm, Surge Counter
