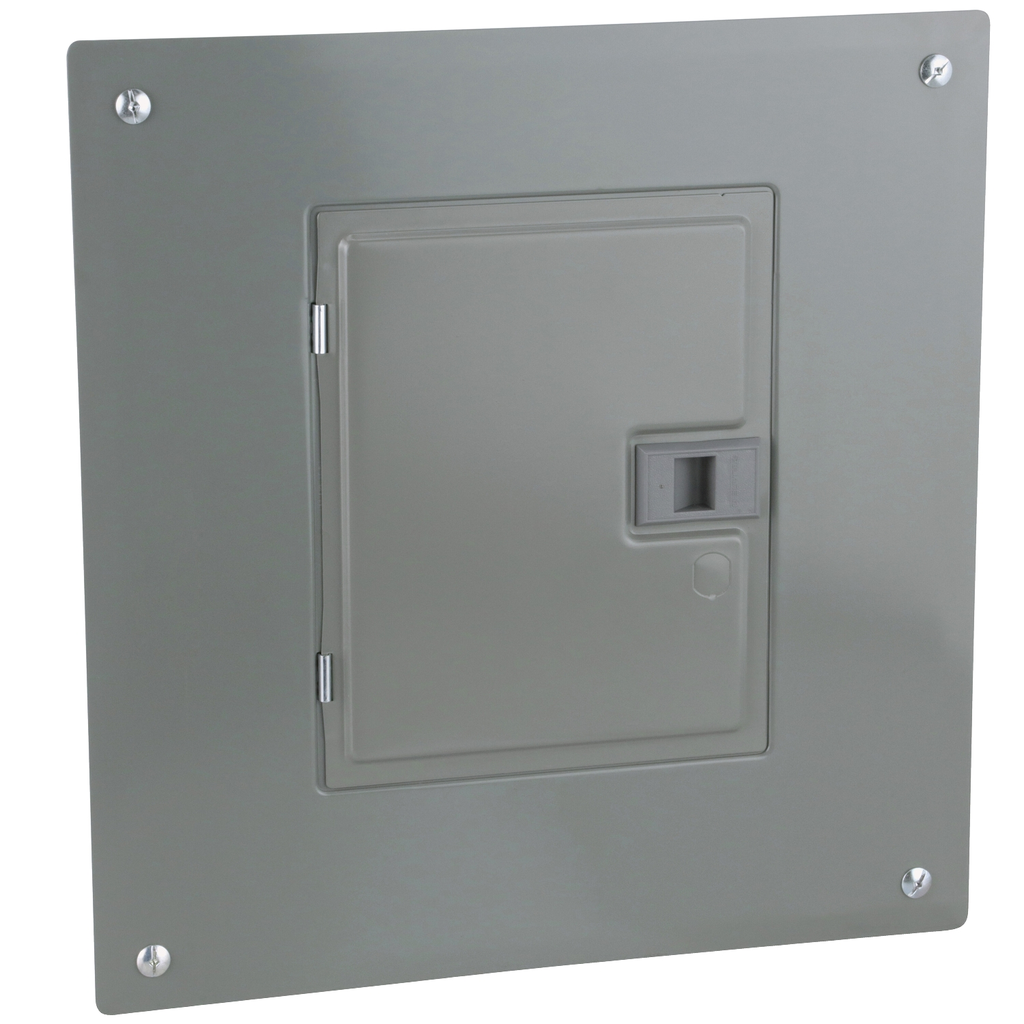

Square D HOM816M100PC 120/240 VAC 100 Amp 1-Phase 8-Space 16-Circuit NEMA 1 Load Center with Cover

Manufacturer: Square-D / Schneider | Catalog # HOM816M100PC | Cooper Electric Part # 927163
$153.97/ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Main Breaker Main Lug
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure

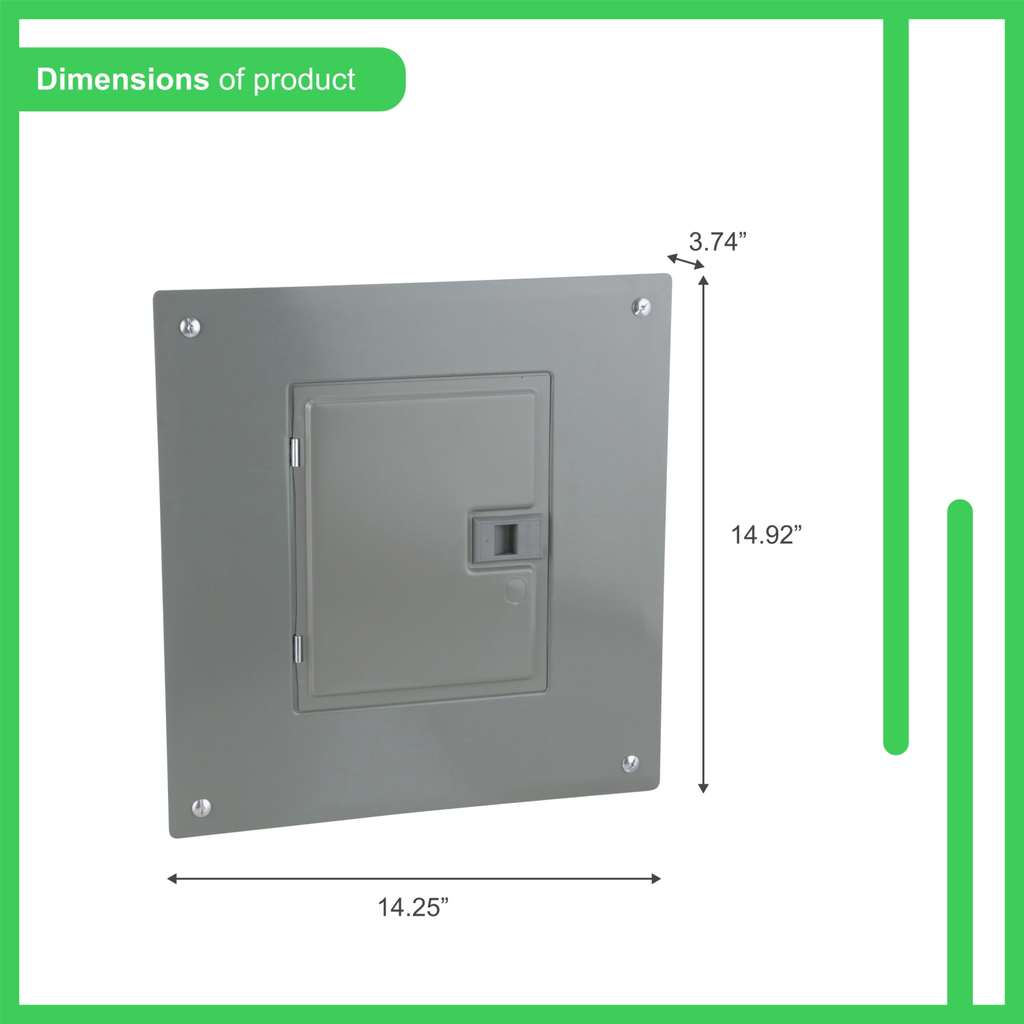

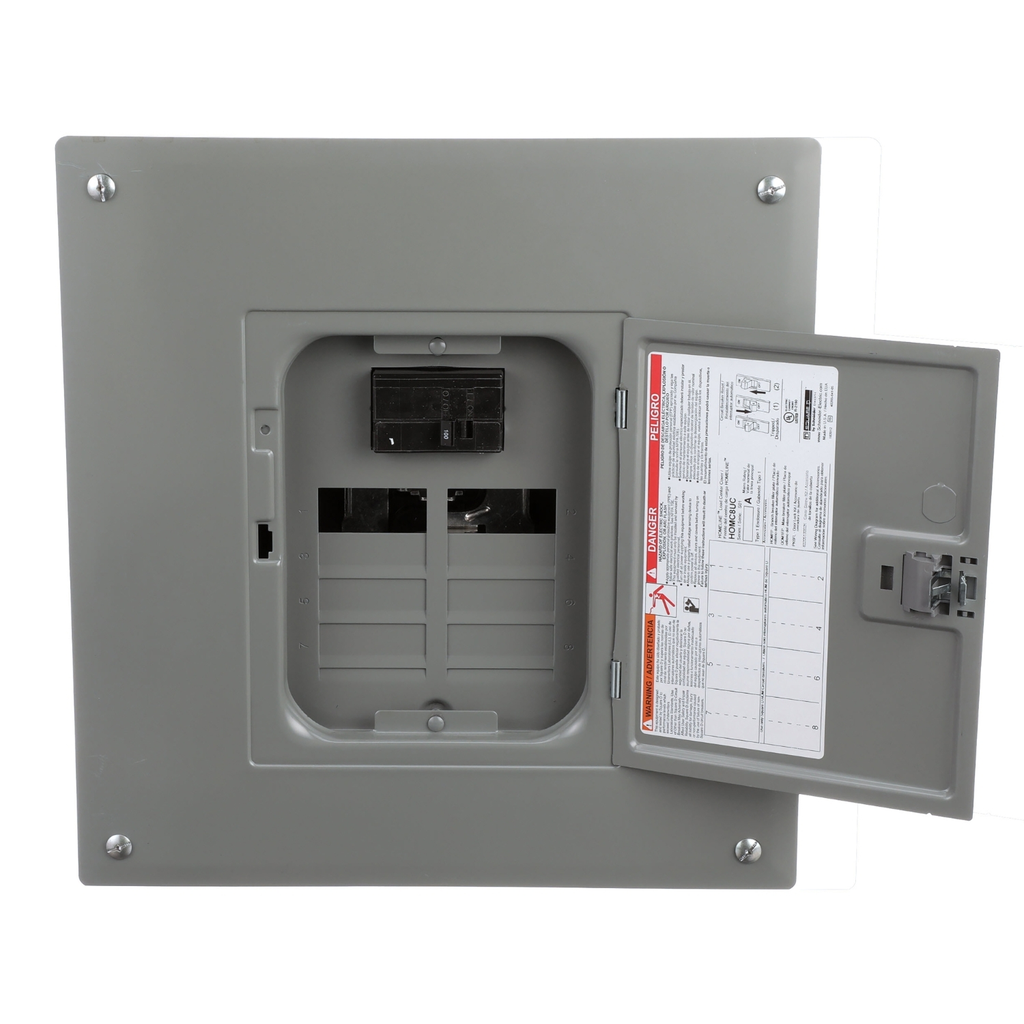

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 100A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 8 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or aluminum wire. This Homeline load center has a height of 14.92 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.

Technical Information

Amperage
100 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Bus Rating
TIN PLATED ALUMINIUM
Cable Size
AWG 6...AWG 1 COPPER OR ALUMINIUM
Conductor Size
6-1 AWG
Cover Type
Combination Flush/surface Cover
Current
100 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
22 kAIC
Line Rated Current
100 A
Material
Tin Plated Aluminium: Busbar
NEMA Size
1
Number of Circuits
16
Number of Phases
1 Phase
Number of Spaces
8
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA
Surface Finish
Baked Enamel Gray
Type
Load Center
Voltage
120/240 Volt
Wire Size
AWG 6...AWG 1 copper or aluminium

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901974017
Finish
Gray
GTiN
00785901974017
Product UPC
78590197401

Dimensions

Depth
95 mm
Height
379 mm
Width
362 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E-6294
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • HOM120CP
  • HOM250PSPD
  • HOMCRBGK1C
  • HOMFPCP
  • PK9GTA
  • PK9GTABP
  • QOM70VH
  • QOM80VH
  • QOM90VH
  • HOM115PCAFIC
  • HOM2175SB
  • PK7GTA
  • HEPD25
  • HOM120PDFC
  • HEPD50
  • HOM230CP
  • HEPD80
  • HOM115CP
  • HEPD25MKF
  • HOM120PCAFIC
  • HEPD58MKF
  • HOM250CP
  • HOM240CP
  • HOM115PDFC
