Square D HOM3060M150PC 120/240 VAC 150 Amp 1-Phase 30-Space 60-Circuit NEMA 1 Load Center

Manufacturer: Square-D / Schneider | Catalog # HOM3060M150PC | Cooper Electric Part # 927134
$822.84/ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Main Breaker Main Lug
1 available

For Pick Up

at Ocean Opens Monday 7:00am ET
37 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure

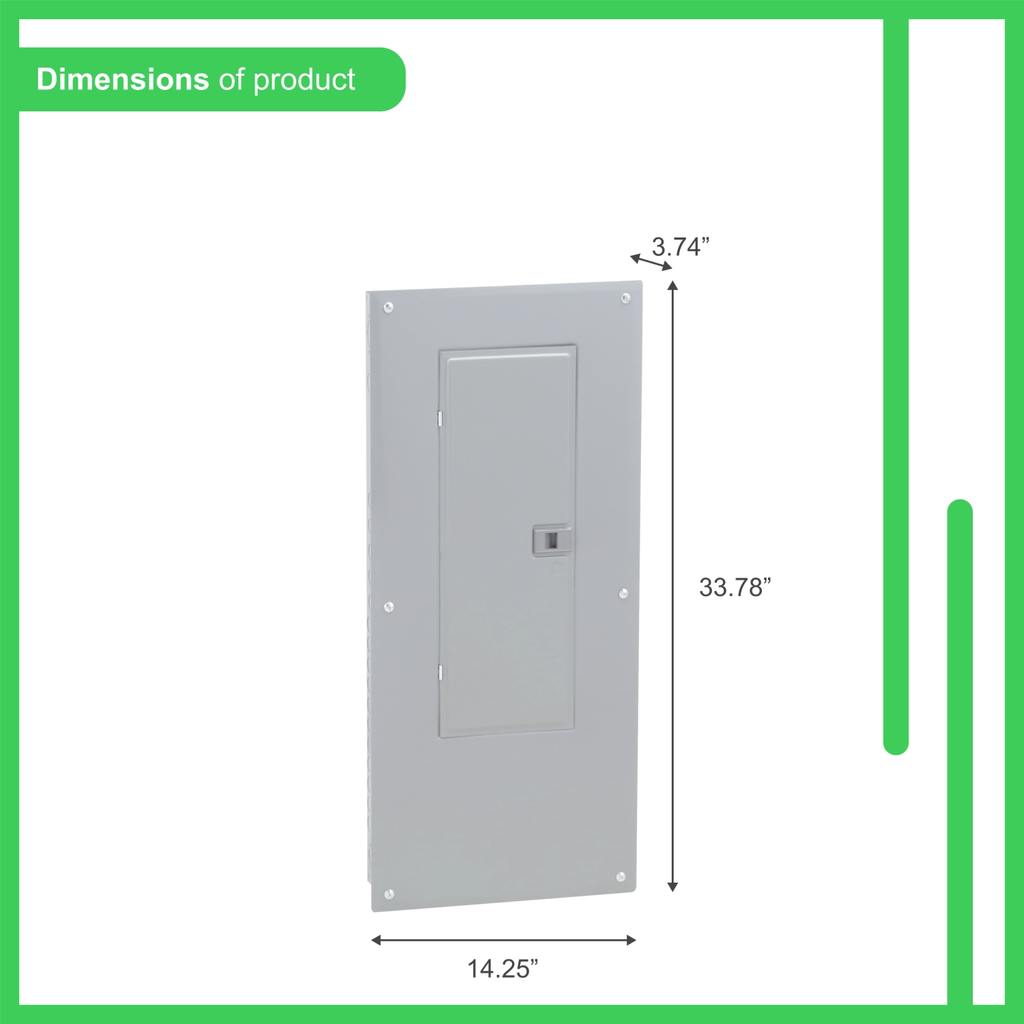

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 150A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 30 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 33.77 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.

Technical Information

Amperage
150 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Bus Rating
TIN PLATED ALUMINIUM
Cable Size
AWG 4...250 KCMIL ALUMINIUM/COPPER
Conductor Size
4 AWG-250 kcmil
Cover Type
Combination Flush/surface Cover
Current
150 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
22 kAIC
Line Rated Current
150 A
Material
Tin Plated Aluminium: Busbar
NEMA Size
1
Number of Circuits
60
Number of Phases
1 Phase
Number of Spaces
30
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA
Surface Finish
Baked Enamel Gray
Type
Load Center
Voltage
120/240 Volt
Wire Size
AWG 4...250 kcmil aluminium/copper NULL

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901977698
Finish
Gray
GTiN
00785901977698
Product UPC
78590197769

Dimensions

Depth
95 mm
Height
858 mm
Width
362 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E-6294
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • HOM120CP
  • HOM2150BB
  • HOM2200BB
  • HOM250PSPD
  • HOMC30UC
  • HOMCGK2C
  • HOMFPCP
  • PK23GTA
  • QOM2150VH
  • HOM115PCAFIC
  • HOM2175SB
  • HOMC30UCW
  • HEPD25
  • HOM120PDFC
  • HEPD50
  • HOM230CP
  • HEPD80
  • HOM115CP
  • HEPD25MKF
  • HOM120PCAFIC
  • HEPD58MKF
  • HOM250CP
  • HOM240CP
  • HOM115PDFC
