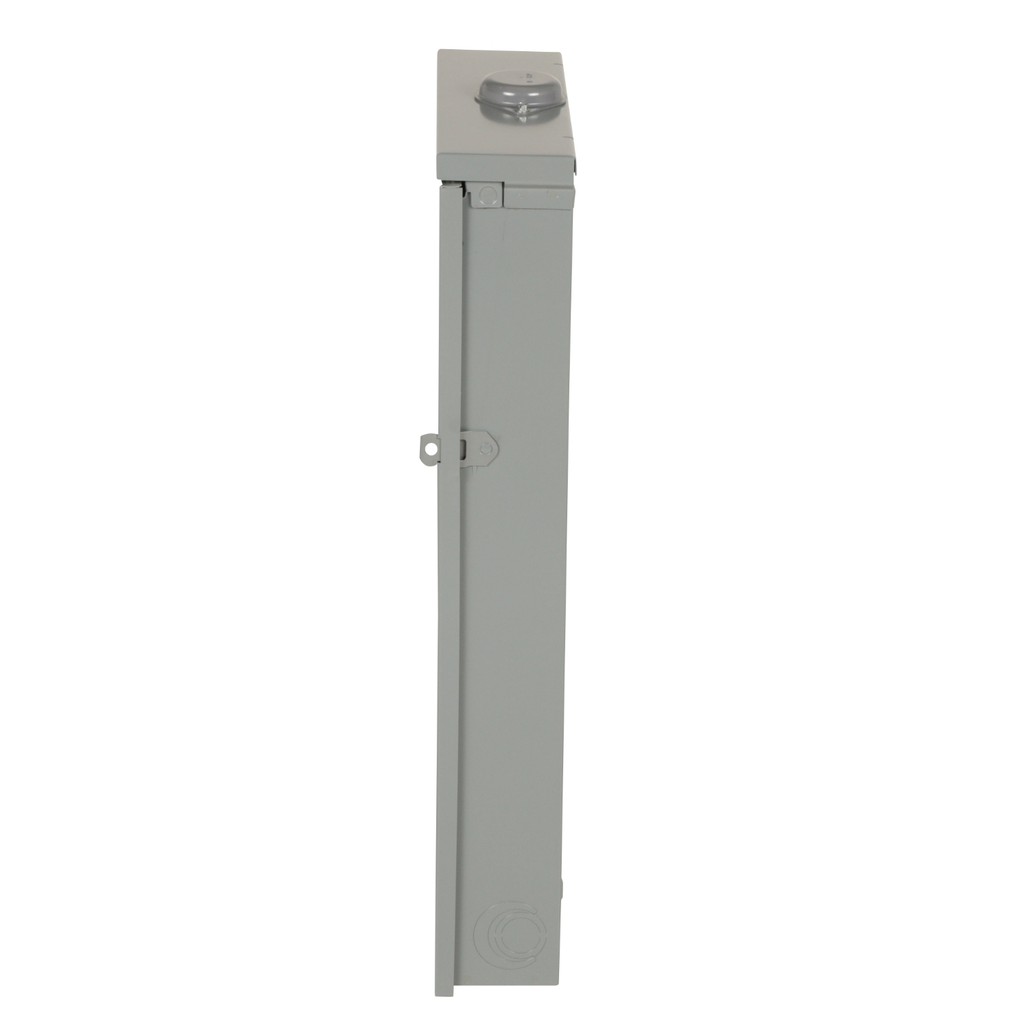

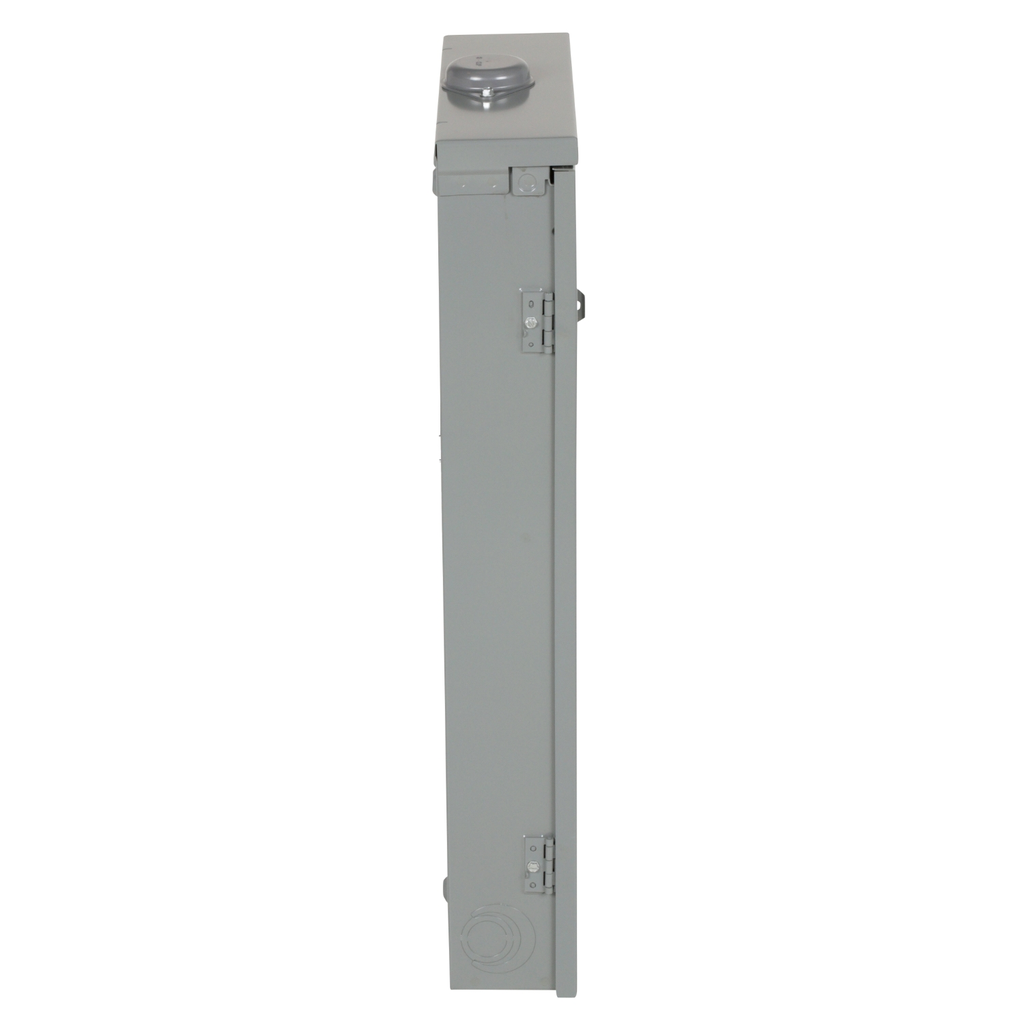

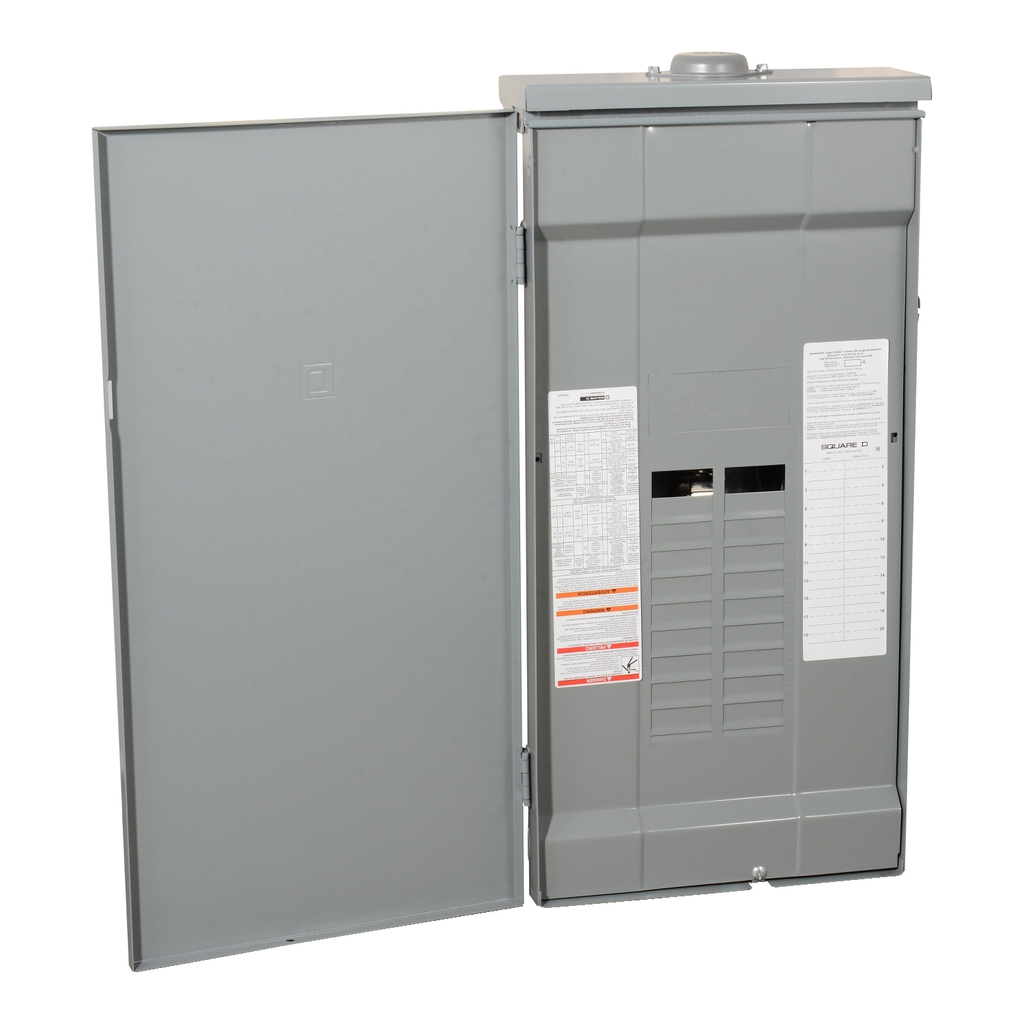

Square D HOM2040L225PRB 120/240 VAC 225 Amp 1-Phase 20-Space 40-Circuit NEMA 3R Load Center

Manufacturer: Square-D / Schneider | Catalog # HOM2040L225PRB | Cooper Electric Part # 927108
$275.34/ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Main Breaker Main Lug
0

Not Available for Pickup at Ocean Closes 6:00pm ET
9 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 225A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 20 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire. This Homeline load center has a height of 29.84 inches, a width of 14.76 inches, and depth of 4.52 inches. Homeline load centers are UL Listed.

Technical Information

Amperage
225 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Bus Rating
TIN PLATED ALUMINIUM
Cable Size
AWG 4...250 KCMIL COPPER-AWG 4...300 KCMIL ALUMINIUM
Conductor Size
4 AWG-300 kcmil (AL)/4 AWG-250 kcmil (CU)
Cover Type
Surface Cover
Current
225 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Interrupt Rating
10 kAIC
Line Rated Current
225 A
Material
Tin Plated Aluminium: Busbar
NEMA Size
3R
Number of Circuits
40
Number of Phases
1 Phase
Number of Spaces
20
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
Surface Finish
Baked Enamel Gray
Type
Load Center
Voltage
120/240 Volt
Wire Size
AWG 4...250 kcmil copper;AWG 4...300 kcmil aluminium

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901977384
Finish
Gray
GTiN
00785901977384
Product UPC
78590197738

Dimensions

Depth
115 mm
Height
758 mm
Width
375 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E-6294
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • HOM115PCAFIC
  • HOM250PSPD
  • HOMC20UC
  • PK18GTA
  • HOM120PDFC
  • HOM2175SB
  • HEPD25
  • HOM120PCAFIC
  • HEPD50
  • HOM120CP
  • HEPD80
  • HOM230CP
  • HEPD25MKF
  • HOM115PDFC
  • HEPD58MKF
  • HOM115CP
  • QOM2225VH
