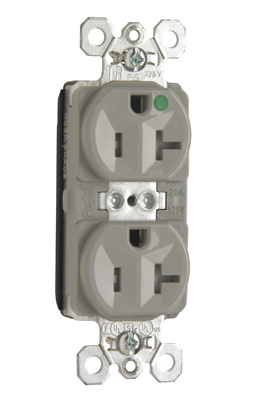

Product image for Pass & Seymour PTTR8300-GRY Hospital Grade Duplex Receptacle, 20A - Gray
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour PTTR8300-GRY Hospital Grade Duplex Receptacle, 20A - Gray

Manufacturer: Pass & Seymour / Legrand | Catalog # PTTR8300GRY | Cooper Electric Part # 926984
$33.87/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
PlugTail Tamper-Resistant Hospital Grade Duplex Receptacle, Back & Side Wire, 20amp 125volt, BrownFor detailed PlugTail information, visit our PlugTail Headquarters.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Grade
Hospital
Material
Thermoplastic
NEMA
5-20R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
5.13x2x1.4
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007013412
Color
Gray
Finish
Matte
GTiN
00785007013412
Product UPC
78500701341
UNSPSC
39121406

Dimensions

Depth
5/8 Inch
Height
3.281 Inch
Width
1.5 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • cULus Listed
  • Federal Spec Listed
Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects
  • Brushed finish.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
