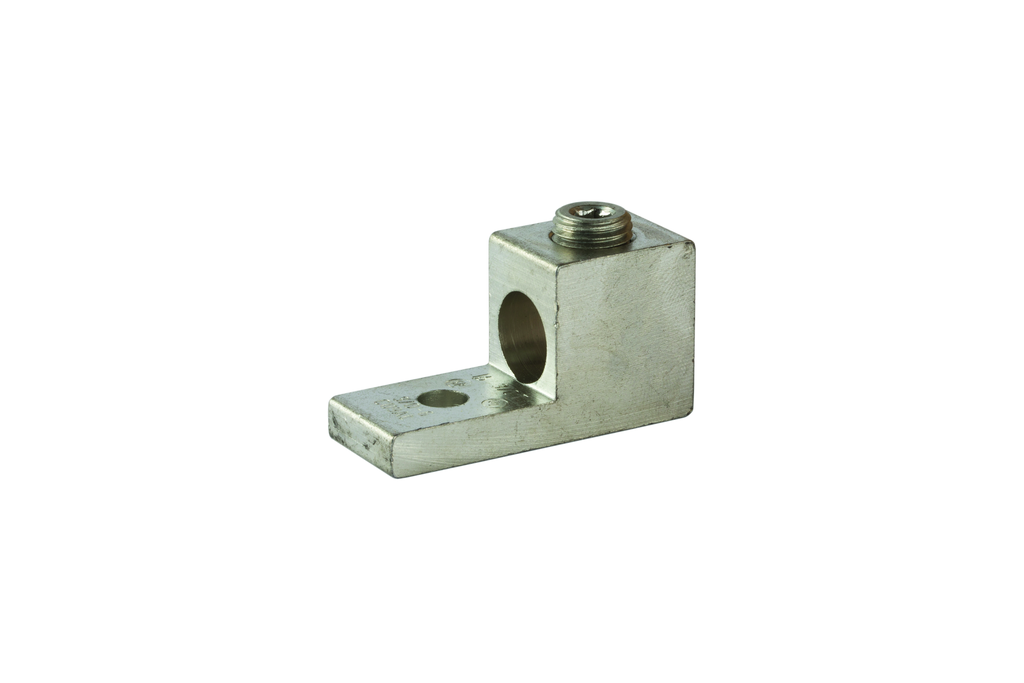

Product image for NSI 300T 0.33 Inch 6 AWG to 300 MCM Aluminum 1-Port 1-Hole Dual Rated Lug
Email

NSI 300T 0.33 Inch 6 AWG to 300 MCM Aluminum 1-Port 1-Hole Dual Rated Lug

Manufacturer: NSi | Catalog # 300T | Cooper Electric Part # 925910
$8.14 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
1 Port Aluminum Lug for 300 MCM - 6 AWG: Aluminum Dual Rated Single Lugs with a 5/16" bolt size are versatile and the reuseable set screw connectors are made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .

Technical Information

Applications
Wire Termination
Bolt Size
5/16 IN
Conductor Size
6 AWG-300 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
1
Number of Conductors
1,1
Number of Poles
1 Pole
Number of Ports
1
Standard
CULUS
Temperature Rating
90 degrees C
Type
Aluminum Single Lug
Voltage
600 Volt
Wire Size
6 AWG-300 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001078
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001078
Product UPC
66238100107

Dimensions

Height
1.13 Inch
Length
2 Inch
Warranty Length
1 yr
Width
0.88 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
Features
  • Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • Temperature Rating 90 degrees C
  • Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
