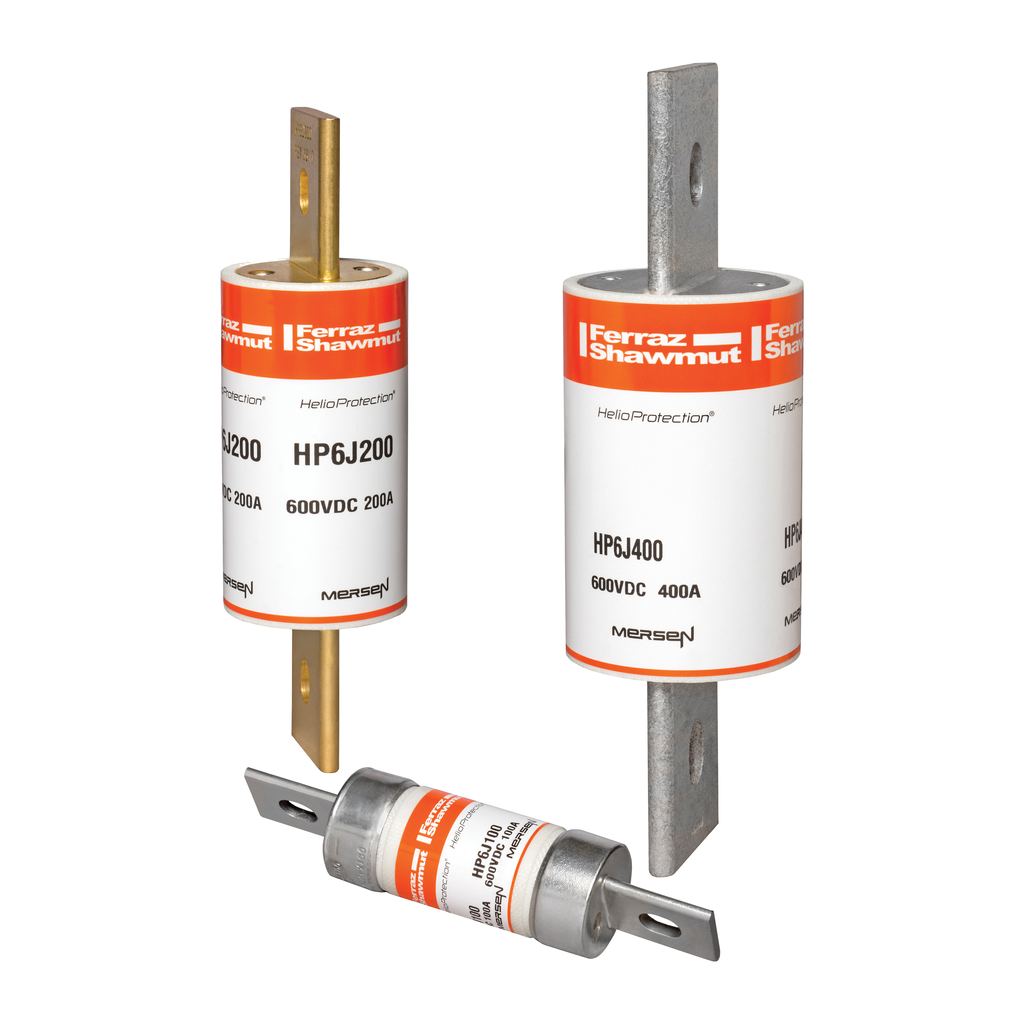

Product image for Mersen HP6J225 600VDC 225A CLASS J
Email

Mersen HP6J225 600VDC 225A CLASS J

Manufacturer: Mersen | Catalog # HP6J225 | Cooper Electric Part # 925573
$724.35/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Mersen’s HP6J photovoltaic (PV) fuse series was engineered specificallyfor DC Recombiner Boxes in the protection of 600VDC photovoltaicsystems. Its enhanced construction makes it ideal for continuoustemperature and current cycling withstand adding to system longevity.The 600VDC rated HP6J designed for low minimum breaking capacitycapabilities of 1.35 times the fuse rated current value allows for safe circuitinterruption under typical low fault current conditions produced by PVarrays. Protect your off-grid or grid tied PV system from unexpectedground faults and line faults using Mersen’s HelioProtection® fuse line.

Technical Information

Amperage
225 Amp
Applications
Re-combiner (sub-combiner, array combiner, master combiner) Inverter DC input protection Battery charge controllers
Fuse Class
Photovoltaic
Insulation Material
GMG
Interrupt Rating
10 kAIC
Max Operating Temperature
80 degrees C
Mounting Type
Bolted,Clip
Rated Voltage DC
600 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
Photovoltaic Fuses
Voltage
600 VDC

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Helio Protection

General Product Info

12-Digit UPC
782001426682
GTiN
10782001426689
Product UPC
78200142668
Weight
1.75 lb

Dimensions

Diameter
2.13 Inch
Length
7.13 Inch

Certifications and Compliance

Country of Origin
Mexico
Features
  • Smallest footprint in the industry
  • UL class J dimensions
  • Low fault current interrupting capability
  • Durable construction for enhanced system longevity
  • Temperature cycle withstand capability
  • Guaranteed operation at temperature extremes
  • Industrys first UL Listed Solution
  • Globally accepted
Certifications
  • UL Listed to Standard UL2579 File E333668
  • CSA Component Certified C22.2
