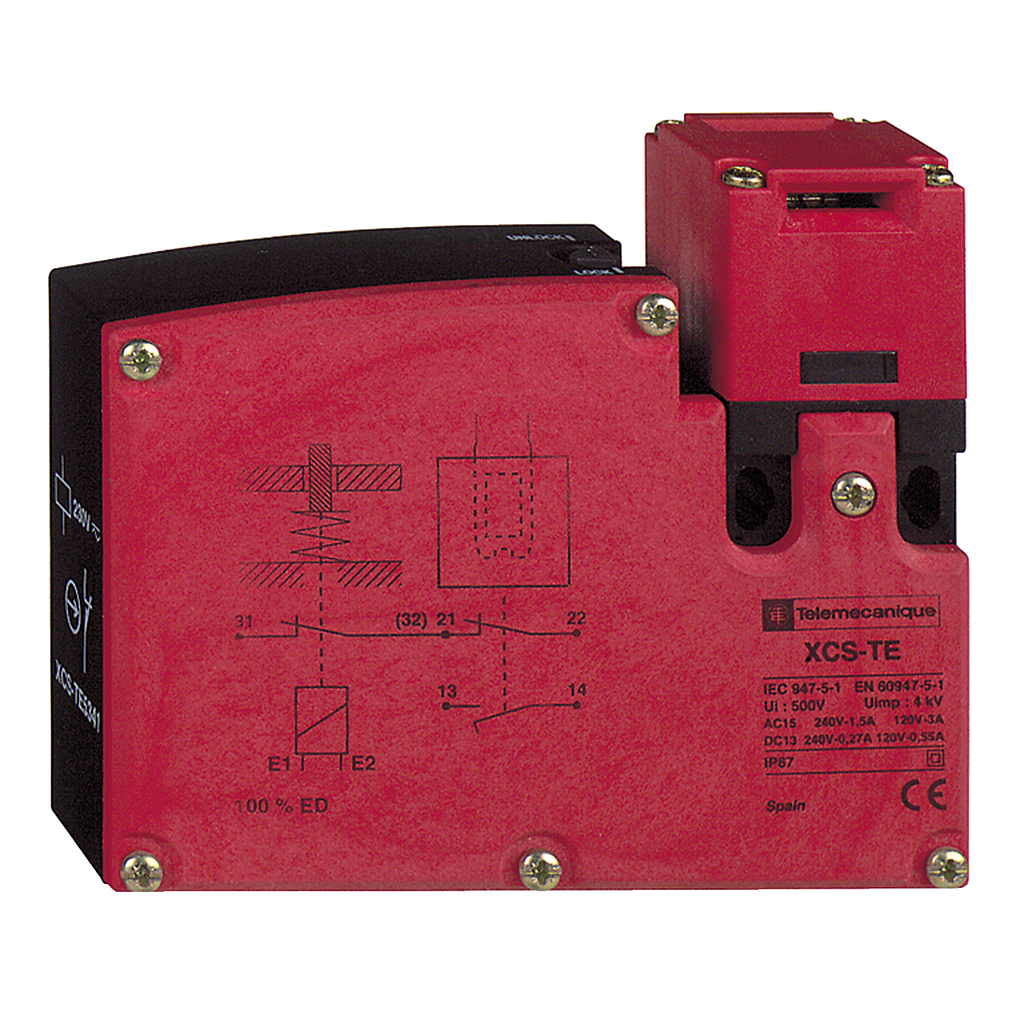

Product image for TES XCSTE7331 Safety switch, TES Safety switches XCS, plastic XCSTE, 2 NC, slow break, 1 entry tapped Pg 11 -120 V
Image thumbnail 0
Image thumbnail 1
Email

TES XCSTE7331 Safety switch, TES Safety switches XCS, plastic XCSTE, 2 NC, slow break, 1 entry tapped Pg 11 -120 V

Manufacturer: TES Electric | Catalog # XCSTE7331 | Cooper Electric Part # 925572
$281.75/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Safety switch, Telemecanique Safety switches XCS, plastic XCSTE, 2 NC, slow break, 1 entry tapped Pg 11 -120 V

Technical Information

Action
SLOW-BREAK, SIMULTANEOUS
Amperage
6 Amp
Applications
KEY OPERATED TURRET HEAD
Body Material
PA (polyamide)
Contact Configuration
1 NC SLOW-BREAK),2 NC
Material
Plastic
Net Weight
0.36 kg
Number of Poles
2 Pole
Operating Cycles
10 cyc/mn For Maximum Durability
Operating Temperature
-25-60 Adegrees C
Size
110 MM,33 MM,94-94 MM
Standard
CSA C22.2 No 14,EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/ISO 12100,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
TERMINAL 1 X 0.5...2 X 1.5 MMA WITH OR WITHOUT CABLE END
Type
KEY OPERATED TURRET HEAD,SAFETY SWITCH
Voltage
0.55 A 125 Volt, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1-3 A 120 Volt, AC-15, B300 EN/IEC 60947-5-1-1.5 A 240 Volt, AC-15, B300 EN/IEC 60947-5-1,120 Volt-20...10

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCSTE

General Product Info

12-Digit UPC
389110825193
GTiN
03389110825190
Product UPC
38911082519
Weight
0.79 lb

Dimensions

Chain Cable Diameter
7-10 mm
Depth
33 mm
Height
94-94 mm
Warranty Length
18 mth
Width
110 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
France
