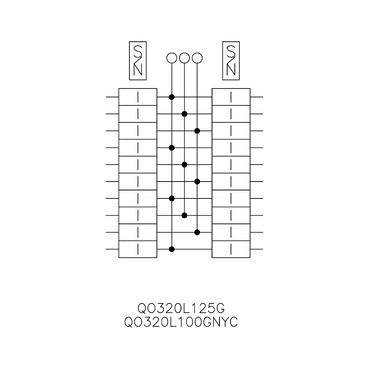

Square D QO320L125G Load Center MLO 125A 120/240V 3Ph 20SP NEMA-1

Manufacturer: Square-D / Schneider | Catalog # QO320L125G | Cooper Electric Part # 92523
$471.00/ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Single Three
Main Breaker Main Lug
2 available

For Pick Up

at Ocean Closes 5:00pm ET
19 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories such as ground bars which are included here. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main lug and is rated at 125 A and 3 phase. This system provides 20 spaces in a NEMA 1 enclosure.

Technical Information

Amperage
125 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Cable Size
AWG 6...AWG 2/0 ALUMINIUM/COPPER
Conductor Size
6-2/0 AWG
Cover Type
Order Separately
Current
125 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
65 kAIC
Line Rated Current
125 A
Material
Tin Plated Copper: Busbar
NEMA Size
1
Number of Circuits
20
Number of Phases
3,4 Phase
Number of Spaces
20
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
65 kA
Short Circuit Current Ratng
65 kA
Surface Finish
Baked Enamel Gray
Type
LOAD CENTER
Voltage
120 Volt
Wire Size
AWG 6...AWG 2/0 aluminium/copper NULL

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901295310
Finish
Baked Enamel
GTiN
00785901295310
Product UPC
78590129531

Dimensions

Height
20.91 Inch
Warranty Length
18 mth
Width
14.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0045812511
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.6 kg CO2 eq.
  • 0.6087456828
Phase
  • 3 phase 4 wires
  • 3 phase 3 wires
Related Products
  • QON320L125I
  • QO120
  • QO230
  • QO115
  • QOC24UF
  • QOC24US
  • QOC24UC
  • QO2175SB
  • QO250PSPD
  • HEPD25
Material
  • tin plated copper: busbar
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 42 kg CO2 eq.
  • 41.8971205882
Nema Degree Of Protection
  • NEMA 1 indoor enclosure
Persona Type Names
  • End User
  • Consumer
  • Contractor
  • Original Equipment Manufacturer
  • Electrician
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0.1 kg CO2 eq.
  • 0.087341
Persona Type Ids
  • EU
  • EUA
  • LC
  • OM
  • SC
Carbon Footprint Of The Distribution Phase A4
  • 1.9626353571
  • 2 kg CO2 eq.
Tightening Torque
  • main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper
  • Cover 20 lb.in
AWG Gauge
  • AWG 6...AWG 2/0 aluminium/copper
UE Rated Operational Voltage
  • 208Y/120 V AC
  • 240/120 V delta AC
  • 240 V delta AC
Surface Finish
  • baked enamel Gray
