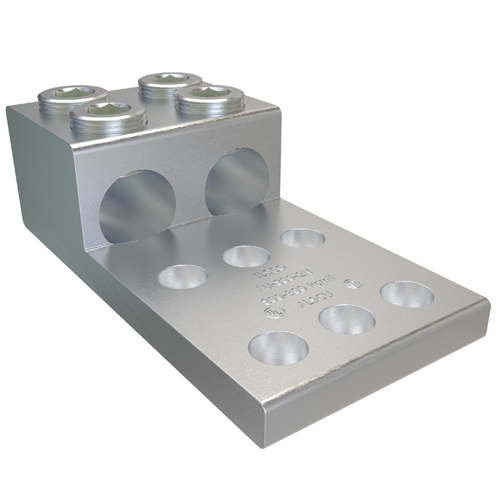

Product image for Ilsco AU-800-2N Aluminum Mechanical Lug, Conductor Range 800-300, 2 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

Ilsco AU-800-2N Aluminum Mechanical Lug, Conductor Range 800-300, 2 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # AU-800-2N | Cooper Electric Part # 92327
$121.42/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,6 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 800 kcmil - 300 kcmil, 2 conductors, 2 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Mechanical Lug, Two Conductor
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Conductors
2
Number of Holes
6 Hole
Standard
CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
AU:2 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669007022
Color
Silver
Finish
Tin Plated
GTiN
00783669007022
Product UPC
78366900702
Weight
1.688 lb

Dimensions

Height
1.813 Inch
Length
5.97 Inch
Width
3 in
