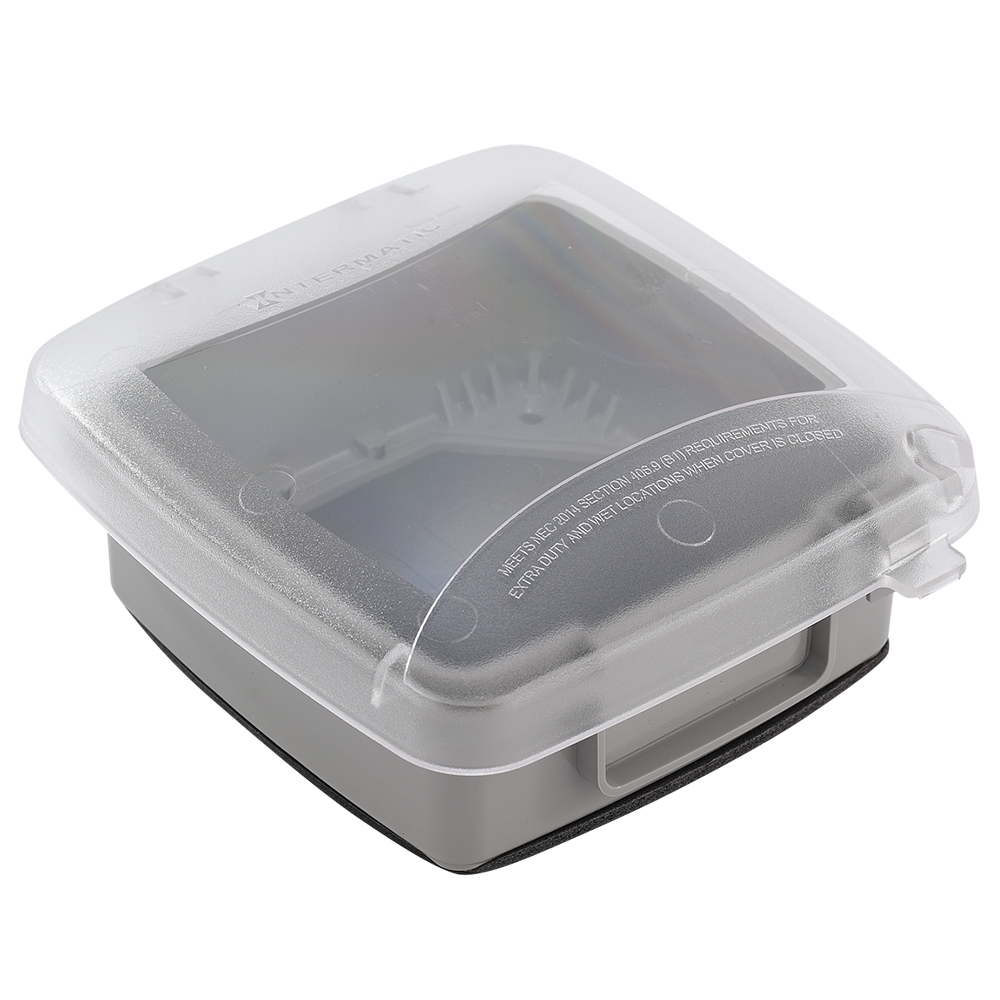

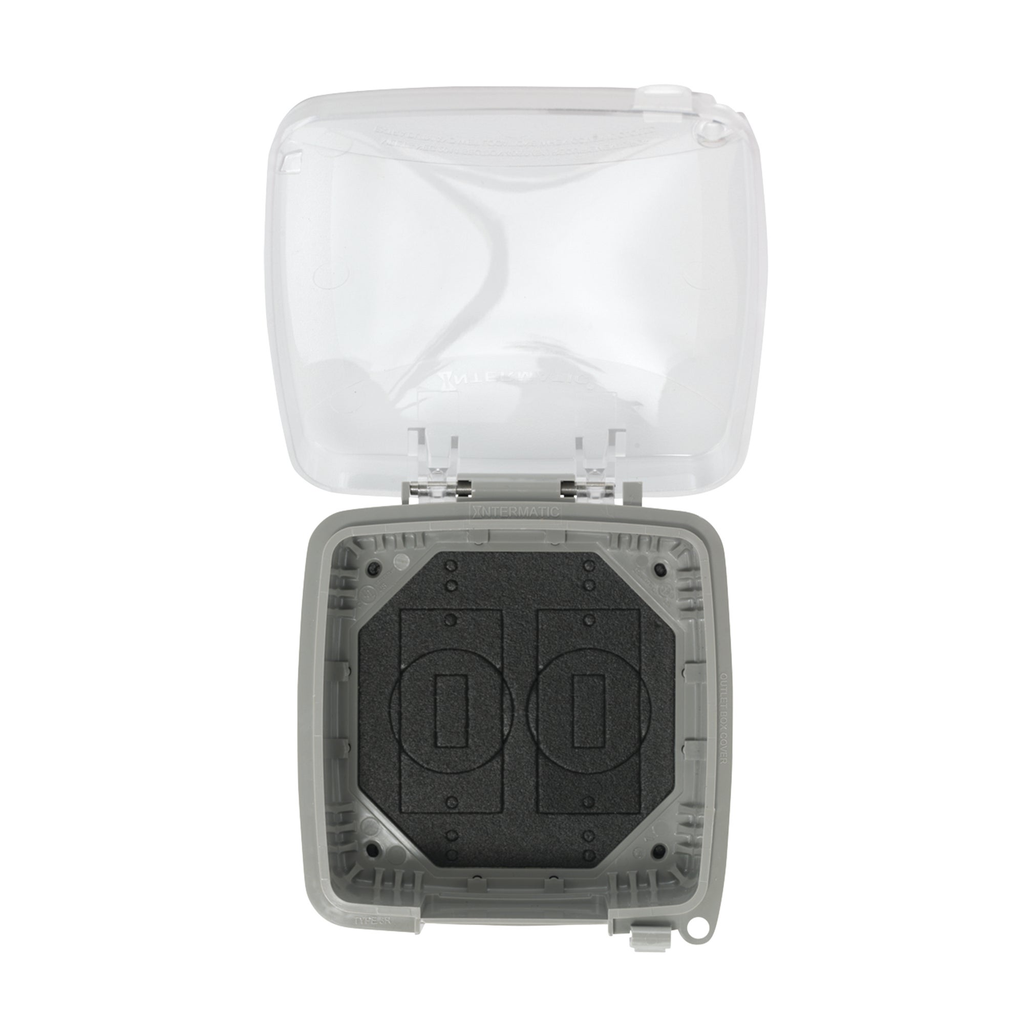

Intermatic WP5220C 2-Gang Vertical Hinge 2-1/4 Inch Extra Duty Clear Plastic Receptacle Cover with Guard Insert

Manufacturer: Intermatic, Inc | Catalog # WP5220C | Cooper Electric Part # 921258
$52.61/ea
ea
Log in or register to view your price, purchase history, and more!
Single Double
Yes No
Standard Low Profile
Clear Gray White Bronze
4 available

For Pick Up

at Ocean Opens Monday 7:00am ET
57 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet
Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with an adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Wet Location and Heavy Duty Application
Cable Size
(2) 12 Gauge, (1) 10 Gauge
Gang Type
Double
Insulation Material
Neoprene Gasket
Insulation Type
Neoprene Gasket
Material
Polycarbonate
Mounting Configuration
Mounting screws
Mounting Type
Vertical
Number of Gangs
2 Gang
Number of Outlets
2
Size
2.25 DEPTH X 6.5 HEIGHT X 6.5 WIDTH IN, 57.15 DEPTH X 165.10 HEIGHT X 165.10 WIDTH MM
Standard
2014 NEC Article 406.9(B)(1) Compliant,CEC Rule 26-702,CSA,UL Certified For Type 3R,UL Listed
Type
Rectangular, Receptacle

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275145337
Color
Clear
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
Finish
Plastic
GTiN
00078275145337
Product Category
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product Type
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product UPC
07827514533
Shape
Rectangle
Used With
Commercial, home

Dimensions

Depth
2-1/4 Inch
Diameter
6 mm
Height
6 Inch
Length
6-1/2 Inch
Warranty Length
1 yr
Width
6-1/2 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4\" (6 mm) dia. shank
  • Impact rated: 12 lb. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test
  • Warranty: 1-year limited
