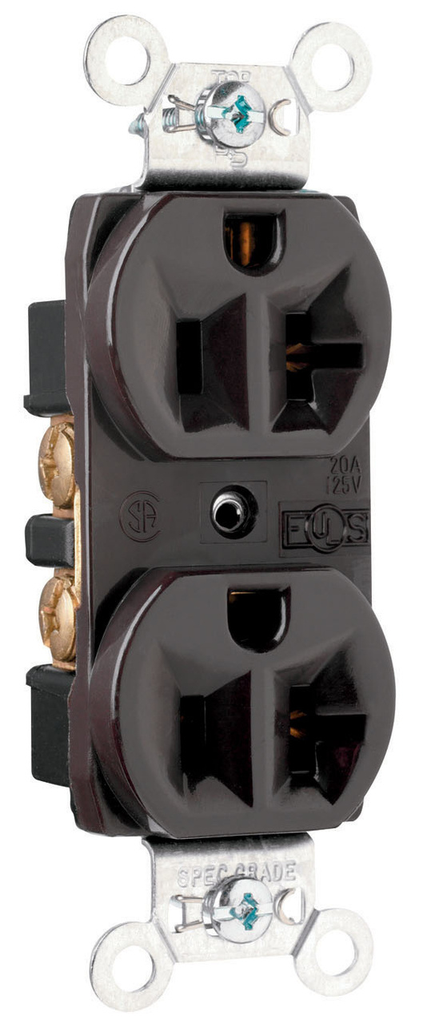

Product image for P&S CRB5362 20A 125V CONSTRUCT DUPL
Email

P&S CRB5362 20A 125V CONSTRUCT DUPL

Manufacturer: Pass & Seymour / Legrand | Catalog # CRB5362 | Cooper Electric Part # 92043
$5.68/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Construction Spec Grade Duplex Receptacle Back and Side Wire 20A 125V

Technical Information

Amperage
20 Amp
Applications
Residential/Commercial
Capacity
Duplex
Conductor Size
4 AWG
Connection Type
Back and Side Wired
Dielectric Strength
2000 V
Grade
Construction Specification
Material
Thermoplastic
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.3 in
Standard
UL
TC Connection
Wire Ground
Type
Straight Blade Receptacle
Voltage
125 Volt
Wire Size
4 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007210217
Color
Brown
Finish
Matte
GTiN
00785007210217
Product UPC
78500721021
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
