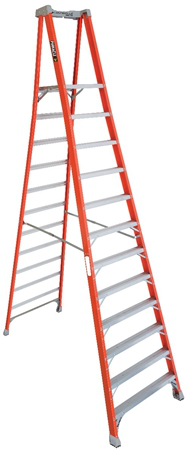

Louisville Ladder FXP1712  12ft Fiberglas Pro Platform Ladder, 300lb Rating

Manufacturer: Louisville Ladder | Catalog # FXP1712 | Cooper Electric Part # 920350
$581.30/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
5 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
This Louisville 12 foot Pinnacle Platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features a 30" extended handrail (perfect tool belt height) and a 30% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1712 Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.

Technical Information

Bottom Width
36-3/4 in
Duty Rating
Type IA
Load Capacity
300 lb
Material
Fiberglass
Max Reach
193 in
Max Standing Height
11.42 ft
Number of Steps
12
Rung Type
Standard
Size
12
Spread
92 in
Step Depth
3 in
Style
Pinnacle Pro Platform
Type
Pinnacle

Manufacturer Information

Brand
Louisville Ladder

General Product Info

12-Digit UPC
728865124111
Product UPC
72886512411
Weight
73 lb

Dimensions

Closed Depth
10-1/4 in
Closed Height
12 ft
Closed Width
36.8 in
Platform Height
136.898 in
Platform Length
17-5/8 in
Platform Width
14-3/4 in
Features
  • 30\" Tall Extended Handrail From Top To Platform
  • 30% Larger Platform Area For Added Comfort And Safety

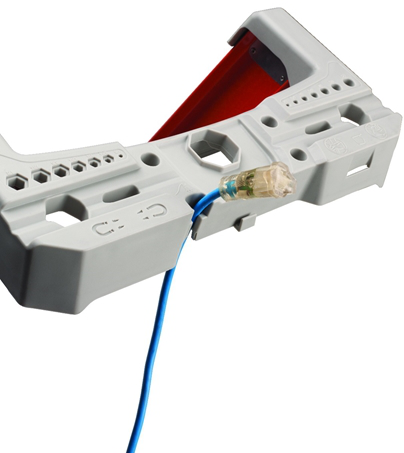

  • ProTop With Multiple Tool Slots And Magnet
  • Raptor Slip-resistant Boot
  • Shox Impact Absorption System
  • Double-Rivet Step Construction
  • Wide Back Braces
  • ANSI Certified
  • OSHA Certified
