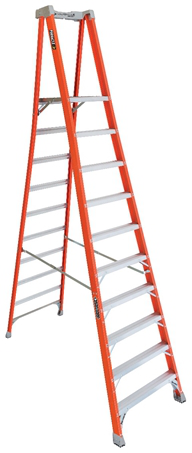

Louisville Ladder FXP1710 10ft Fiberglass Pro Platform Ladder, 300lb Load Capacity

Manufacturer: Louisville Ladder | Catalog # FXP1710 | Cooper Electric Part # 920349
$456.95/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
6 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch
This Louisville 10 foot Pinnacle Platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features a 30" extended handrail (perfect tool belt height) and a 30% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1710 Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.

Technical Information

Bottom Width
33-3/4 in
Duty Rating
Type IA
Load Capacity
300 lb
Material
Fiberglass
Max Reach
170 in
Max Standing Height
9.5 ft
Number of Steps
10
Rung Type
Standard
Size
10
Spread
82-1/4 in
Step Depth
3 in
Style
Pinnacle Pro Platform
Type
Pinnacle

Manufacturer Information

Brand
Louisville Ladder

General Product Info

12-Digit UPC
728865124104
Product UPC
72886512410
Weight
60 lb

Dimensions

Closed Depth
10-1/4 in
Closed Height
10 ft
Closed Width
33.8 in
Platform Height
114.072 in
Platform Length
17-5/8 in
Platform Width
14-3/4 in
Features
  • 30\" Tall Extended Handrail From Top To Platform
  • 30% Larger Platform Area For Added Comfort And Safety
  • ProTop With Multiple Tool Slots And Magnet
  • Raptor Slip-resistant Boot
  • Shox Impact Absorption System
  • Double-Rivet Step Construction
  • Wide Back Braces
  • ANSI Certified
  • OSHA Certified
