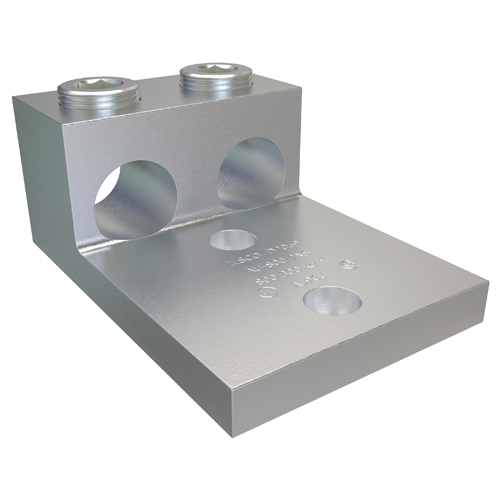

Product image for Ilsco AU-800-2NS Aluminum Mechanical Lug, Conductor Range 800-300, 2 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Email

Ilsco AU-800-2NS Aluminum Mechanical Lug, Conductor Range 800-300, 2 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # AU-800-2NS | Cooper Electric Part # 92015
$104.72/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 7:00am ET
18 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet
ILSCO Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 800 kcmil - 300 kcmil, 2 conductors, 2 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Terminating Connector
Conductor Material
Aluminum,Copper
Conductor Size
300-800 kcmil
Conductor Type
Aluminum/Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
1-3/4 in
Number of Conductors
2
Number of Holes
2 Hole
Standard
UL File Number: E6207,UL Specifications: UL 486A-B,CSA File Number: LR-29601
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
AU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669007008
Color
Silver
Finish
Tin Plated
GTiN
00783669007008
Product UPC
78366900700
Weight
1.356 lb

Dimensions

Height
1.938 Inch
Length
4-3/4 Inch
Width
3.188 in
