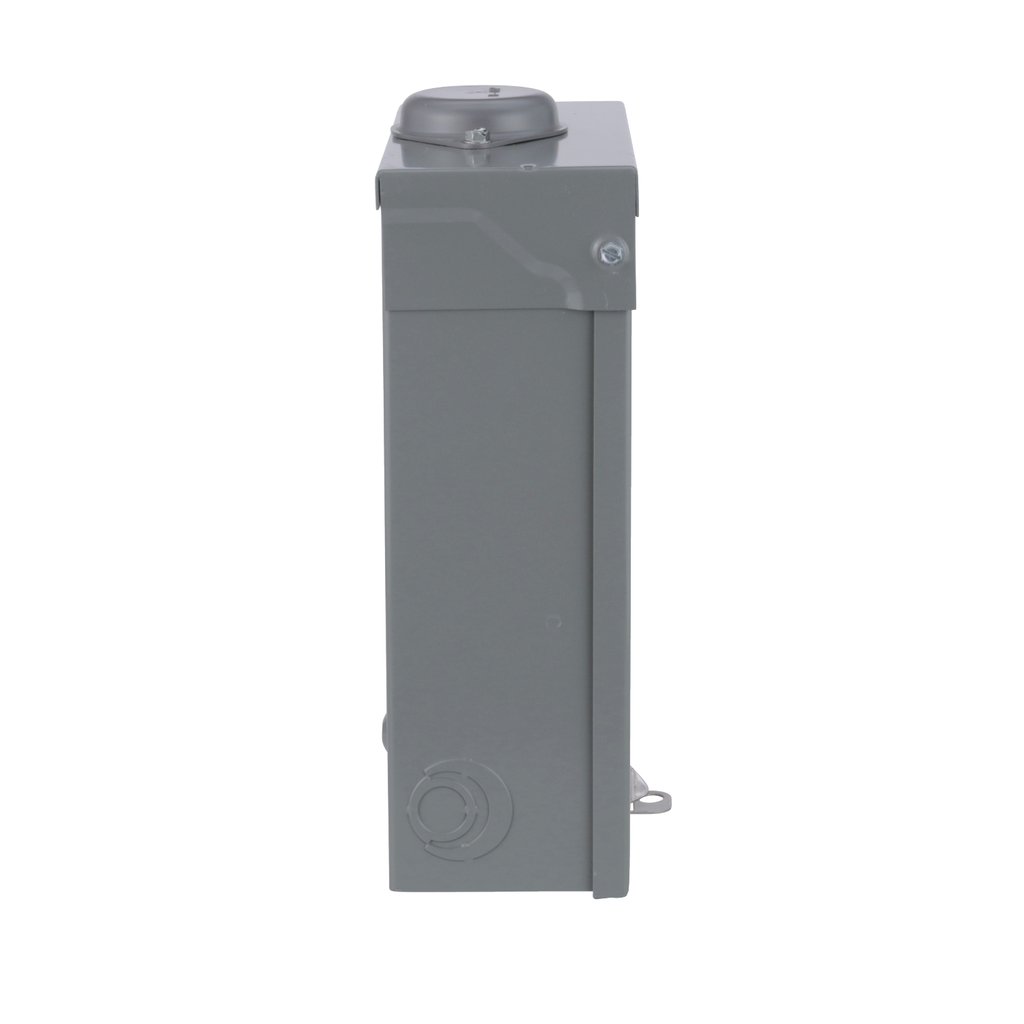

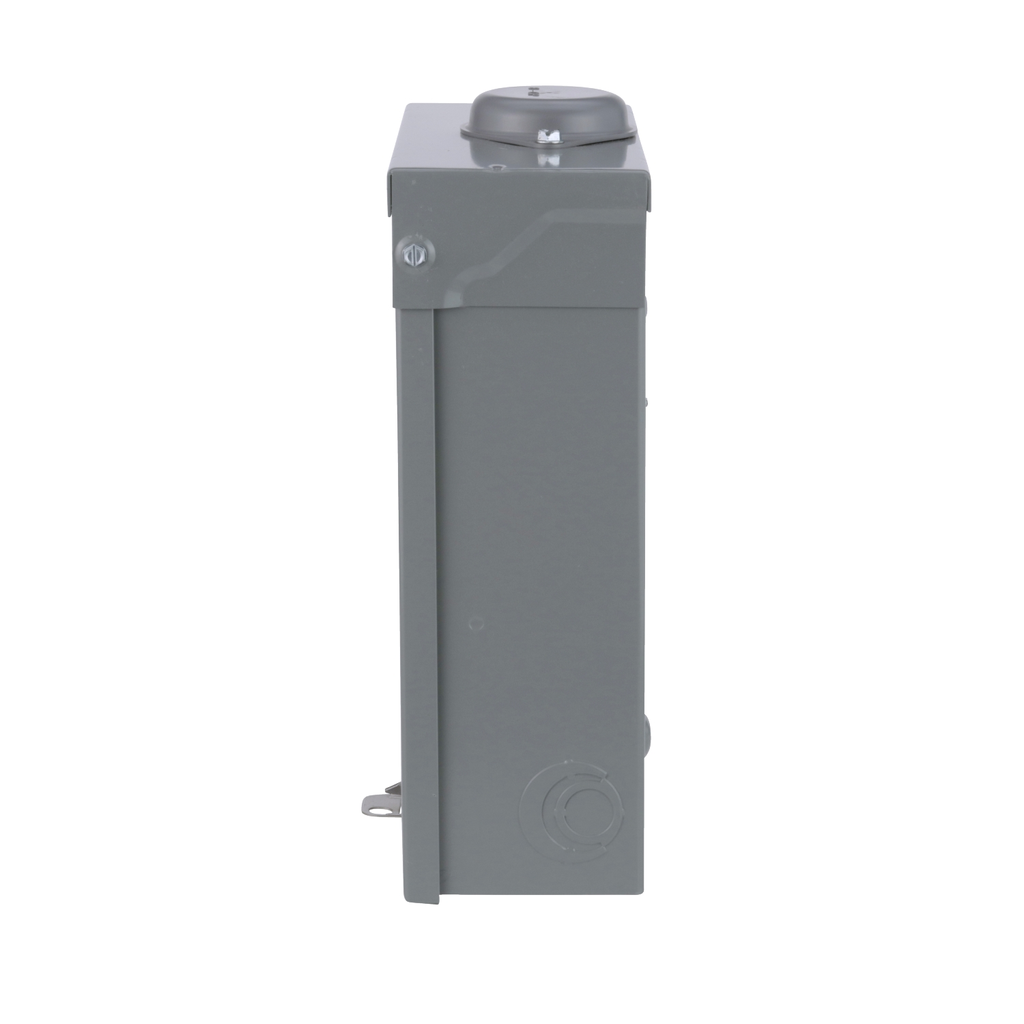

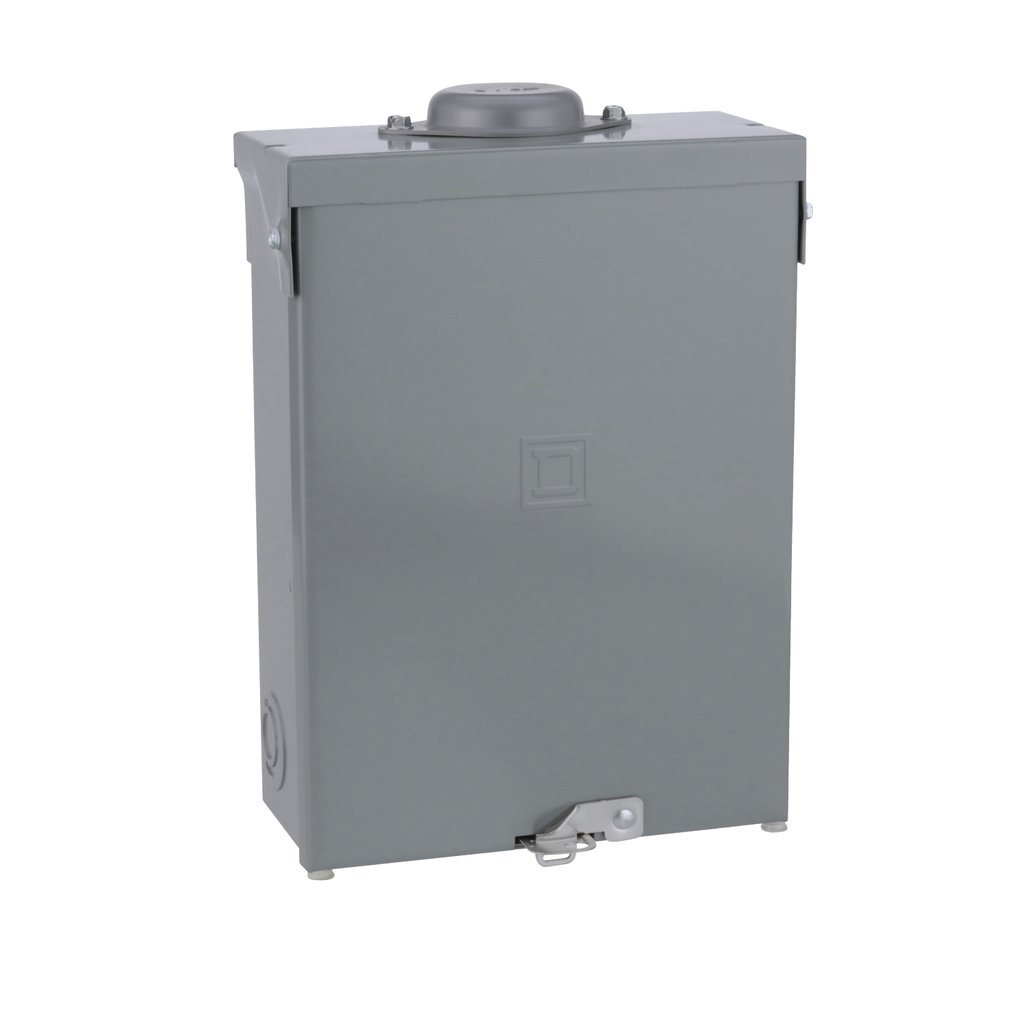

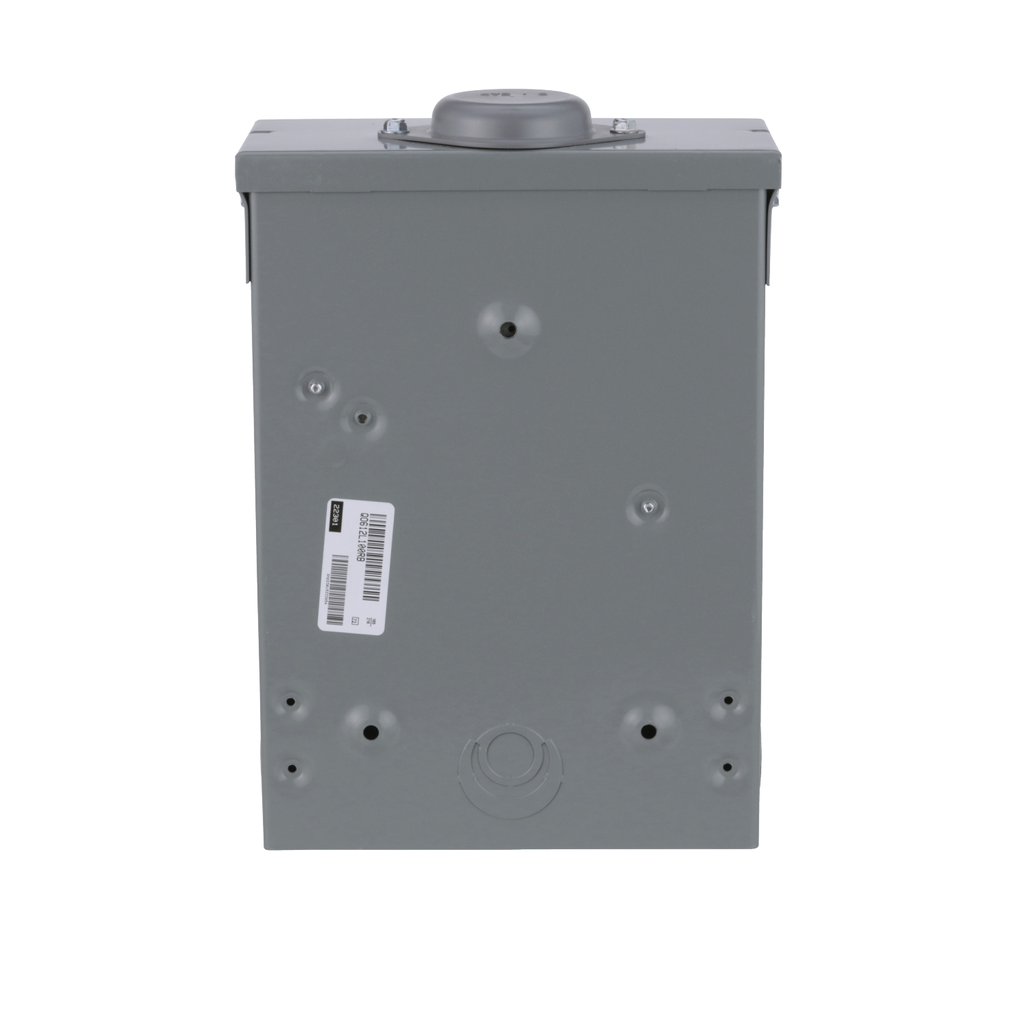

Square D QO612L100RB Load Center MLO 120/240V 1Ph 6SP NEMA-3R

Manufacturer: Square-D / Schneider | Catalog # QO612L100RB | Cooper Electric Part # 91979
$143.00/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Pick Up

at Ocean Opens Monday 7:00am ET
20 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QO® Circuit Breaker Load Centers, QO612L100RB, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

Technical Information

Amperage
100 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Cable Size
AWG 8...AWG 1 ALUMINIUM/COPPER
Conductor Size
8-1 AWG
Cover Type
Surface Cover
Current
100 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Enclosure Type
Weatherproof enclosure
Interrupt Rating
10 kAIC
Line Rated Current
100 A
Material
Tin Plated Aluminium: Busbar
NEMA Size
3R
Number of Circuits
12
Number of Phases
1,3 Phase
Number of Spaces
6
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
Surface Finish
Baked Enamel Gray
Type
Load Center
Voltage
120/240 Volt
Wire Size
AWG 8...AWG 1 aluminium/copper

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901785590
Finish
Baked Enamel
GTiN
00785901785590
Product UPC
78590178559

Dimensions

Height
321 mm
Warranty Length
18 mth
Width
226 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
