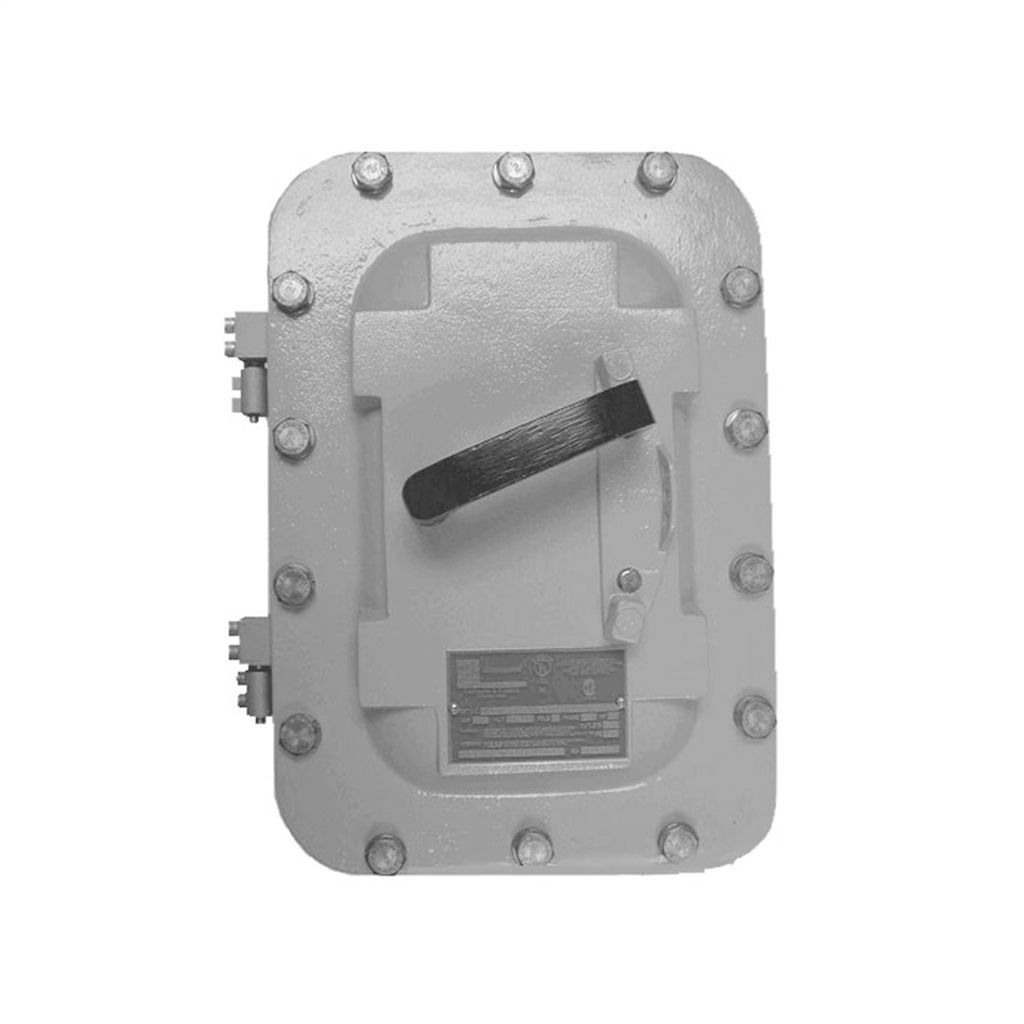

Appleton AEAB13225C AE Series Bolted Circuit Breakers and Enclosures - PN AEAB13225C

Manufacturer: Appleton Electric | Catalog # AEAB13225C | Cooper Electric Part # 919590
$2,899.97/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page
Appleton™ explosionproof, dust-ignitionproof, watertight AE Series circuit breakers and enclosures are available in 2- and 3-Pole, 15 to 1200 Amps models for use in areas where hazardous materials are handled or stored. The non-interchangeable trip circuit breakers and bolted type enclosures offer explosionproof protection with a wide range of options. The AE Series are designed for overload and short circuit protection as well as control of lighting and power circuits.

Technical Information

Material
Copperfree Aluminum,Neoprene,Stainless Steel

Manufacturer Information

Brand
Appleton

General Product Info

12-Digit UPC
781381856096
Finish
Epoxy Powder Coat,Gray
GTiN
00781381856096
Product UPC
78138185609

Certifications and Compliance

Buy American Compliant
Y
Features
  • Explosionproof, dust-ignitionproof, watertight
  • Precision machined flame path between box and cover. O-ring gasket insures watertight integrity.
  • 15 to 1200 Amps, 240 Vac, 480 Vac, 600 Vac, 125/250 Vdc
  • Bolt on stainless steel slotted mounting feet
  • Stainless steel, captive Quad-Lead® cover bolts are standard (disengaged in 1-1/2 turns)
  • Ground lug package and installation instructions for termination of ground wire enclosed
  • External operating handle with stops for limiting handle travel
  • Breaker operators can be locked in the ON or OFF position (up to 3 padlocks)
  • External flange maximizes internal space
  • Standard outlets top and bottom for line and load wiring. Plugged 1/2 outlets top and bottom for breather and drain
  • Breakers mounted on a galvanized steel removable pan
  • Enclosures are designed to accept GE, Square D, Siemens and Cutler-Hammer B circuit breakers
