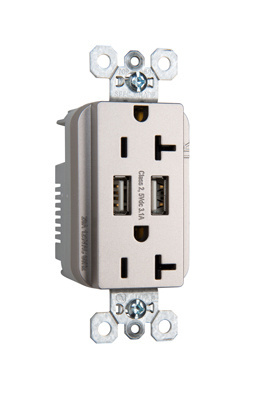

P&S TR5362USBNI DUP REC 20A TR SPEC

Manufacturer: Pass & Seymour / Legrand | Catalog # TR5362USBNI | Cooper Electric Part # 919049
$80.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
Designed for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Material
Thermoplastic
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.392" (D) x 1.693" (W) x 3.281" (H)
Style
Decorator
TC Connection
Side & Back Wired
Temperature Rating
60 degrees C
Type
Tamper-Resistant USB Duplex Receptacle
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007031652
Color
Nickel
Finish
Nickel
GTiN
00785007031652
Product UPC
78500703165

Dimensions

Depth
1.392 Inch
Height
2.677 Inch
Width
1.693 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
China
Certifications
  • cULus Listed
  • UL Listed
Features
  • Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
  • One-piece heat-treated triple-wipe brass power contacts.
  • AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
  • Multiple color options available.
  • Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
  • Stainless steel auto-ground clips assure positive ground.
  • Wire Size: #14 - #10 AWG Copper Conductor Only
