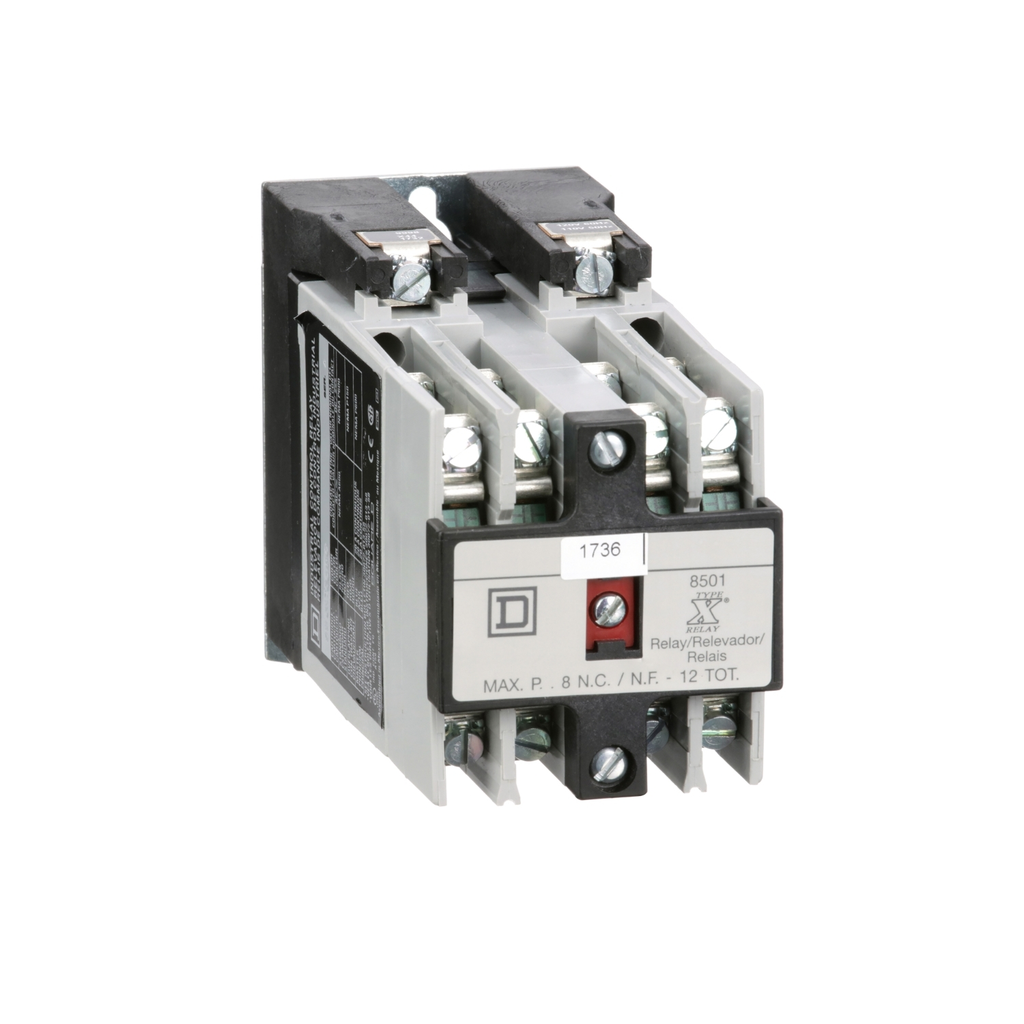

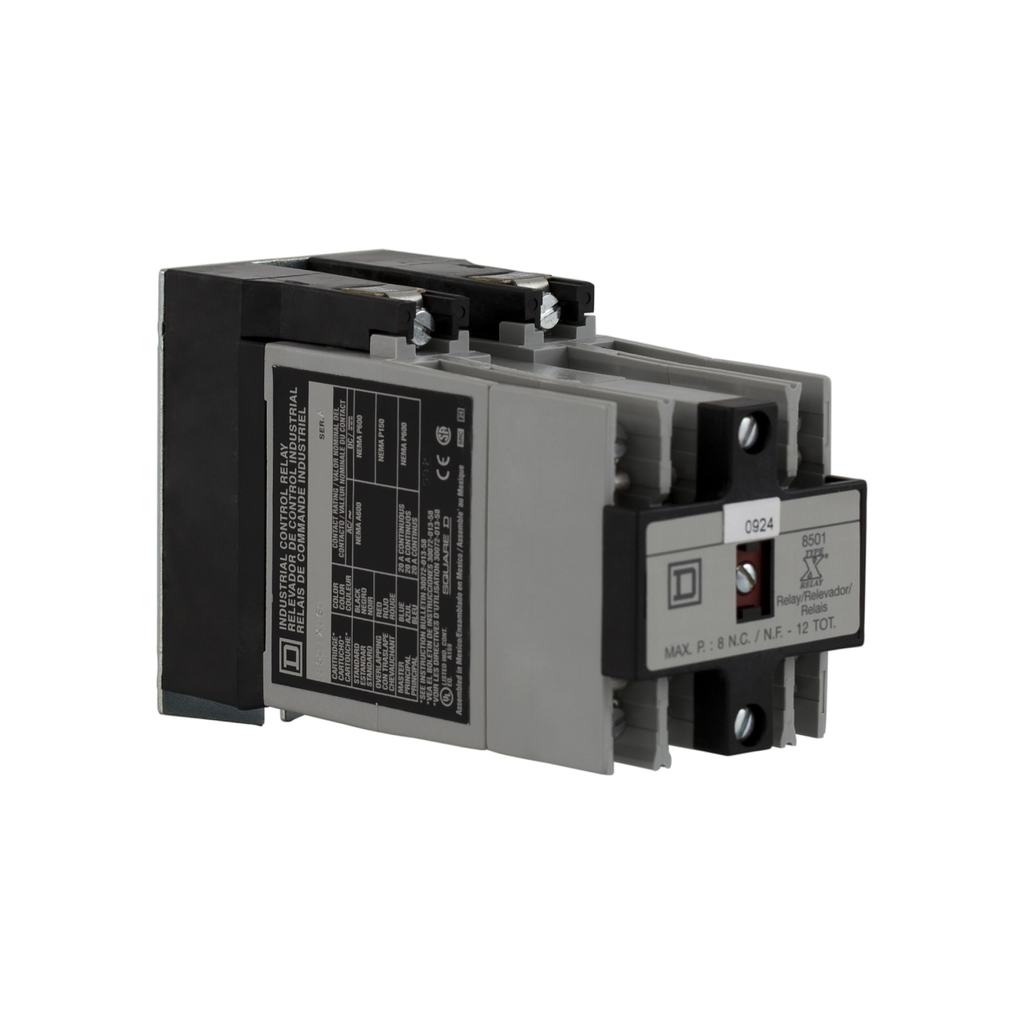

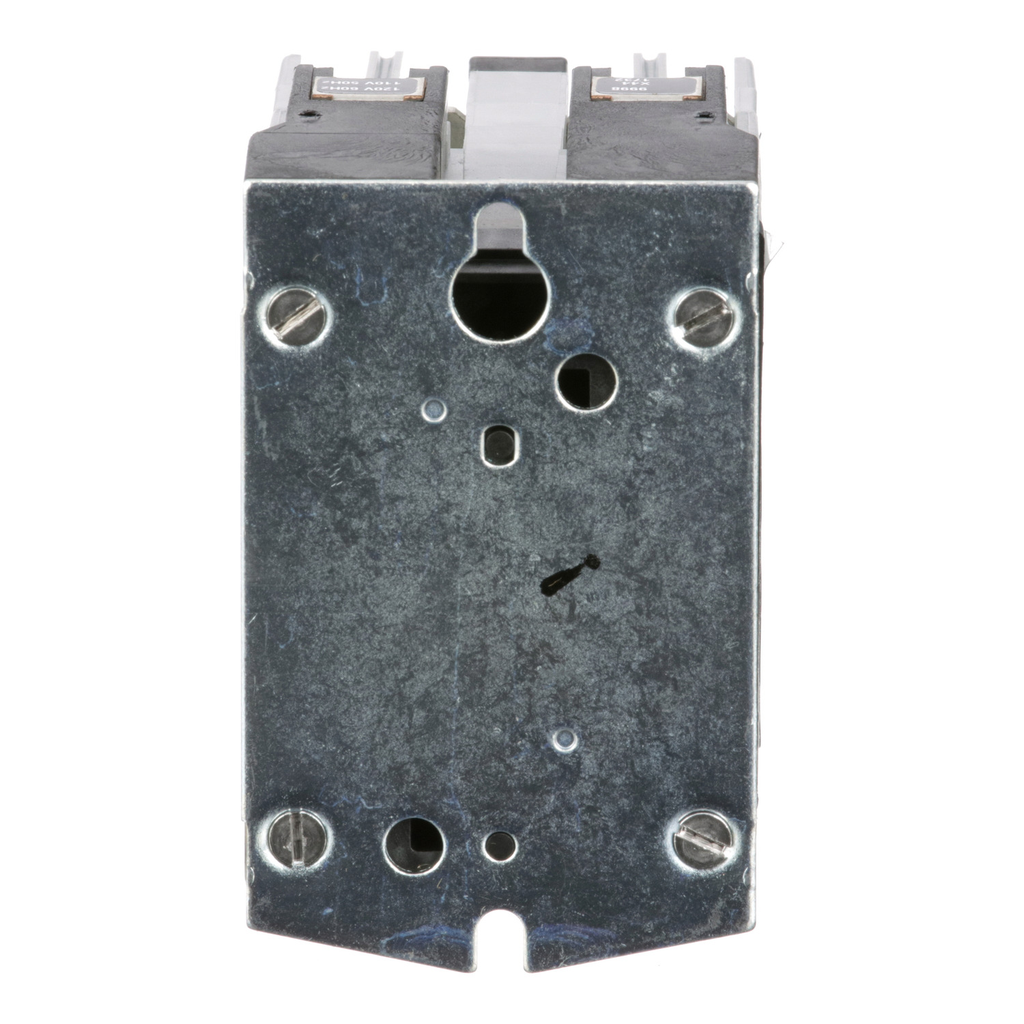

Square D 8501XO80V02 110/120 VAC 10/5 Amp 8-Pole 8NO Panel Mount AC Operated Control Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XO80V02 | Cooper Electric Part # 91844
$341.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has eight 8501XC1 contact cartridges. This relay has eight normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The eight plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.

Technical Information

Amperage
5-10 Amp
Coil Voltage
110 V AC 50 Hz;120 V AC 60 Hz
Contact Configuration
8 NO 8 standard contact cartridges
Contact Rating
10 A AC-5 A DC
Current
10 Amp
Line Rated Current
10 A
Mounting Type
Panel
Operating Temperature
-40-160 Adegrees F
Range
8501X NULL
Size
2.23 IN,3.5 IN,5.16 IN
TC Connection
AWG 18...AWG 12 COPPER,SCREW CLAMP TERMINALS
Type
CONTROL,RELAY

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901536819
GTiN
00785901536819
Product UPC
78590153681

Dimensions

Depth
5.16 Inch
Height
3-1/2 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR60905 Class 3211 03,UL Listed File E78403 CCN NKCR
Country of Origin
Mexico
Inrush Power In VA
  • 148-148 VA 60 Hz
  • 143-143 VA 50 Hz
Contacts Type And Composition
  • 8 NO 8 standard contact cartridges
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=E0700701-01&p_File_name=E0700701-01.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=E0700701-01&p_File_name=E0700701-01.dxf
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.2812505305574211
  • 0.3 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 2 kg CO2 eq.
  • 1.9349018132975149
Operating Time
  • 15 ms - pick-up
  • 16 ms - drop-out
UC Control Circuit Voltage
  • 110 V AC 50 Hz
  • 120 V AC 60 Hz
ICM Rated Short Circuit Making Capacity
  • 60 A 120 V AC inductive control circuit UL 508
  • 60 A 120 V AC induc
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 7 kg CO2 eq.
  • 6.776744929482874
Accessories
  • 8501XC1
  • 8501XB20
  • 8501XB40
  • 8501XS1
  • 8501XTD1
  • 8501XLV02
  • 8501XTE1
  • 9998X44
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 189 kg CO2 eq.
  • 188.7858823529412
Line Rated Current
  • 10 A AC
  • 5 A DC
Accessory Products
  • 8501XC1
  • 8501XB20
  • 8501XB40
  • 8501XS1
  • 8501XTD1
  • 8501XLV02
  • 8501XTE1
  • 9998X44
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Carbon Footprint Of The Distribution Phase A4
  • 0.14410370718603088
  • 0.1 kg CO2 eq.
Tightening Torque
  • control circuit 1.02-1.36 N.m screw terminals
AWG Gauge
  • AWG 18...AWG 12 copper
Control Circuit Voltage Limits
  • operational 0.85...1.1 Uc AC 50/60 Hz
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Hold In Power Consumption In VA
  • 23-23 VA 60 Hz
  • 25-25 VA 50 Hz
Rated Breaking Capacity
  • 6 A 120 V AC inductive control circuit UL 508
  • 6 A 120 V AC inductive c
