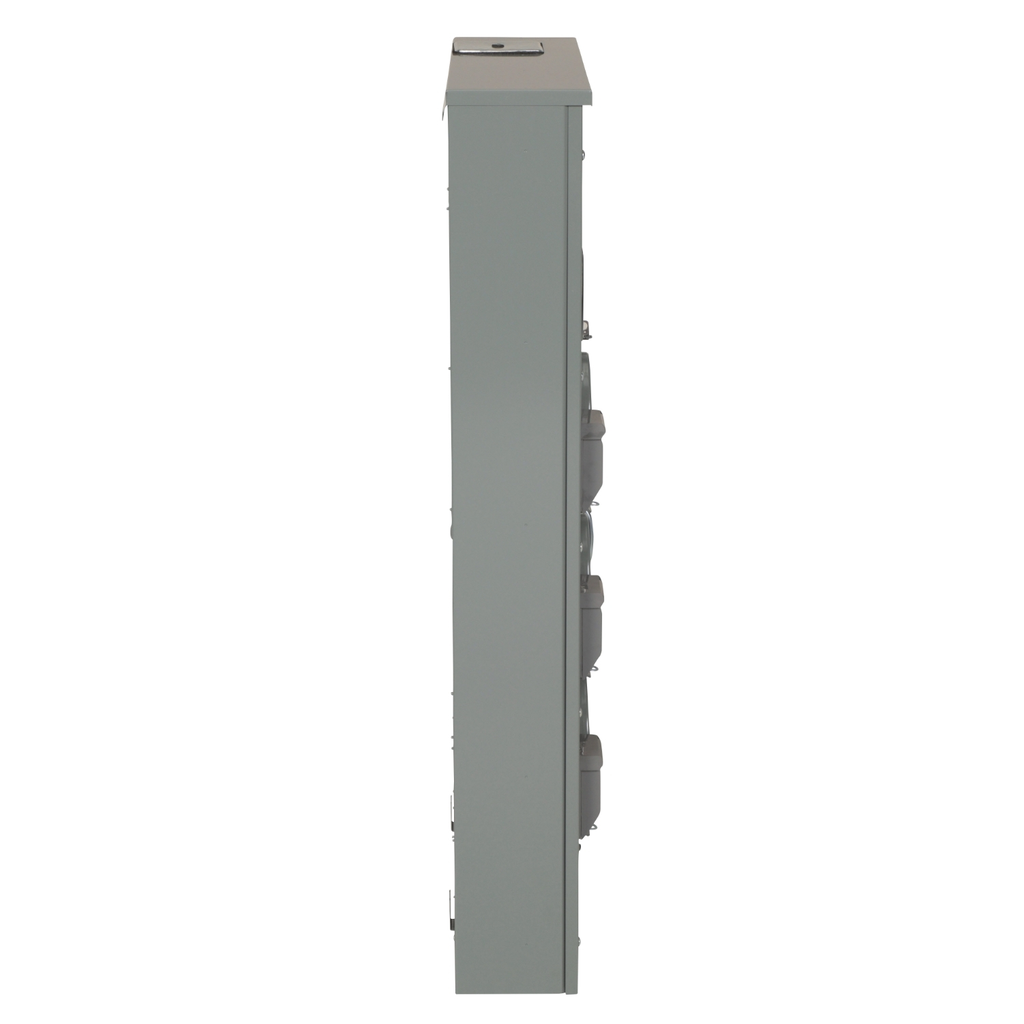

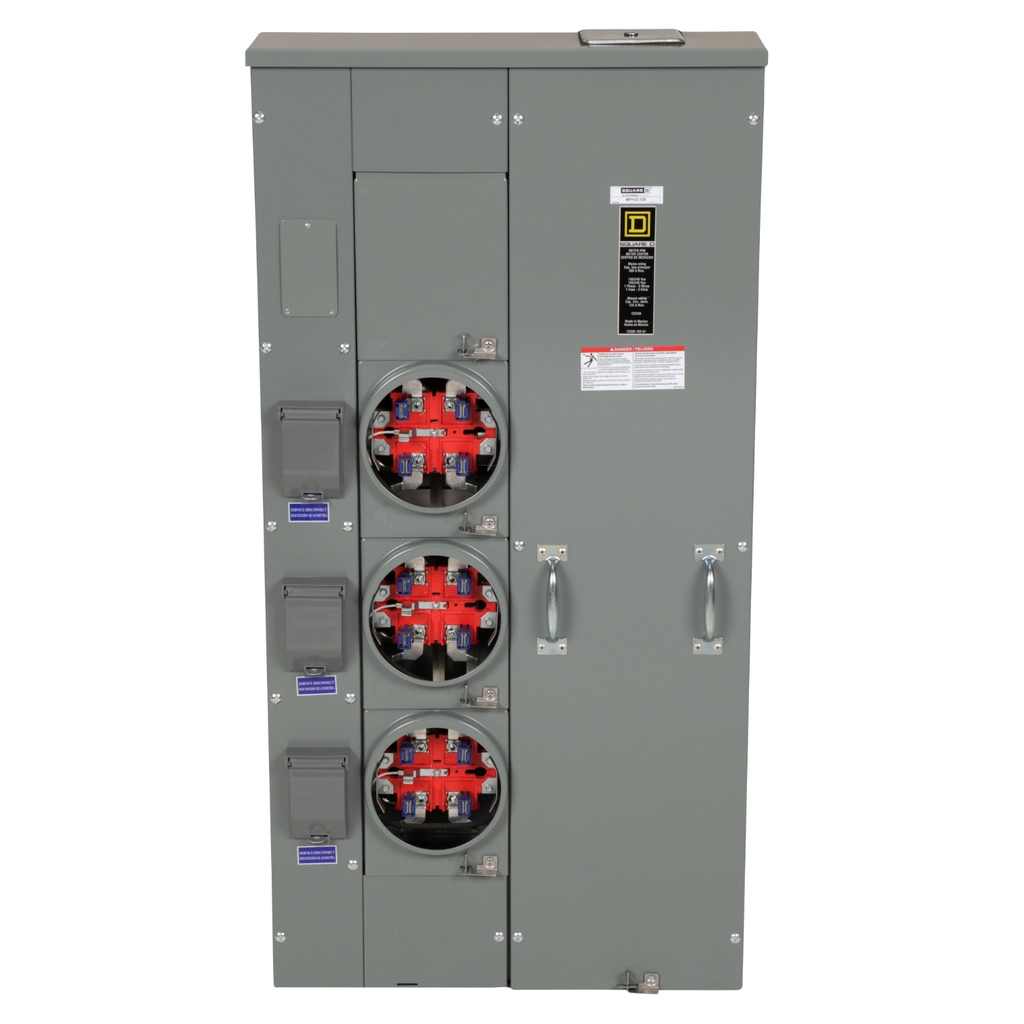

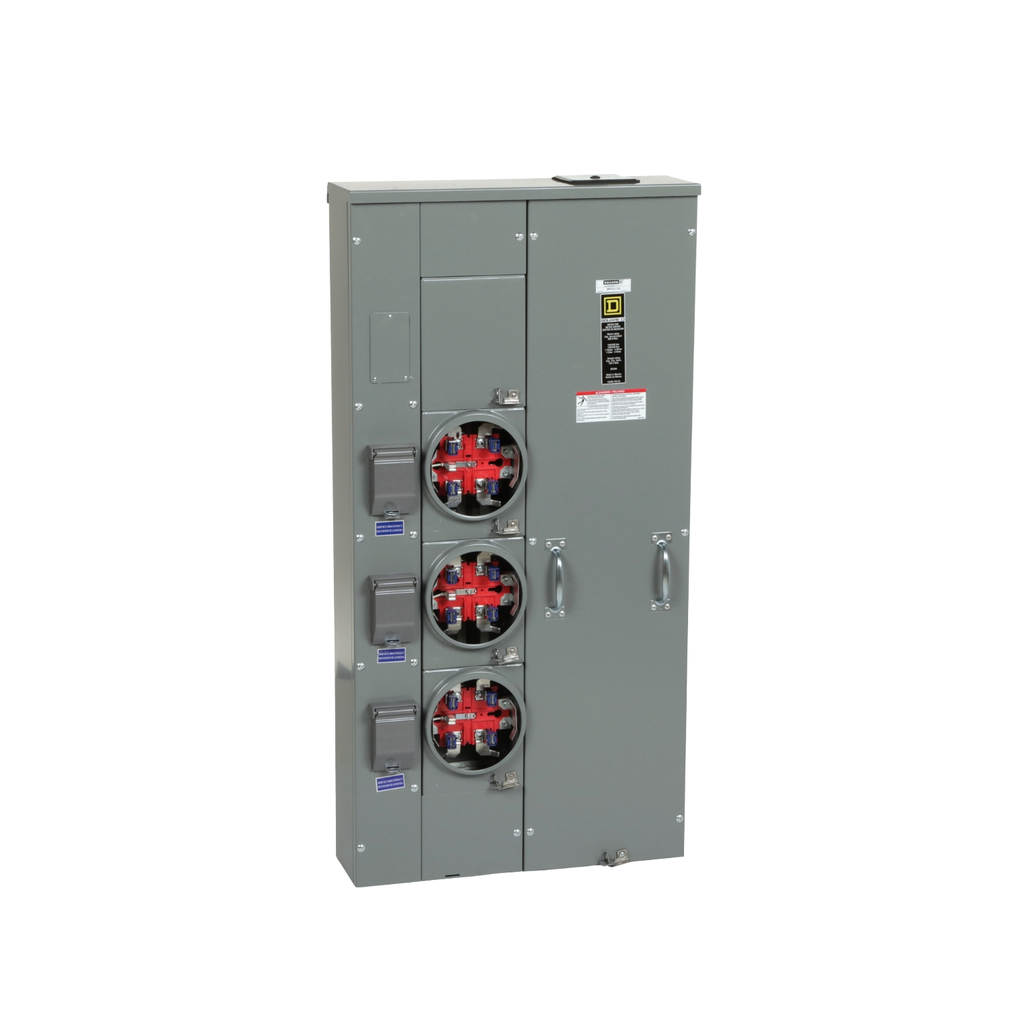

Square D MPH33125 300A Bus, 125A Max Breaker, 120/240VAC, 1P3W, 3-Socket, Horn Bypass, 5 Jaws, NEMA 3R Ringless Meter Center
Note: Installers Responsibility to Confirm Approved by Local Inspector

Manufacturer: Square-D / Schneider | Catalog # MPH33125 | Cooper Electric Part # 91603
$1,253.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
4 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
MPH Meter Pak meter centers offer a wide range of multimetering applications. MPH meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPH meter center has a ringless socket with a horn bypass and a 5th jaw. The aluminum main bus ampacity is 300 A. This MPH meter pak meter center has 3 meter sockets. The maximum tenant main lugs amperage is 125 A with a 240 VAC single phase maximum. This MPH meter center with accept 1/0 AWG to 600 kcmil copper or aluminum wire. Meter center is UL listed.

Technical Information

Amperage
125 Amp
Bus Rating
300 A
Cable Entry
UG-OH
Conductor Size
1/0 AWG-600 kcmil
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Material
Aluminium: Busbar
NEMA Size
3R
Number of Jaws
5
Number of Phases
1 Phase
Type
Ringless;Meter Center
Voltage
240 Volt
Wire Size
AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper

Manufacturer Information

Brand
Square D
Sub Brand
METER-PAK

General Product Info

12-Digit UPC
785901208112
GTiN
00785901208112
Product UPC
78590120811

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
