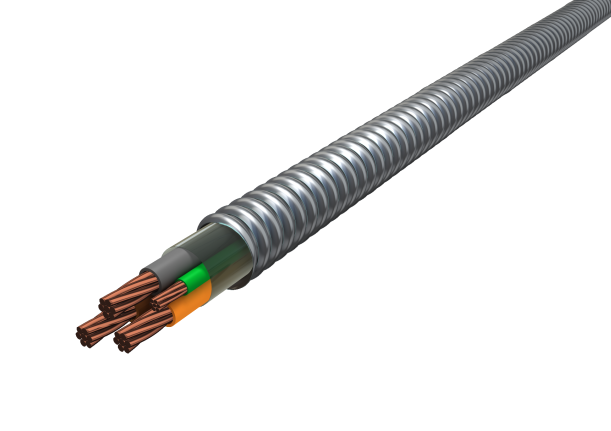

Product image for AFC 1716-45-00 *S8-3 MCS 500R
Email

AFC 1716-45-00 *S8-3 MCS 500R

Manufacturer: AFC Cable Systems | Catalog # 1716-45-00 | Cooper Electric Part # 913426
$2,618.33/m (1000 ft)
ft
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
500 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Product Spec Sheet
Type MC is an interlocked armored cable assembly that was introduced in 1960 and is still used today. This traditional branch circuit MC meets UL Standard 1569 and NEC 330. Unlike its predecessor, Type AC cable, Type MC cable does not have a conductor count limit and offers various conductor bundle combinations. All MC conductors are THHN/THWN rated and are twisted and wrapped with polypropylene assembly tape. Additionally, all traditional Type MC Cables come with an insulated green equipment grounding conductor as opposed to Type AC's integral bond wire/armor equipment ground fault path. This traditional Type MC Cable features a high-strength, galvanized steel interlocked armor for mechanical protection, providing an equivalent to EMT and wire.

Technical Information

Applications
Commercial, industrial, multi-residential branch circuits and feeder wiring-services for power, lighting, control and signal circuits. Exposed or concealed, fished, surface mounted, embedded in plaster, environmental air-handling spaces, open or messenger supported aerial runs, dry locations, in hazardous locations to Class I & II Div. 2 and Class III, Div. 1 & 2 (per NEC® Articles 501, 502, 503, 530), Places of Assembly, and applications requiring superior EMI shielding
Conductor Material
Copper
Conductor Size
8 AWG
Insulation Material
THHN,THWN
Number of Conductors
3
Temperature Rating
90 degrees C
Type
Type MC Steel Metal Clad Cable

Manufacturer Information

Brand
Kaf-Tech
Sub Brand
Kaf-Tech

General Product Info

12-Digit UPC
077680107374
GTiN
00077680107374
Product UPC
07768010737

Dimensions

Height
0.767 Inch
Length
500 Foot
Width
0.767 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Cable System. Technically equivalent and economically superior to traditional raceway and wire installations.
  • Redundant Grounding. For applications requiring isolated, redundant, or dedicated grounding conductors. Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request.
  • Connector. May be used with set-screw connectors UL listed for use with MC cable
  • Made in USA of US and/or imported materials
