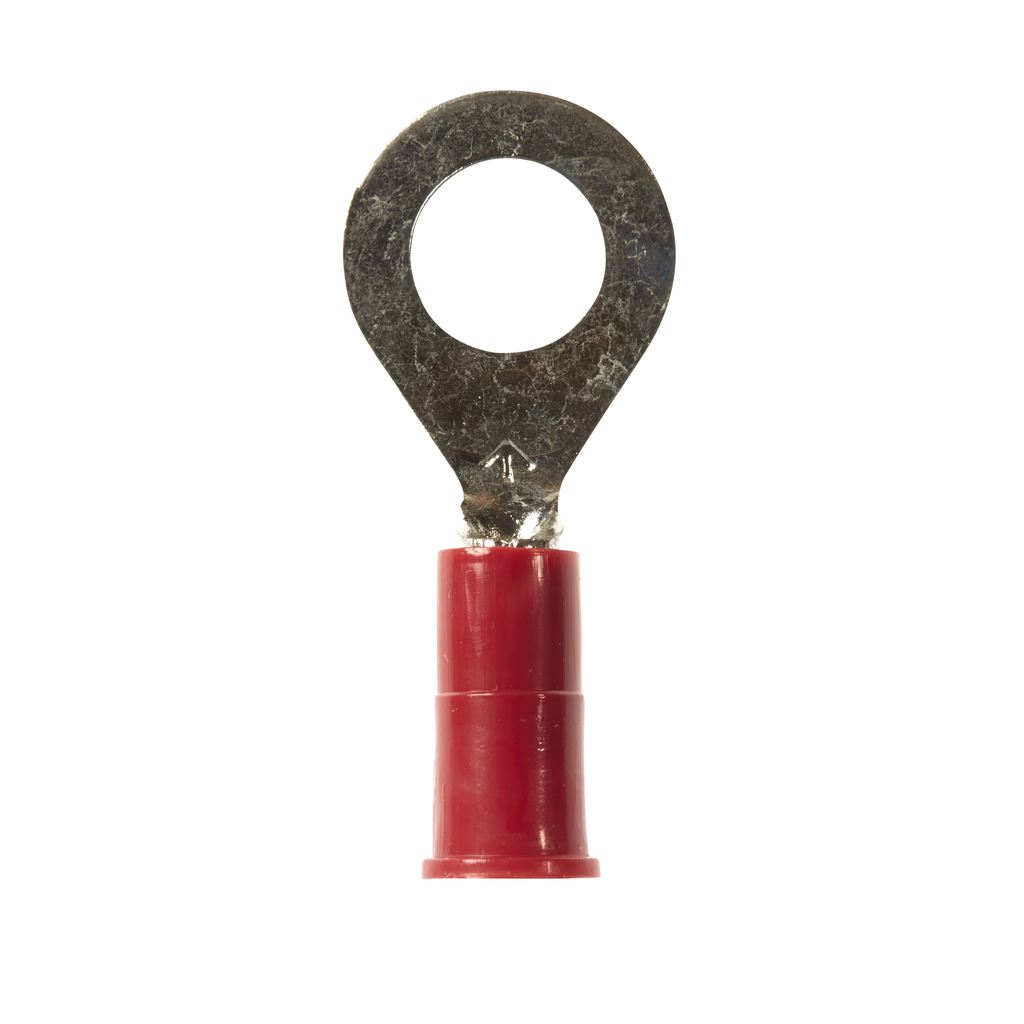

Product image for 3M MV18-14R/SX 100/Bottle Vinyl Insulated Ring
Email

3M MV18-14R/SX 100/Bottle Vinyl Insulated Ring

Manufacturer: 3M | Catalog # 7000133317 | Cooper Electric Part # 912476
$1.58/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Brazed
Conductor Size
22-18 AWG
Insulation Material
PVC
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Stud Size
1/4 in
Terminal Size
22 - 18 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Short Sleeve, Standard

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128587331
Color
Red
Finish
Tin Plated
GTiN
00051128587331
Product UPC
05112858733

Dimensions

Length
1.08 Inch
Overall Length
1.08 in
Thickness
0.03 in
Width
0.47 in

Certifications and Compliance

Country of Origin
USA
Features
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
