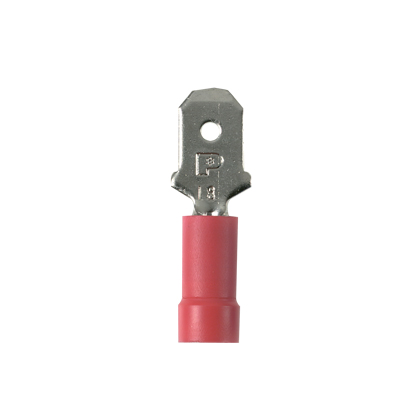

Product image for Panduit DV18-250MB-CY 22 to 18 AWG Red Vinyl Barrel Insulated Funnel Entry Male Disconnect
Email

Panduit DV18-250MB-CY 22 to 18 AWG Red Vinyl Barrel Insulated Funnel Entry Male Disconnect

Manufacturer: Panduit Corp | Catalog # DV18-250MB-CY | Cooper Electric Part # 91109
$323.66/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.98" (24.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
22-18 AWG
Insulation Material
Vinyl
Material
Copper
Max Operating Temperature
105 degrees C
Tab Size
1/4 x 0.032 in
TC Connection
funnel Entry
Temperature Rating
221 degrees F
Type
Loose-Piece
Voltage
600 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983685622
Color
Red
Finish
Nickel
GTiN
00074983685622
Product UPC
07498368562
UNSPSC
39121409

Dimensions

Overall Length
0.98 in
Width
0.25 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
