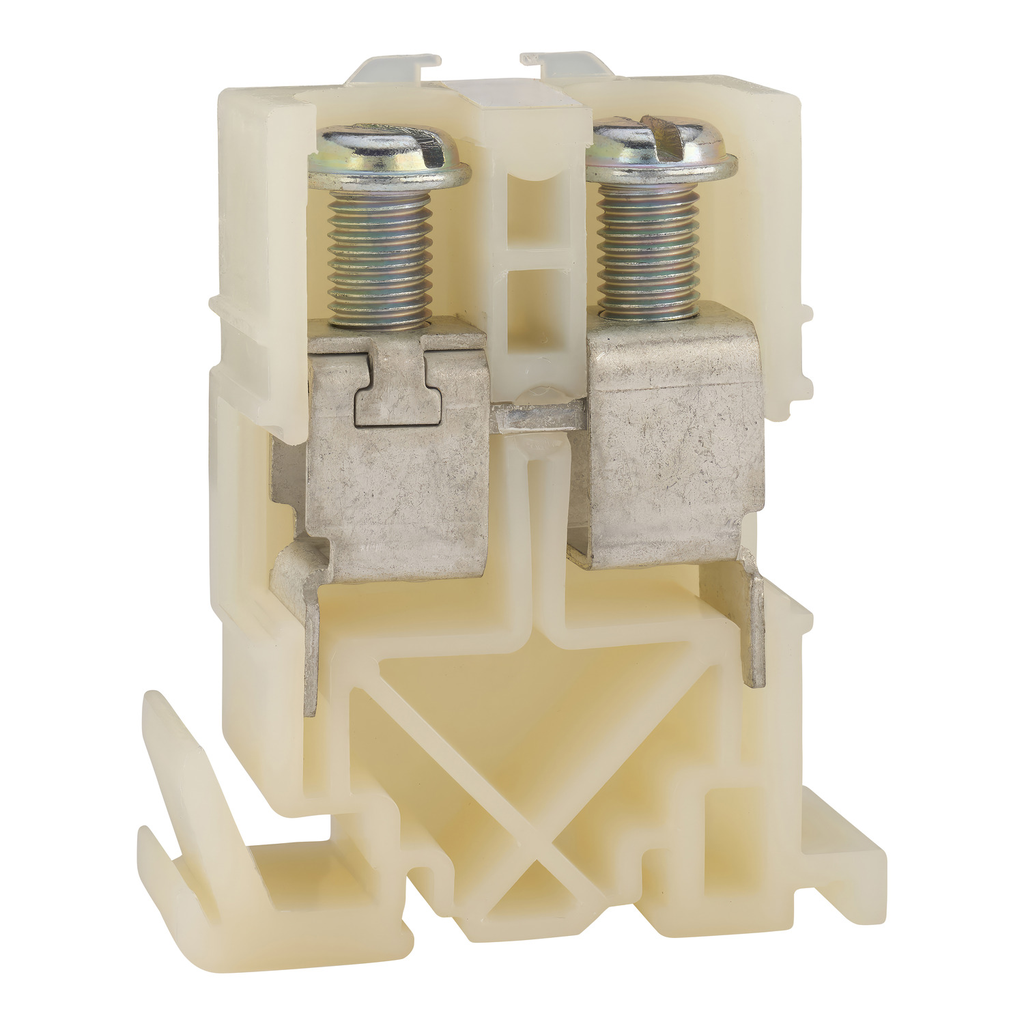

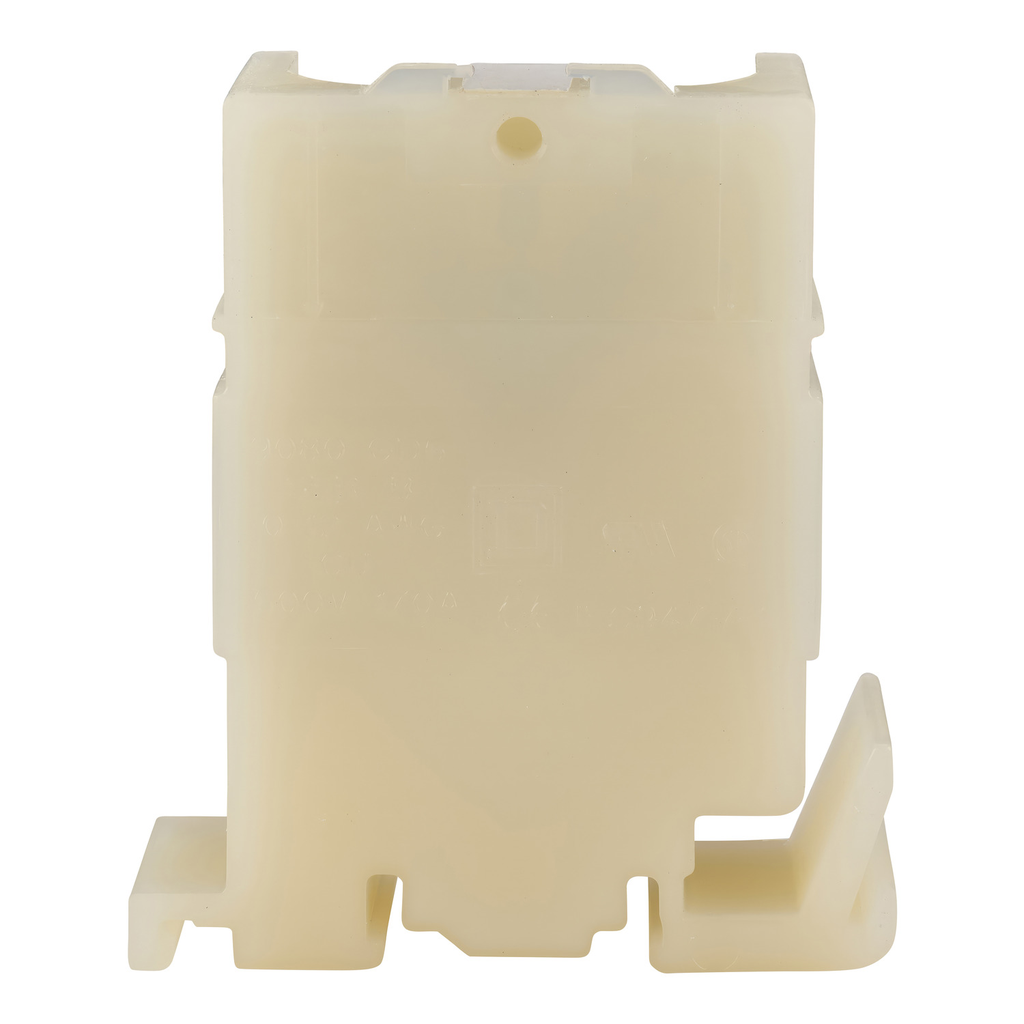

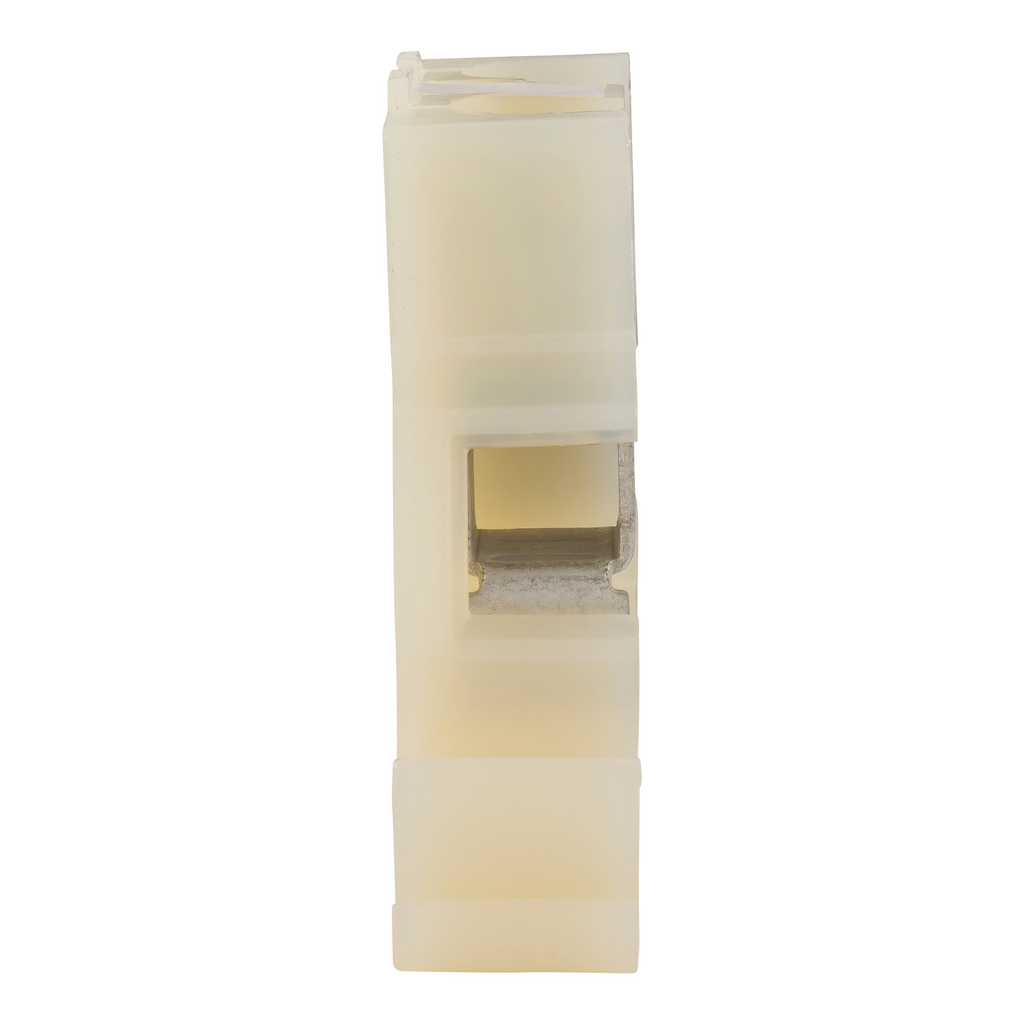

Square D 9080GD6 600 Volt 170 Amp 12 to 1/0 AWG 35 mm Din Rail Terminal Block

Manufacturer: Square-D / Schneider | Catalog # 9080GD6 | Cooper Electric Part # 90894
$14.20/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Each lug accepts 1 1/0 AWG, 1 #1 AWG, 1 #2 AWG, 1 or 2 #4 AWG, 1 to 3 #6 AWG, 1 to 5 #8 AWG, 1 to 6 #10 AWG or 1 to 7 #12 AWG wires. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications.

Technical Information

Amperage
180-180 Amp UL-170-170 Amp CSA
Applications
9080G,GD6B
Conductor Size
12-1/0 AWG
Current
170 Amp
Line Rated Current
170-170 A
Material
Nylon
Mounting Type
35 Mm DIN Rail,9080GH Track
Size
0.7 in
TC Connection
LUG TIN PLATED STEEL 45-50 LBF.IN : AWG 12...AWG 1/0 COPPER),TIN PLATED STEEL BOX LUGS
Type
GD6B;Terminal block
Voltage
600 Volt
Wire Size
AWG 12...AWG 1/0 copper

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901155027
Color
Natural
GTiN
00785901155027
Product UPC
78590115502

Dimensions

Depth
0.7 Inch
Height
2.71 Inch
Warranty Length
18 mth
Width
2.12 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File 62144 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9080GD6B
  • 9080GH76
  • 9080MH339
  • 9080MHA10
  • 9080GH136
  • 9080GH236
  • 9080GH10
  • 9080GH220
  • 9080GH60
