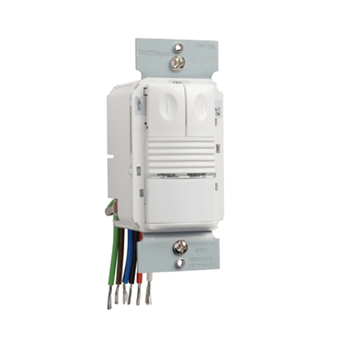

Product image for P&S WSP201-W PIR DUAL OCC SW SEN
Email

P&S WSP201-W PIR DUAL OCC SW SEN

Manufacturer: Pass & Seymour / Legrand | Catalog # WSP201-W | Cooper Electric Part # 908884
$83.53/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Bi-Level PIR Occupancy/Vacancy Sensor with Neutral, Major Coverage 35' x 30' Minor Coverage 20' x 15', White

Technical Information

Mounting Type
Wall
Number of Poles
1 Pole
Type
Bi-Level Occupancy Vacancy
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
adorne

General Product Info

12-Digit UPC
785007026597
Color
White
Product UPC
78500702659
UNSPSC
39121559

Dimensions

Depth
1.83 Inch
Height
2.73 Inch
Width
1.76 in

Certifications and Compliance

Country of Origin
Taiwan
Features
  • Choice of Auto-ON or Manual-ON operation, selectable for each relay. Auto adjustable time delays: automatic, fixed (5, 10, 15, 20, 25 or 30 minutes), walk-through, test-mode.
  • Selectable time delay automatically adjusts for maximum savings. Selectable walk-through mode turns lights off three minutes after the room is initially occupied if no motion is detected after the first 30 seconds. Selectable test mode allows quick and easy adjustments. Selectable audible alert for impending shutoff.
  • In AUTO-ON mode, if the sensor is manually turned OFF, AUTO-ON will not enable until no motion is detected for 5 minutes. This prevents the light from turning ON when it was intended they remain OFF. Ideal for presentations.
  • LED indicates occupancy detection. Built-in light level sensing with simple, one-step setup. Override mode allows sensor to operate as a service switch in the unlikely event of a failure. NEMA WD 7 guideline utilized for coverage testing. Sensitivity adjustment: PIR (high/low).
  • Coverage: 180 degrees, up to 1050 sq. ft.; major motion 35' x 30'; minor motion 20' x 15'. cULus listed. 5-year warranty.
  • Load: Incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
  • Requires Neutral
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
  • LEED Contribution: Yes
