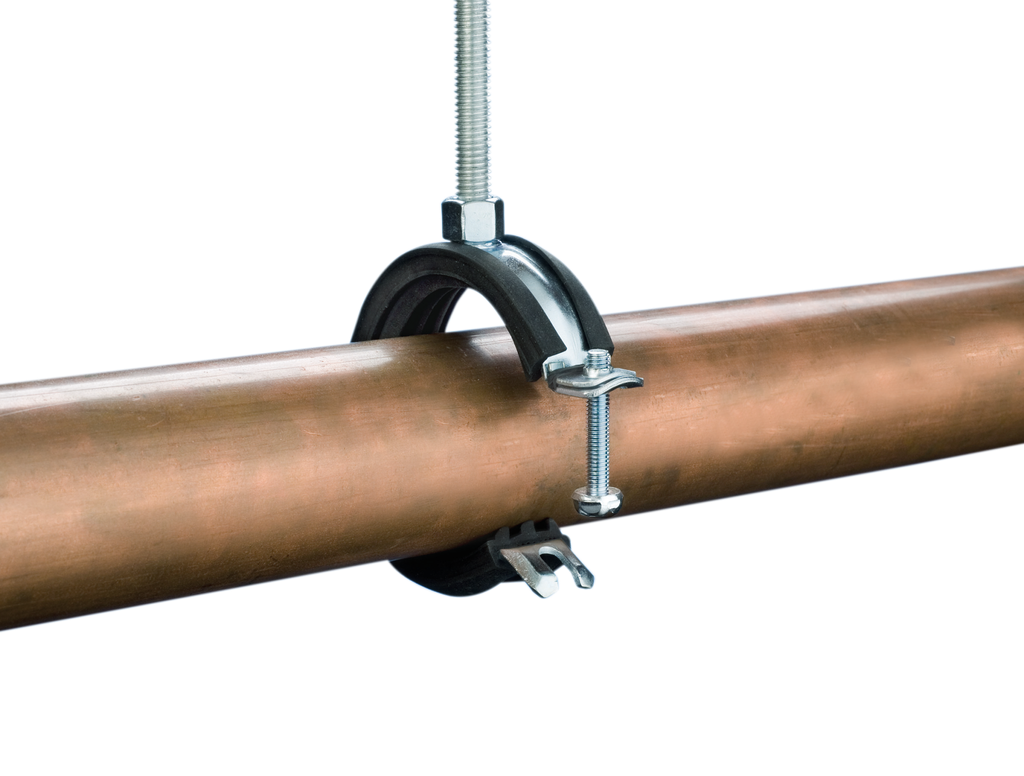

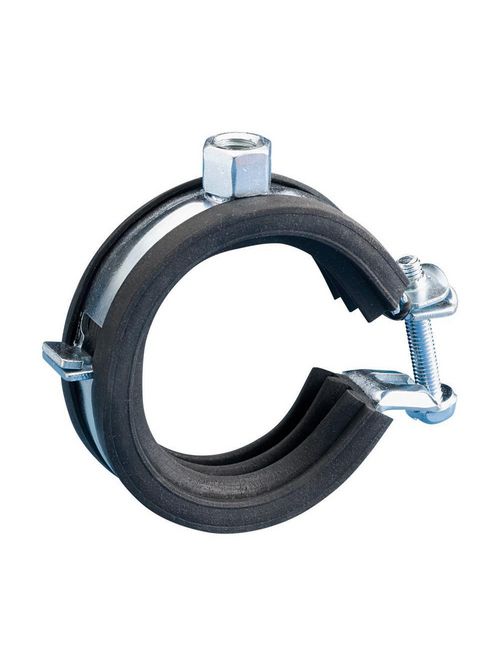

Caddy 454003 Caddy Superfix 454 Standard Duty, 0.75"-0.828" OD, 5/8" Copper Tube

Manufacturer: Erico, Inc | Catalog # 454003 | Cooper Electric Part # 907782
$559.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
nVent CADDY Superfix 454 Standard Duty, 0.75".0.828" OD, 5/8" Copper Tube

Technical Information

Applications
HVAC, Plumbing and Refrigeration
Material
Steel
Operating Temperature
-58 To 230 degrees F
Standard
None
Type
CADDY SUPERFIX 454 Standard Duty

Packaging

Standard Packaging Qty
100 pc

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856590453
Finish
Electro Galvanized
GTiN
00782856590453
Product UPC
78285659045
Weight
0.05 kg

Dimensions

Outer Diameter
0.750 in
Features
  • Recommended for the suspension of stationary non-insulated pipe lines
  • Easy-to-close clamp for steel pipe and copper tube
  • Unique hinged design eliminates the need to disassemble the clamp prior to installation

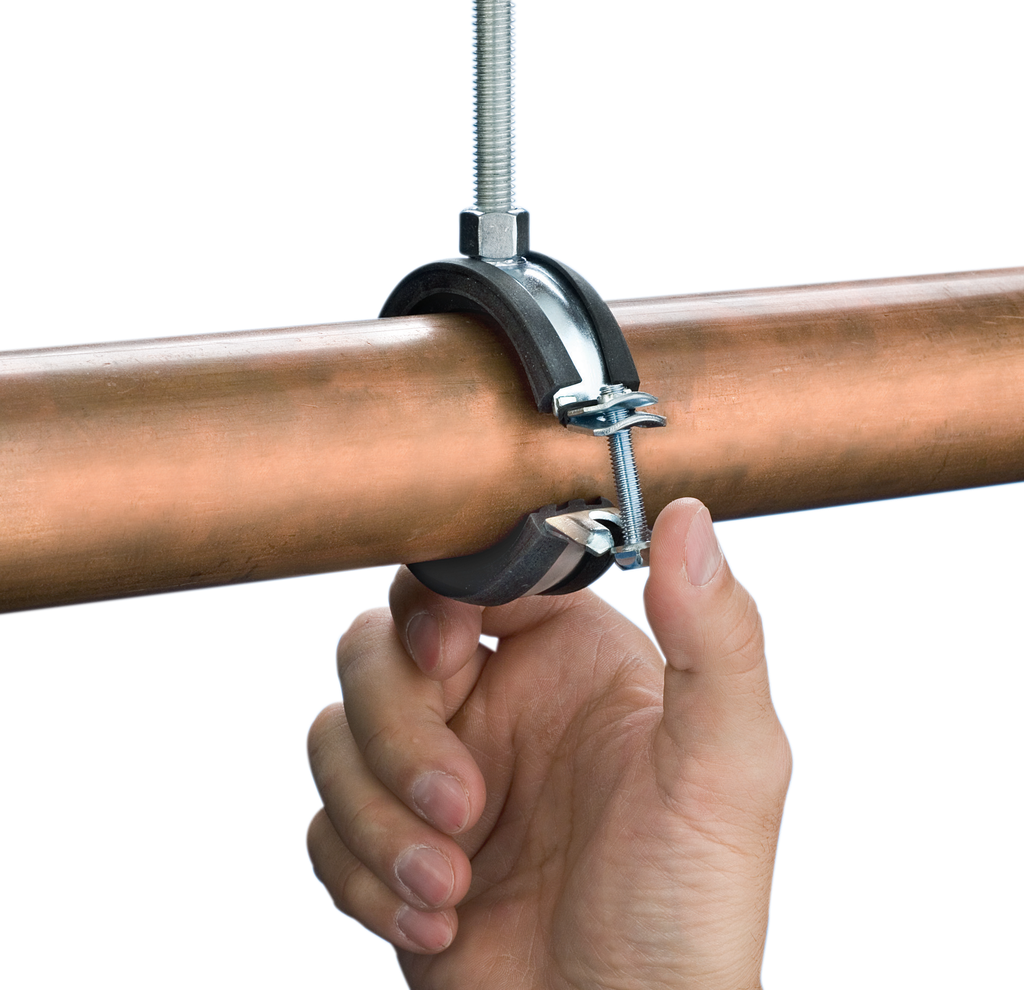

  • Clamp can be closed with one hand, without ever turning a screw
  • All-steel design of the closing mechanism retains strength even when exposed to heat
  • Comes with a welded 3/8\" cap nut, allowing easy attachment to threaded rod

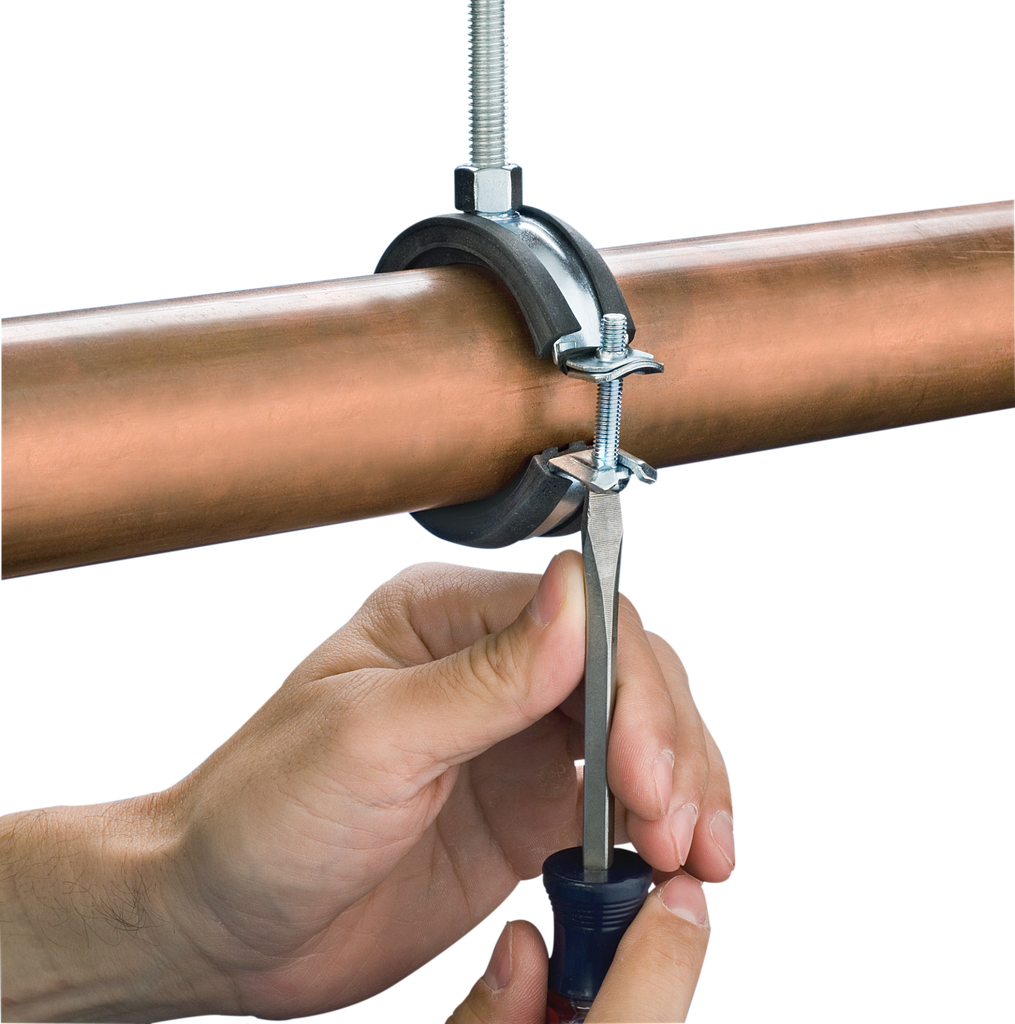

  • Combo head bolt works with slotted, hex, or Phillips drivers
  • Conforms with Manufacturers Standardization Society (MSS) SP-58 (Type 12)
  • Category II noise reduction according to DIN EN ISO 3822-1
  • Compliant for sound insulation design according to DIN 4109
  • Reaction-to-fire classification is \"E\" in compliance with DIN EN 13501-1
