3M 85-14 Multi-Mold Resin Splicing Kits

Manufacturer: 3M | Catalog # 7000132288 | Cooper Electric Part # 90754
$164.15/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet

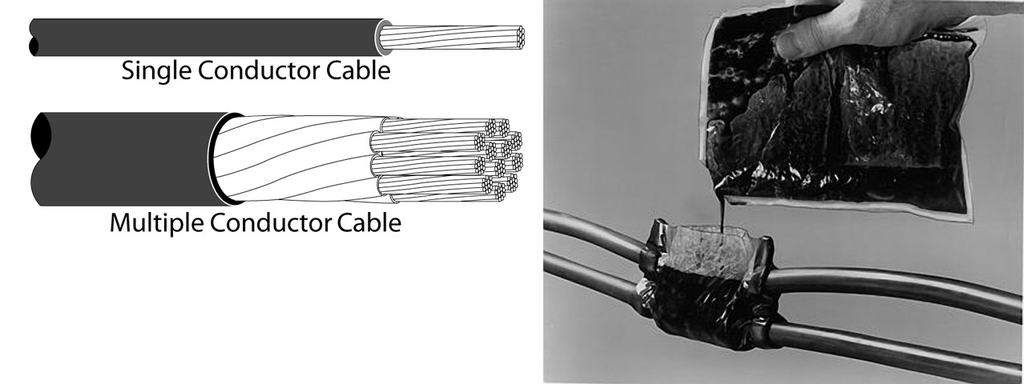

3M™ Scotchcast™ Multi-Mold Resin Splice Kit 85 Series is a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts. Splices may be inline, wye, X, butt and dead-end splice configurations (for non-shielded cable) using split bolts, H tap or C tap compression connectors.

Technical Information

Applications
For Agricultural, General Manufacturing, Mining, Oil and Gas, Transportation
Cable Size
2/0 AWG; 4/0 AWG
Cable Type
Power Cable
Conductor Size
2/0 AWG, 4/0 AWG
Connection Type
Adjustable Buckle Strap
Size
Standard
Splice Type
Resin
Type
Adjustable Buckle, Molded
Voltage
1 kV

Manufacturer Information

Brand
Scotchcast
Sub Brand
Scotchcast

General Product Info

12-Digit UPC
054007118480
Color
White
GTiN
00054007118480
Product Type
Resin Splice
Product UPC
05400711848

Certifications and Compliance

Country of Origin
USA
Features
  • Includes flexible film plastic mold with built-in spacer web and sealing strips along the adjacent edges
  • 3M™ Scotchcast™ Electrical Insulating Resin 2104 in a convenient closed mixing pouch
  • Includes comprehensive instruction booklet showing installation techniques for typical splice configurations, in both the horizontal and vertical positions.
  • Includes pressure-sensitive adhesive film sealing strip
  • RoHS 2011/65/EU Compliant
