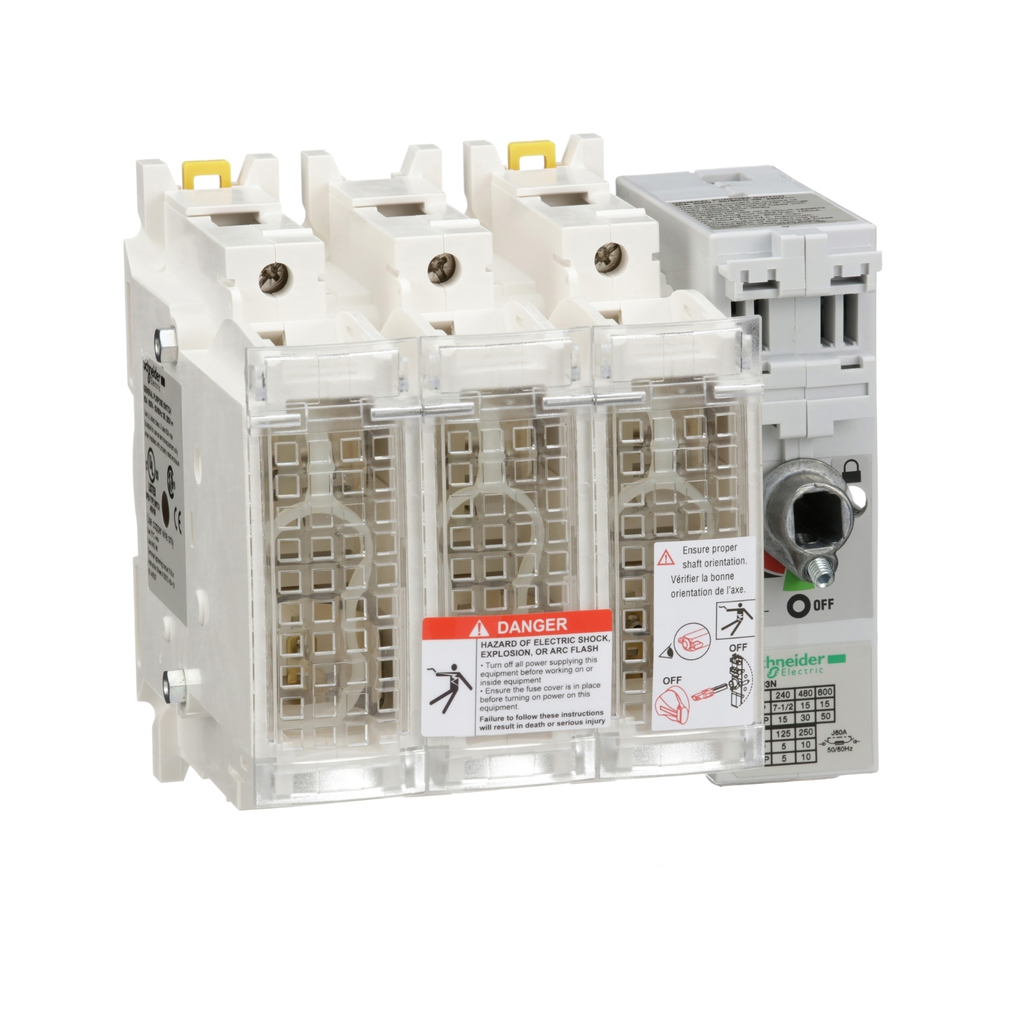

Square D GS2GU3N 600 VAC 60 Amp 3-Pole Class J Fusible Disconnect Switch

Manufacturer: Square-D / Schneider | Catalog # GS2GU3N | Cooper Electric Part # 906553
$365.90/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
1 available

For Delivery

Order by Tuesday 5:00pm ET for delivery Wednesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys GS fuse switch-disconnector, 3 poles (3P), 60A/750V, to be used with class J fuse links up to 60A, for motor applications up to 30kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
60 Amp
Applications
Protection
Contact Configuration
3 NO
Enclosure
IP20 WITH TERMINAL COVER CONFORMING TO IEC 60529
Fuse Type
UL
Number of Poles
3 Pole
Operating Temperature
-20-70 Adegrees C
Size
123 MM,136 MM,149.3 MM
Standard
CSA C22.2 No 4,UL98
Storage Temperature
-40-80 degrees C
TC Connection
POWER CIRCUIT LUGS-RING TERMINALS 6-16 MMA
Type
Switch-disconnector-fuse
Wattage
30 kW 400 Volt-40 kW 500 Volt-55 kW 690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GS2GU;TeSys GS

General Product Info

12-Digit UPC
606480512325
GTiN
03606480512322
Product UPC
78590154714

Dimensions

Depth
123 mm
Height
136 mm
Warranty Length
18 mth
Width
149.3 mm
