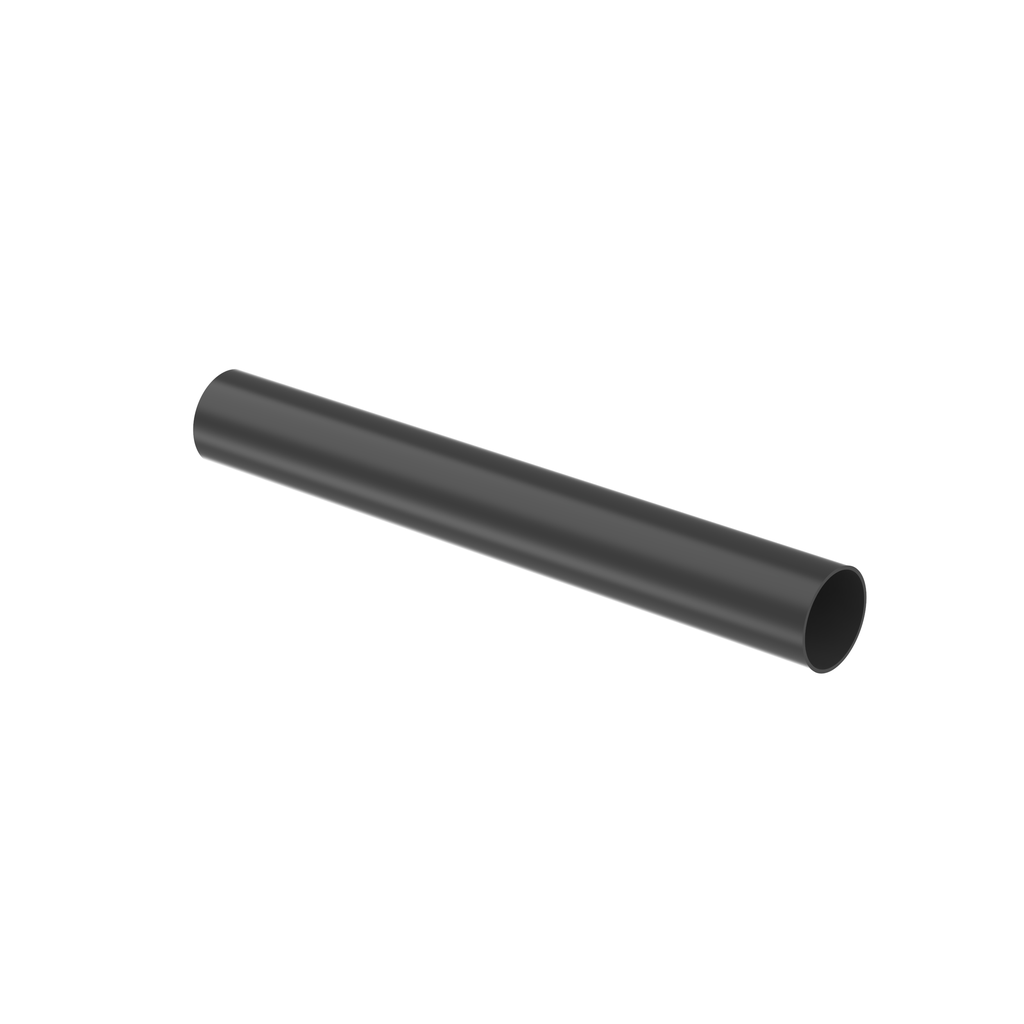

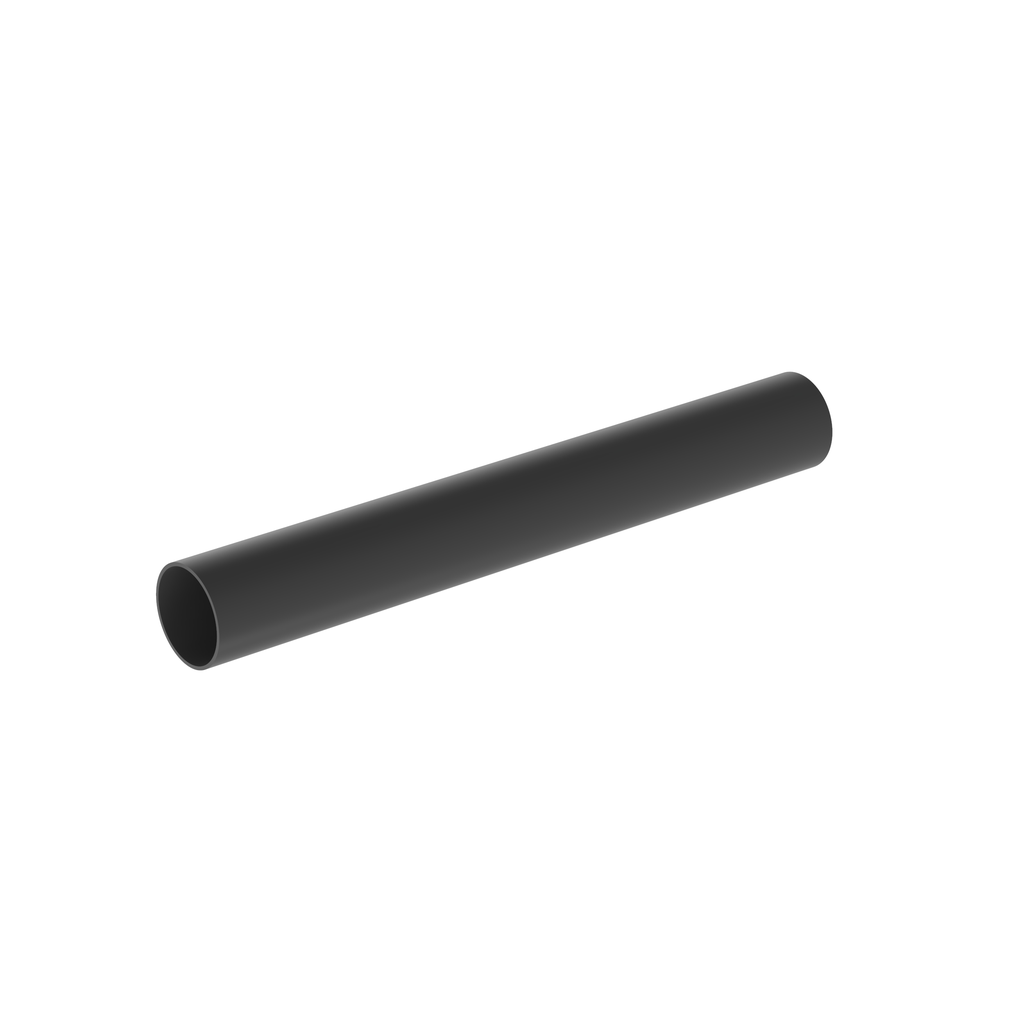

Panduit HSTT75-48-5 .75 Inch 19.0 mm Diameter Black Thin Wall Heat Shrink Tubing

Manufacturer: Panduit Corp | Catalog # HSTT75-48-5 | Cooper Electric Part # 90620
$23.34/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
13 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Safety Data Sheet Engineering Drawing

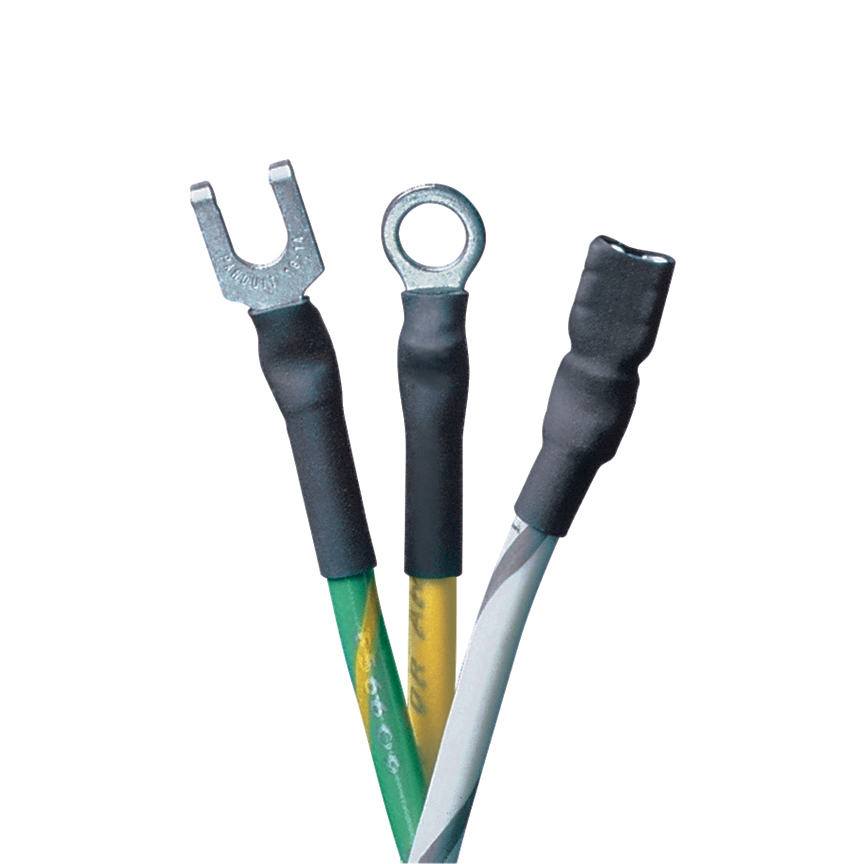

The HSTT75-48-5 Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67.F to 275.F (-55.C to 135.C). Flame retardant, cross-linked polyolefin. 0.75. Diameter x 4. Long (19.1 mm x 1.2 m). Color Black. 5 per package.

Technical Information

Applications
For use with 0.50 inch FM8 conduit bodies. Seals and protects.
Material
Polyolefin
Max Operating Temperature
135 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
2:1
Standard
Yes
Temperature Rating
-55 to 135 degrees C
Type
Wire-In Heat Detector With Battery Back Up

Packaging

Pkg Qty
5

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Dry-Shrink

General Product Info

12-Digit UPC
074983905942
Color
Black
GTiN
00074983905942
Product UPC
07498390594

Dimensions

Inside Diameter
9.5 mm
Length
1.2 m
Outside Diameter
19.1 mm
Overall Length
4 ft
Thickness
0.8 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
China
Standards and Certifications
  • Standards Met: UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
Prop 65
  • No
