3M 6105-B CONNECTOR ST COMPATIBLE M (7000058276)

Manufacturer: 3M | Catalog # 7000058276 | Cooper Electric Part # 90609
$4.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
3M Epoxy connectors feature a pre-radiused, zirconia ceramic PC ferrule designed to provide contact of fibers for low reflectance and low insertion loss.The 3M Epoxy SC and FC connectors are intermateable within NTT specifications. Singlemode Epoxy connectors are tested to Telcordia GR-326-CORE. These connectors are built to exacting ferrule length tolerances for maximum machine polish yield and bulk packaged to maximize factory cable assembly efficiency. 3M Epoxy connectors can also be used with an anaerobic adhesive for fast-cure interconnect applications.

Technical Information

Connection Type
ST

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007911449
Color
Black
GTiN
00054007911449
Product Type
Connector
Product UPC
05400791144
Overview

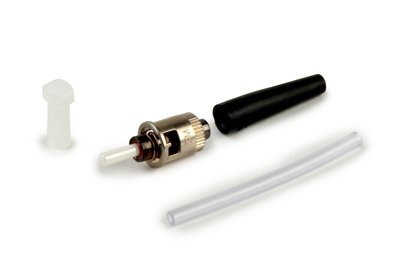

  • 3M™ ST Epoxy Jacketed Connector has a zirconia ceramic ferrule that reduces reflection problems and enhances stability through temperature change. This flame-retardant connector is suitable for use with an anaerobic adhesive for fast-cure interconnect applications.
  • Zirconia ceramic ferrule delivers contact of fibers and quality performance
  • 3M™ ST Epoxy Jacketed Connector has a pre-radiused, zirconia ceramic PC ferrule, which is designed to offer contact of fibers for low reflection and low insertion loss.
  • Nickel-plated zinc body and housing
  • For use with an anaerobic adhesive for fast-cure interconnect applications
  • Multimode ST connector for bi-directional data transfer
  • Accommodates 250 or 900 m fiber
  • Shell comes in steel color
  • Durable thermoplastic elastomer boot comes in black color
  • 1/bag, 60/carton
