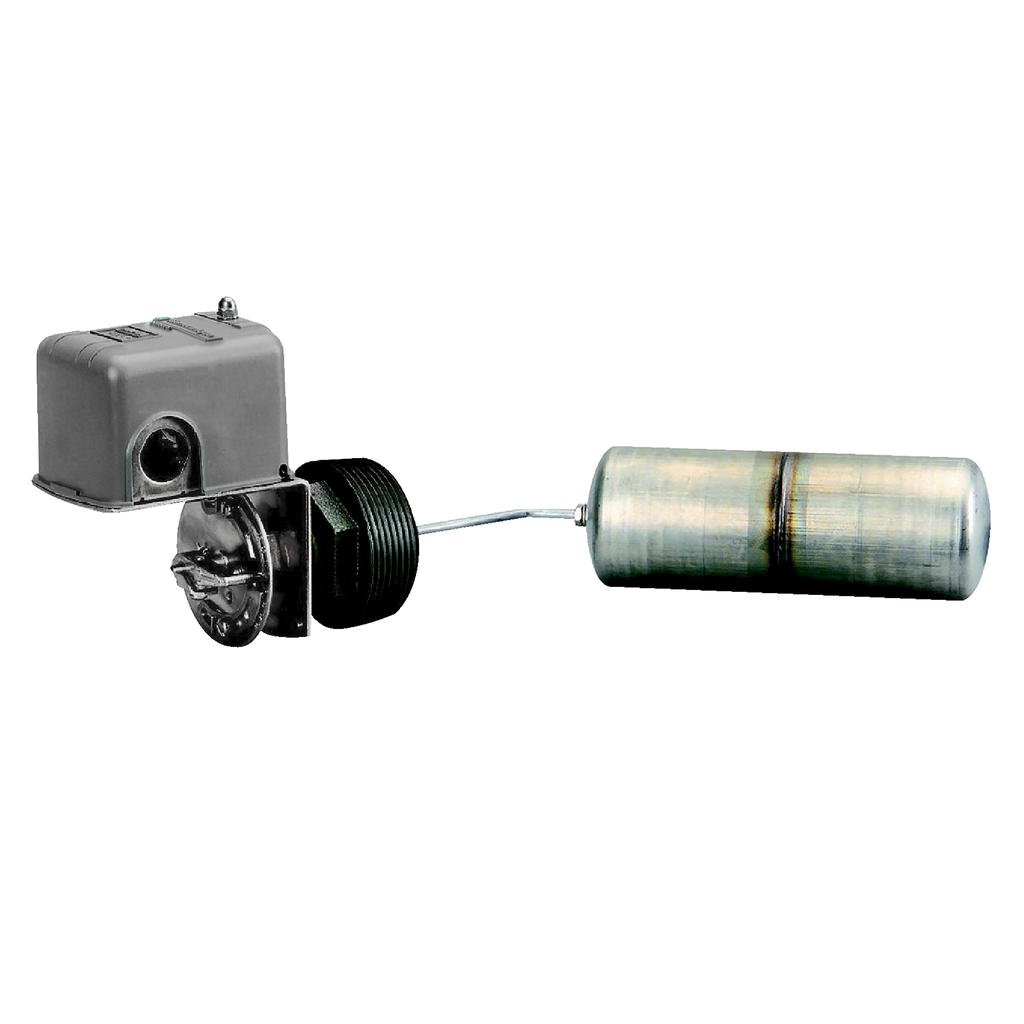

Product image for TES 9037HG34Z20 Float switch, Square-D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NC DPST DB contacts
Image thumbnail 0
Image thumbnail 1
Email

TES 9037HG34Z20 Float switch, Square-D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NC DPST DB contacts

Manufacturer: TES Electric | Catalog # 9037HG34Z20 | Cooper Electric Part # 905194
$156.45/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NC DPST DB contacts

Technical Information

Action
CONTACTS CLOSE ON LIQUID RISE
Applications
1.5 KW 2 HP)115 V AC, 1 PHASE-2.2 KW 3 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 1 PHASE-3.7 KW 5 HP)230 V AC, 3 PHASE-0.75 KW 1 HP)460 V AC, 3 PHASE-0.75 KW 1 HP)475 V AC, 3 PHASE-0.18 KW 0.25 HP)32 V DC-0.37 KW 0.5 HP)115 V DC-0.37 KW 0.5 HP)230 V DC,CLOSED TANK,FOR CLOSED TANK,LIQUID LEVEL CONTROL,POWER CIRCUIT
Enclosure
NEMA 1
Enclosure Material
Polypropylene
Mounting Type
Screw-in Bushing
Net Weight
4.8 lb
Number of Poles
2 Pole
Operating Cycles
60 cyc/mn
Standard
CE,UL 508
Storage Temperature
-22-220 degrees F
TC Connection
4 TERMINALS,SCREW-CLAMP TERMINALS 10 AWG
Temperature Rating
-22-220 Adegrees F
Type
FLOAT SWITCH
Voltage
575 VAC

Manufacturer Information

Brand
Telemecanique
Sub Brand
9037H

General Product Info

12-Digit UPC
785901328124
GTiN
00785901328124
Product UPC
78590132812
Weight
4.8 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA File LR25490,UL Listed File E12158
Country of Origin
Mexico
