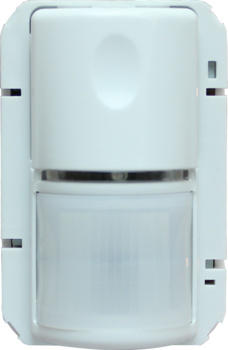

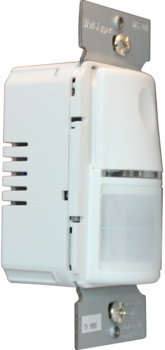

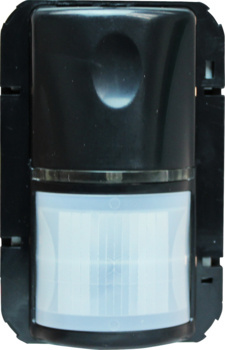

Product image for Wattstopper WS-301-W Passive Infrared Wall Switch Occupancy Sensor, 120/277V - White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Wattstopper WS-301-W Passive Infrared Wall Switch Occupancy Sensor, 120/277V - White

Manufacturer: Wattstopper / Legrand | Catalog # WS-301-W | Cooper Electric Part # 904760
$102.22/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Pick Up

at Ocean Opens Monday 7:00am ET
1 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Installation / Instruction Manual
WattStopper® Passive infrared (PIR) wall switch sensor turns lighting or fan loads on and off based on occupancy and ambient light level. The sensor replaces existing wall switches and fits behind a standard decorator wall plate. 180. coverage, maximum of 900 sq-ft shallow (1 inch) back housing and flying leads for easy installation. Built-in light level sensor. Optional neutral connection with break off tab to expose neutral terminals. Button provides positive tactile feedback. Load: 120 VAC, 0 to 1000 W ballast, LED, tungsten, 1/6 HP. 277 VAC, 0 to 1200 W ballast, LED, 1/6 HP.

Technical Information

Applications
For Offices, Conference Rooms, Lunch/Break Rooms
Enclosure
Plastic Housing
Indicator
True
Indoor Outdoor
Indoor
Input Voltage
240/277 VAC, 120 V
Load Rating
1000 W @ 120 VAC, 1200 W @ 240/277 VAC
Material
Plastic
Mounting Type
Wall
Number of Poles
1 Pole
Operating Cycles
1000000
Operating Temperature
35degrees C
Sensing Range
900 sq ft
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Switch Type
Motion Sensor
Temperature Rating
35 degrees C
Type
Indoor
Voltage
277 Volt

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935383
Color
White
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00754182935383
Product UPC
75418293538

Dimensions

Depth
1.55 Inch
Height
2.6 Inch
Length
2.6 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Custom two-tier Fresnel lens enhances detection at the desktop level
  • Light level sensor holds lights off when ambient lighting is above the preset level
  • Patented voltage drop protection
  • Zero crossing circuitry reduces stress on the relay and results in increased sensor life
  • Adjustable time delay and sensitivity
