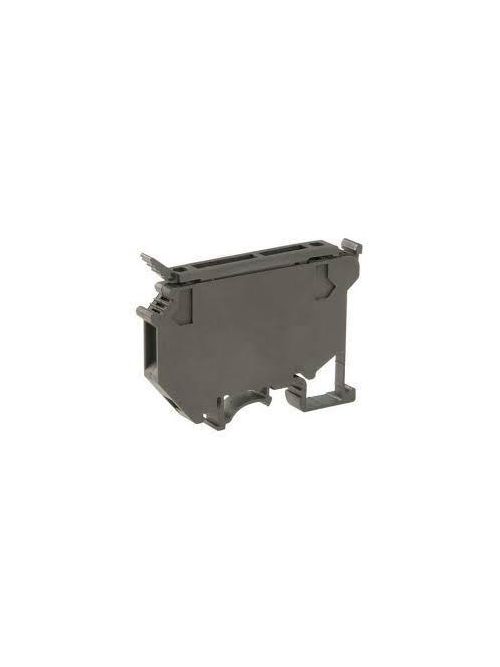

Product image for Square D NSYTRV42SF6 4 mm 2-Point Black 26 to 8 AWG Solid/Stranded Copper Screw Terminal Block
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Square D NSYTRV42SF6 4 mm 2-Point Black 26 to 8 AWG Solid/Stranded Copper Screw Terminal Block

Manufacturer: Square-D / Schneider | Catalog # NSYTRV42SF6 | Cooper Electric Part # 903416
$18.39/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 6.3x32 mm fuses. This fuseholder has a UL rating of 10 A at 600 volts. The two terminal points have screw termination. The terminals will accept wires from 26 AWG to 8 AWG. With the help of a screw driver this fuse holder block will mount on 35mm DIN rail. Each block is 2.38 inches tall, 0.40 inches wide and 3.11 inches deep. Each wieghs 0.71 oz. The fuse blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.

Technical Information

Amperage
10 Amp
Applications
PROTECTION
Dielectric Strength
1000 V
Line Rated Current
10-10 A
Material
Polyamide
Mounting Type
Clip-On
Net Weight
34.2 g
Number of Terminations
2
Range
Linergy NULL
Size
10.2 MM,60.5 MM,79 MM
Strip Length
9 mm
TC Connection
1 X SCREW TERMINAL UPSTREAM-1 X SCREW TERMINAL DOWNSTREAM
Type
SPACIAL ENCLOSURES,FUSED DISCONNECT,TERMINAL BLOCK
Voltage
500 Volt
Wire Size
0.2-4 MMA, FLEXIBLE WITHOUT CABLE END-0.2-4 MMA, FLEXIBLE WITH CABLE END-0.5-16 MMA, SOLID WITH CABLE END,16 MMA

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LINERGY,TRV

General Product Info

12-Digit UPC
606480532361
Color
Black
GTiN
03606480532368
Product UPC
78590194371
Weight
34.2 g

Dimensions

Height
60.5 mm
Length
79 mm
Warranty Length
18 mth
Width
10.2 mm

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,CURus,EAC
Country of Origin
Turkey
Compatible Products
  • NSYTRAAB35
  • NSYTRAABV35
  • NSYTRAATM1
  • NSYTRAATP1
  • NSYTRASB4
  • NSYSDR200BD
  • NSYTRABCV35
