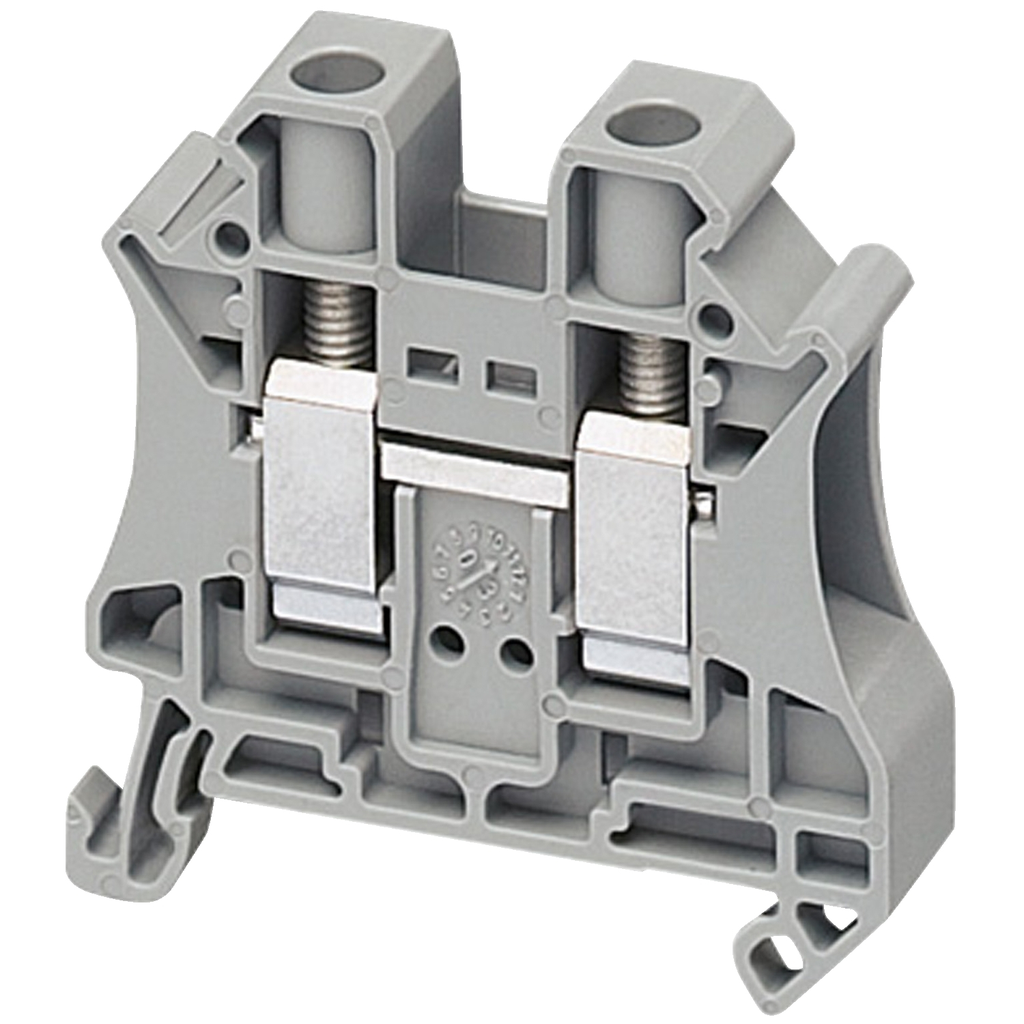

Square D NSYTRV102 10 mm 2-Point Gray 20 to 6 AWG Solid/Stranded Copper Screw Terminal Block

Manufacturer: Square-D / Schneider | Catalog # NSYTRV102 | Cooper Electric Part # 902962
$3.45/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
18 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 10 mm. nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 57A conforming to EN/IEC 60947-7-1, 65A conforming to CSA/cURus and 54A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 .C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Technical Information

Amperage
57 Amp
Applications
LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK
Conductor Size
0.02 in (10 mm)
Dielectric Strength
1000 V
Line Rated Current
54-54 A
Material
Chromium-nickel Steel,Copper Alloy,Polyamide
Mounting Type
Clip-On
Net Weight
18 g
Number of Terminations
2
Size
1.87 in
Strip Length
10 mm
TC Connection
1 X SCREW TERMINAL UPSTREAM M4)-1 X SCREW TERMINAL DOWNSTREAM M4)
Tool Type
Connection screwdriver;Disconnection screwdriver
Type
Spacial enclosures;Terminal block;Passthrough
Voltage
1000 Volt
Wire Size
0.02 in (10 mm)

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TRV;Linergy

General Product Info

12-Digit UPC
360648053203
Color
Gray
GTiN
03606480532092
Product UPC
78590186039
Weight
18 g

Dimensions

Height
1.87 in
Length
1.88 in
Warranty Length
18 mth
Width
0.4 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX,CSA,CURus,DNV,EAC,GL,IEC-Ex,LR,VDE
Country of Origin
Germany
Connections Terminals
  • 1 x screw terminal upstream M4)
  • 1 x screw terminal downstream M4)
  • 1 x screw terminal downs
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010556_3D-CAD&p_File_name=MCADPE0010556_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010556_3D-CAD&p_File_name=MCADPE0010556_2D-back.dwg
  • https://downlo
Range Compatibility
  • PrismaSeT G
  • PrismaSeT P
  • PrismaSet HD
  • PrismaSeT Pack 250
  • PanelSeT
  • Mureva
  • PrismaSeT XS
  • TeSys
Surface Resistance
  • 1000 G? IEC 60093
  • 1000 G? VDE 0303-T30
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0 kg CO2 eq.
  • 0.001381211
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.04661776
  • 0 kg CO2 eq.
Related Products
  • NSYTRV102BL
  • NSYTRV102PE
Material
  • polyamide 6/6: insulating case
  • copper alloy: connector and screw
  • copper alloy: commoning link
  • chromium-nickel steel: spring
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.1 kg CO2 eq.
  • 0.102391656
Dielectric Constant
  • 3.7 at 1 MHz
Creep Resistance
  • 500 CTI (> 400 kB) IEC 60093
  • 500 CTI (> 400 kB) VDE 0303-T30
Accessories
  • NSYTRAAB35
  • NSYTRAABV35
  • NSYTRAC22
  • NSYTRAP22
  • NSYTRAL102
  • NSYTRALV102
  • NSYTRAATM1
  • NSYTRAATP1
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • System Integrator
Flame Retardance
  • V0 0.8 mm UL 94
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 11 kg CO2 eq.
  • 10.58601818
Line Rated Current
  • 57-57 A EN/IEC 60947-7-1
  • 65-65 A UL
  • 65-65 A CSA
Accessory Products
  • NSYTRAAB35
  • NSYTRAABV35
  • NSYTRAC22
  • NSYTRAP22
  • NSYTRAL102
  • NSYTRALV102
  • NSYTRAATM1
  • NSYTRAATP1
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SI
Dielectric Strength
  • 1000 V IEC 60243-1
Tool Type
  • connection screwdriver
  • disconnection screwdriver
Cable Cross Section
  • 0.2-10 mm², solid with cable end
  • 0.2-10 mm², flexible with cable end
  • 0.5-16 mm², solid without cable end
  • 0.5-16 mm²,
Carbon Footprint Of The Distribution Phase A4
  • 0.002209987
  • 0 kg CO2 eq.
Color Options
  • NSYTRV102BL
  • NSYTRV102PE
Dielectric Loss
  • 0.01 at 1 MHz IEC 60250
  • 0.01 at 1 MHz VDE 0303-T4
Resistivity
  • 10000 M?.m IEC 60093
  • 10000 M?.m VDE 0303-T30
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Ambient Air Temperature For Operation
  • -40-130 °C IEC 60216-1
  • -40-130 °C VDE 0304-T21
UE Rated Operational Voltage
  • 1000 V EN/IEC 60947-7-1
  • 600 V CSA
  • 600 V UL
