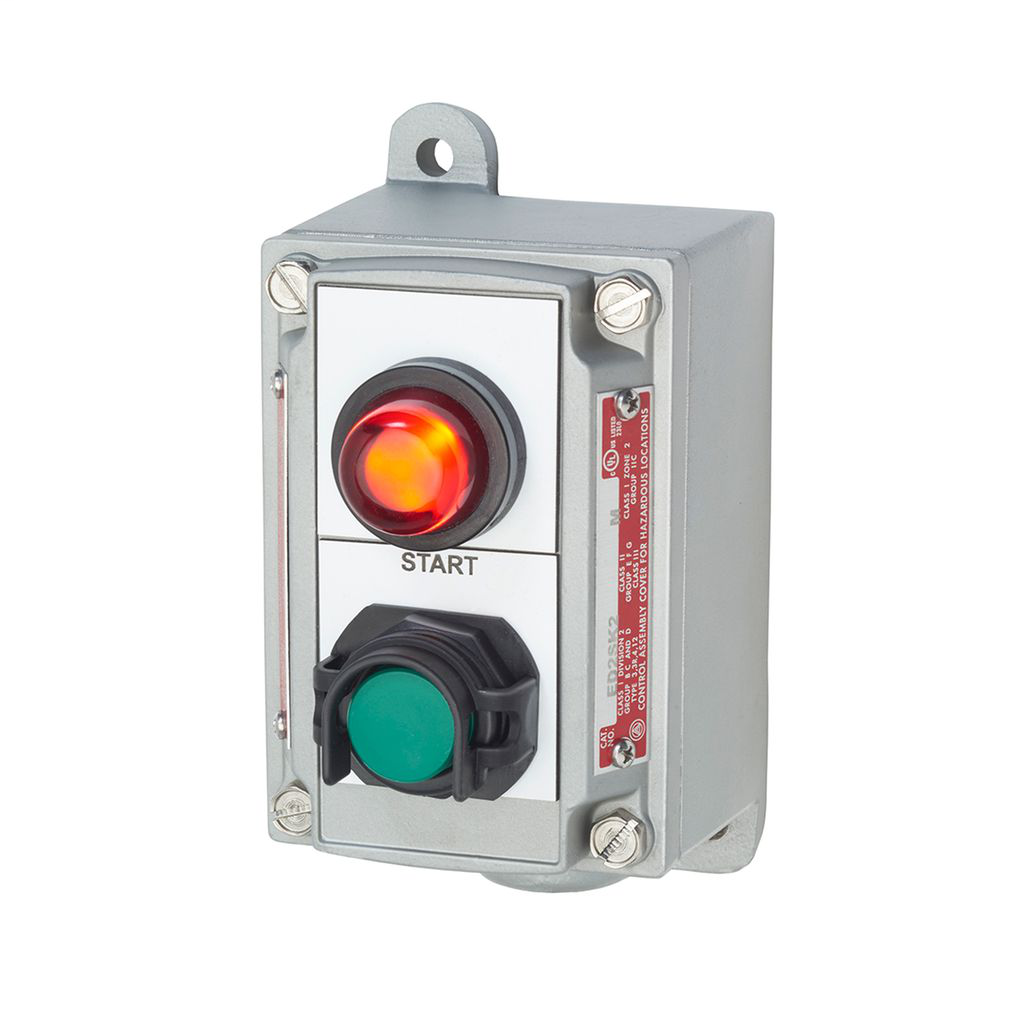

Appleton UCPB2GR UNICODE & CONTENDER 2X4

Manufacturer: Appleton Electric | Catalog # UCPB2GR | Cooper Electric Part # 901243
$397.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Appleton™ Division 2 Contender™ Series factory sealed control stations are for use in washdown areas and other damp, wet and highly corrosive areas for control operation of motors and other equipment. A variety of push buttons and selector switches are available for use in conjunction with contactors or magnetic starters for remote control of motors in hazardous locations. Pilot lights are available to provide visual assurance that an electrical function is being performed at a remote or local location.

Manufacturer Information

Brand
Appleton

General Product Info

12-Digit UPC
781381806312
GTiN
00781381806312
Product UPC
78138180631
Features
  • Factory sealed, eliminates the need for adding sealing fittings and compound at each conduit entrance
  • Epoxy powder coat finish for enhanced corrosion resistance
  • Corrosion resistant captive stainless steel screws holds cover to body
  • Silicone gasket ensures high degree of water ingress protection
  • Bodies furnished with internal ground screw and external ground lug
  • Wide variety of devices and options results in a control station tailor-made to the application
  • Pilot light employs LED cluster with lifetime of 100,000 hours that can be used at either 120 Vac or 240 Vac. Optional pilot light has 12/24 Vdc ratings
  • Improved pilot light featuring enhanced circuitry to prevent ghost voltage
  • The Labyrinth switch used in push buttons and selector switches is rated A600 heavy pilot duty and P150
  • Push buttons and selector switches have Vac and Vdc ratings as standard
