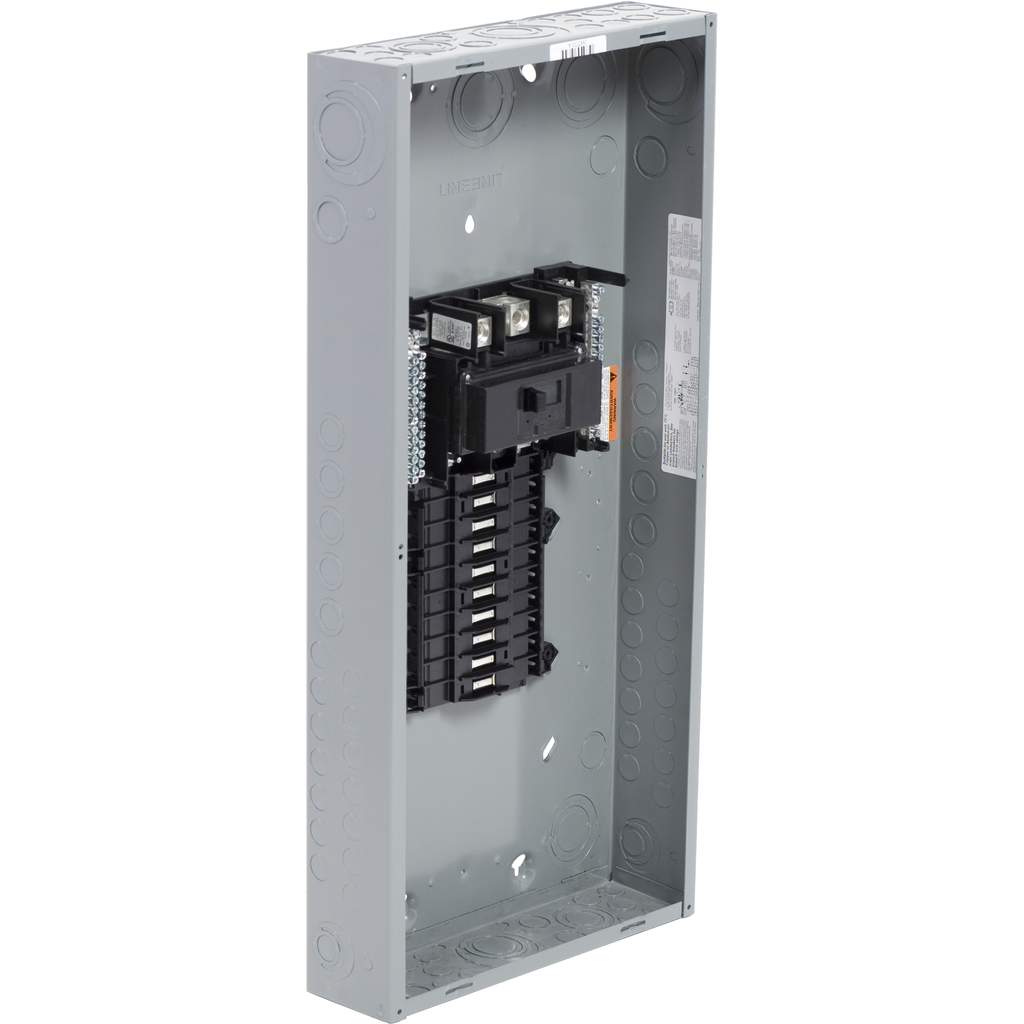

Product image for Square D QO12040M200 Load Center QO MB 200A 120/240V 1Ph 20SP NEMA-1
Image thumbnail 0
Image thumbnail 1
Email

Square D QO12040M200 Load Center QO MB 200A 120/240V 1Ph 20SP NEMA-1

Manufacturer: Square-D / Schneider | Catalog # QO12040M200 | Cooper Electric Part # 90117
$734.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Industry leading offer since 1955 with features engineered for faster installation, reliability and quality. Contractors installing QO know it.s the World.s Finest!

Technical Information

Amperage
200 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Cable Size
AWG 4...250 KCMIL ALUMINIUM/COPPER
Cover Type
ORDER SEPARATELY
Enclosure
9,NEMA 1 INDOOR,BAKED ENAMEL GREY,WELDED SHEET STEEL
Enclosure Material
Steel
Interrupt Rating
22 kAIC
Line Rated Current
200 A
Material
Copper
Number of Circuits
40
Number of Phases
1 Phase
Number of Spaces
20
Short Circuit Current
22 kA
Type
LOAD CENTER
Voltage
120/240 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901847823
GTiN
00785901847823
Product UPC
78590184782

Dimensions

Warranty Length
18 mth
Width
14.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL,UL
Country of Origin
USA
  • Commercial
  • Residential
  • Industrial
  • Remodels/Upgrades
  • Agricultural
  • Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time.
  • Indoor enclosures designed to rotate 180 degrees to accommodate top or bottom service entrance feed, saving expensive service cable.
  • Split branch neutral with up to 50% more terminations than UL requirement -- simplifies wiring and reduces clutter.
  • Combination slot/square-drive neutral, ground, and cover screw accommodate both standard flat blade screwdrivers and square-head drivers. Three ground bar mounting locations (left, right, and end) make it easier to wire.
  • Single, captive interior mounting screw can't be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection.
  • Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements.
  • Standard 22,000/10,000 ampere series short circuit current rating on main breaker load centers provides increased application capability.
  • Exclusive shielded copper bus features electro tin-plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior.
  • QO three-phase main circuit breaker panels can be field upgraded to provide 100,000A short circuit current ratings.
  • Backed Out Neutral Screws save labor and installation time.
