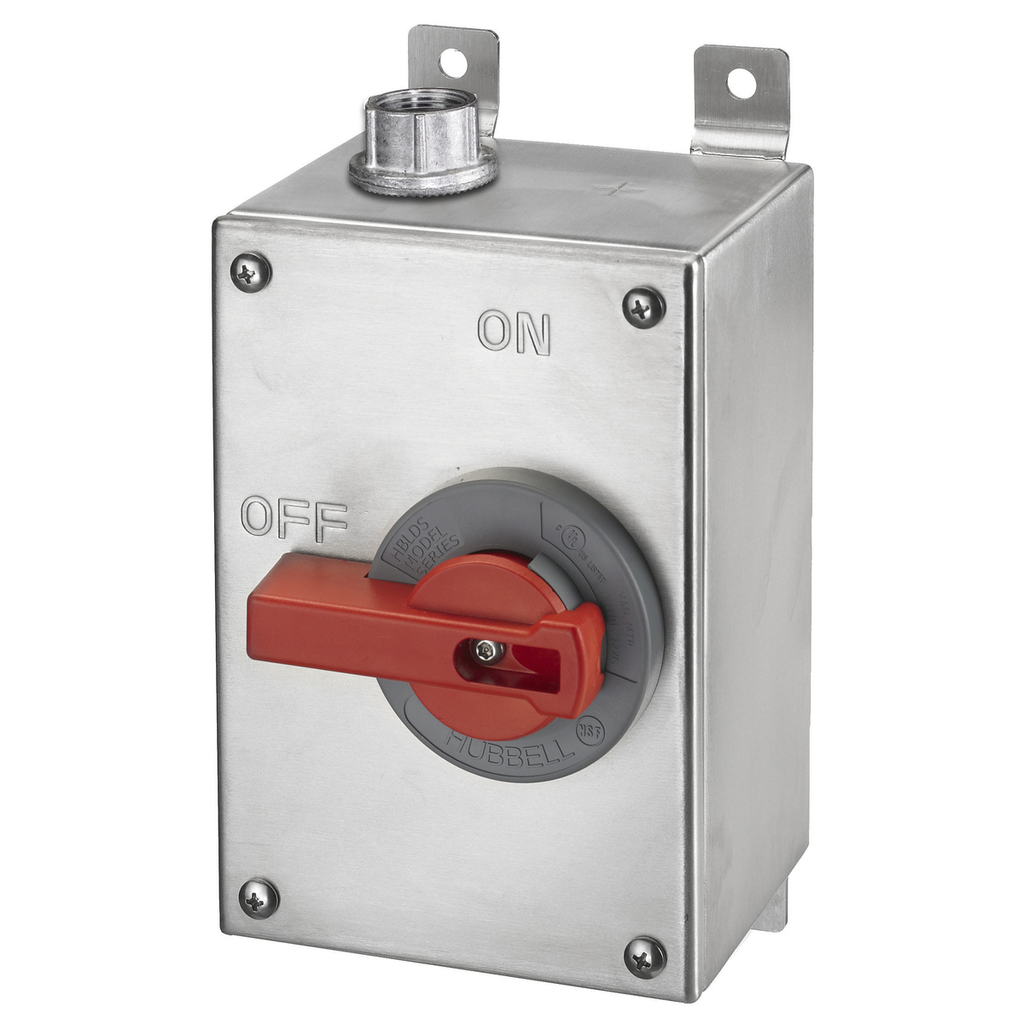

Product image for Hubbell HBLDS3SSVFDDISCONNECT, 30A UNFUSED, 4X, SS, w/AC2
Email

Hubbell HBLDS3SSVFDDISCONNECT, 30A UNFUSED, 4X, SS, w/AC2

Manufacturer: Hubbell Wiring Device | Catalog # HBLDS3SSVFD | Cooper Electric Part # 901159
$769.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Motor Controls, Industrial Grade, VFD Drive, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure

Technical Information

Action
Snap
Actuator
Lever
Amperage
30 Amp
Applications
Labelless
Contact Configuration
Two Position
Contact Rating
30A
Current
30 Amp
Enclosure
Type 4X, IP69k
Material
Composite
Mounting Type
DIN Rail
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Cycles
6k
Operating Temperature
-40 degrees C
Size
8.38 in x 4.87 in x 5.39 in
Style
Heavy Duty
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
Non-Fusible, Circuit-Lock
Voltage
600 Volt
Wattage
18000 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Circuit-Lock

General Product Info

12-Digit UPC
783585242750
Color
Gray
Environmental Conditions
Flammability UL94-5VA and V0 Classification
GTiN
00783585242750
Housing Material
Stainless Steel
Product Series
Non-Fused
Product UPC
78358524275
Shape
Square Top
Used With
Variable Frequency Drives

Dimensions

Height
5.39 Inch
Length
8.38 Inch
Width
4.87 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Formed in nonporous 304 stainless steel
  • IP69k and Type 4X,12K water ingress protection
  • Certified by NSF for hygiene in food processing applications
  • Highly visible red handle which meets OSHA Lockout/Tagout capabilities
  • Accepts up to 2 Auxiliary contacts
