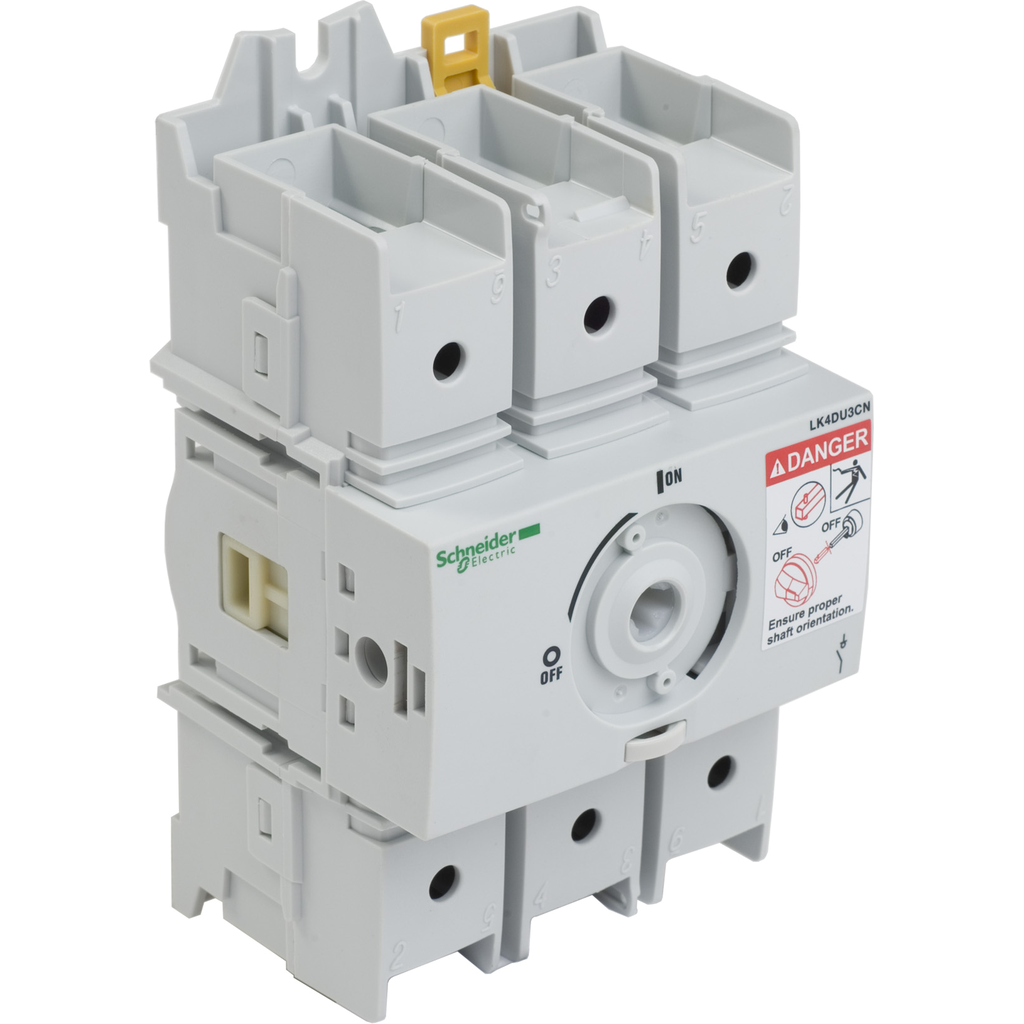

Square D LK4DU3CN 600 Volt 30 Amp 3-Pole Non-Fusible Disconnect Switch

Manufacturer: Square-D / Schneider | Catalog # LK4DU3CN | Cooper Electric Part # 899262
$237.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Disconnect Switch, TeSys LK4 Non fusible, 25hp at 600VAC, 3 pole, max 32A rated, plate mount

Technical Information

Actuator
Rotary handle
Amperage
32 A400 V AC AC-22A IEC-32 A400 V AC AC-23A IEC-32 A690 V AC AC-22A IEC-32 A690 V AC AC-23A IEC-30 Amp CSA-30 Amp UL
Applications
10 HP 240 V 30 A AC-20 HP 480 V 28 A AC-25 HP 600 V 28 A AC
Number of Poles
3 Pole
Operating Cycles
6k
Rated Power
15 kW
Size
2.52 in
Standard
CSA C22.2 No 4,IEC 60947-3,UL98
TC Connection
LUGS-RING TERMINALS 1 4-4 MMA
Type
Non-fusible disconnect switch;Disconnect Switch
Voltage
600 Volt
Wattage
15 kW 400 Volt-18.5 kW 500 Volt-25 kW 690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TeSys LK

General Product Info

12-Digit UPC
606480510413
GTiN
03606480510410
Product UPC
78590133346

Dimensions

Depth
64 mm
Height
125 mm
Warranty Length
18 mth
Width
79.5 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
China
