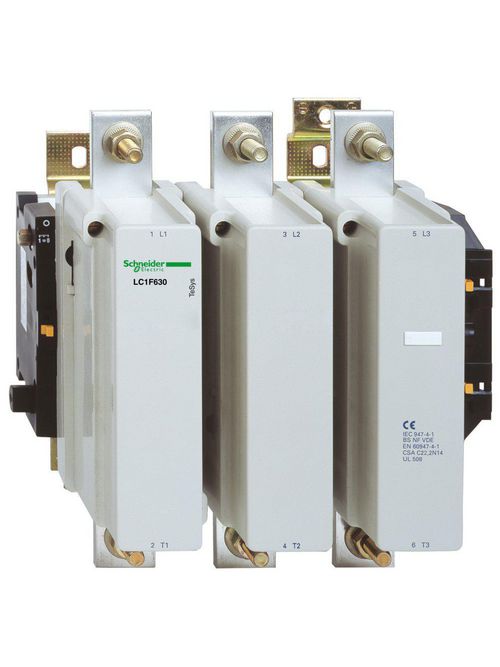

Product image for Square D LC1F630N7 600 VAC 630 Amp 3-Pole 1NO Panel Mount Full Voltage Non-Reversing IEC Contactor
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Square D LC1F630N7 600 VAC 630 Amp 3-Pole 1NO Panel Mount Full Voltage Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LC1F630N7 | Cooper Electric Part # 898756
$6,474.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 630 A - coil 415 V AC

Technical Information

Applications
RESISTIVE LOAD-MOTOR CONTROL
Coil Voltage
415 V AC 40...400 HZ,<= 1000 V AC 50/60 HZ- <= 460 V DC
Contact Configuration
3 NO
Contact Rating
1000 A 40 AC-1250 A
Impedance
0.12 MOhm - Ith 1000 A 50 Hz
Net Weight
18.6 kg
Operating Cycles
1200 cyc/h 131 F (55 C)
Operating Temperature
-40-70 Adegrees C,-5-55 Adegrees C
Range
TeSys
Size
255 MM,304 MM,309 MM
Standard
EN 60947-1,EN 60947-4-1,IEC 60947-1,IEC 60947-4-1,JIS C8201-4-1
Storage Temperature
-60-80 degrees C
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMASOLID WITHOUT CABLE END-POWER CIRCUIT BAR 2 60 X 5 MM-POWER CIRCUIT BOLTED CONNECTION
Type
Contactor
Voltage
1000 Volt
Wattage
120 Watt AC-1 - 48 Watt AC-3

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS F

General Product Info

12-Digit UPC
785901141501
GTiN
03389110227161
Product UPC
78590114150
Weight
41.01 lb

Dimensions

Depth
255 mm
Height
304 mm
Warranty Length
18 mth
Width
309 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ABS,BV,CB,CCC,DNV,LROS (Lloyds Register Of Shipping),RINA,RMRoS,UKCA,UL
Country of Origin
Czech Republic
