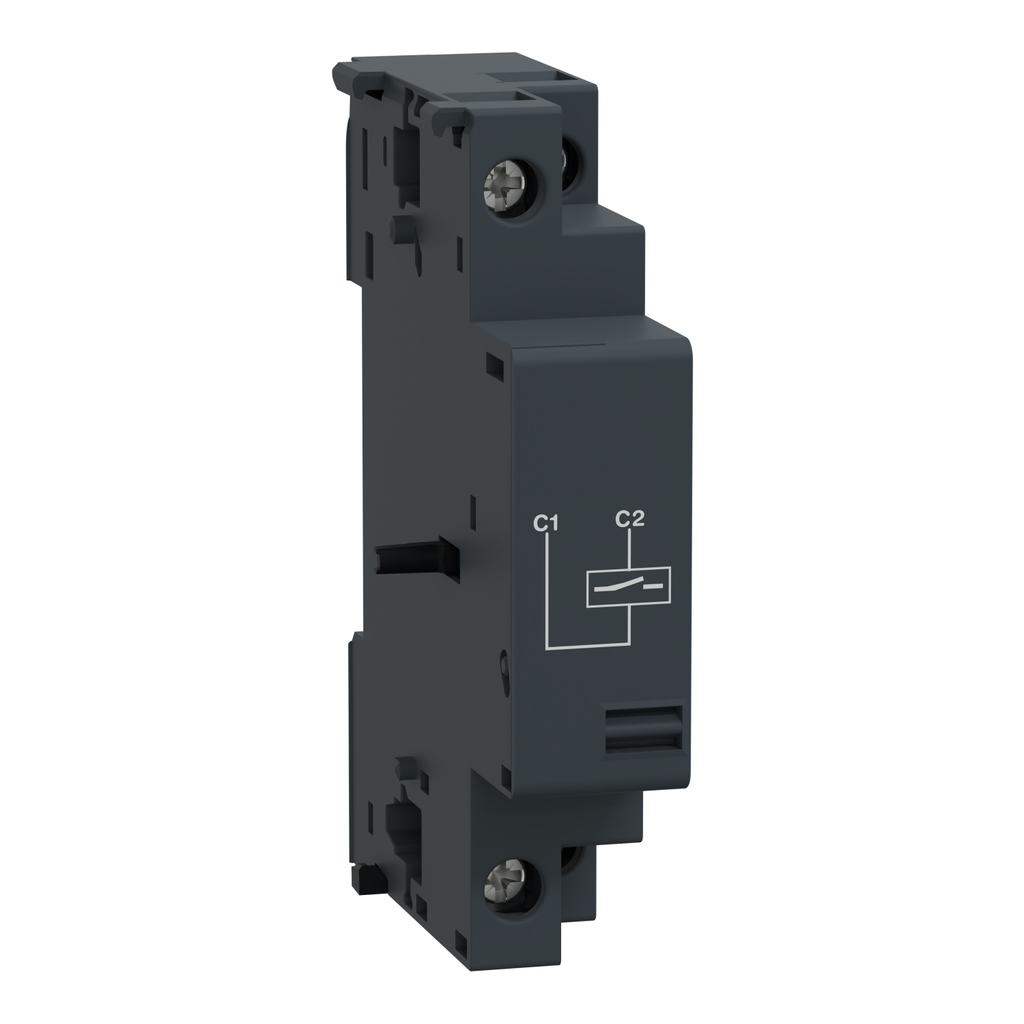

Square D GVAS226 220 to 240 VAC Manual Starter Shunt Trip

Manufacturer: Square-D / Schneider | Catalog # GVAS226 | Cooper Electric Part # 898135
$80.20/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys GV electrical trip, MX shunt release, 220-240V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
GV2LGV2LEGV2MEGV2PGV3LGV3P
Net Weight
0.105 kg
Range
TeSys
TC Connection
SCREW CLAMP TERMINALS 1 0.75-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID- SCREW CLAMP TERMINALS 2 0.75-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.75-1.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.75-1.5 MMAFLEXIBLE WITH CABLE END
Type
SHUNT TRIP GVAS
Voltage
600 Volt AC UL 508690 Volt AC IEC 60947-1600 Volt AC CSA C22.2 NO 14

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS TESYS GV2TESYS GV3

General Product Info

12-Digit UPC
389110343741
Color
Gray
GTiN
03389110343748
Product UPC
78590121248
Weight
0.105 kg

Dimensions

Depth
66 mm
Height
89 mm
Warranty Length
18 mth
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Country of Origin
Czechia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • GV2ME08
  • GV2ME10
  • GV2ME14
  • GV2ME07
  • GV2ME06
  • GV2ME16
  • GV2ME20
  • GV2ME05
  • GV2ME22
  • GV2ME21
  • GV2ME32
  • GV3P40
  • GV2ME04
  • GV2P08
  • GV2P10
  • GV3P50
  • GV2P14
  • GV3P65
  • GV2P07
  • GV2P16
  • GV2P06
  • GV2ME03
  • GV2P20
  • GV2P32
  • GV2P05
  • GV2P22
  • GV3P80
  • GV2ME02
  • GV2L14
  • GV2P21
  • GV2P04
  • GV3P32
  • GV2L08
  • GV2LE14
  • GV2LE10
  • GV2L16
  • GV2L10
  • GV2L22
  • GV3P73
  • GV2RT10
  • GV3P25
  • GV2L20
  • GV2RT07
  • GV2RT08
  • GV2ME01
  • GV2LE16
  • GV2LE22
  • GV2LE08
  • GV2LE20
  • GV2L07
  • GV3L40
  • GV2RT06
  • GV2L32
  • GV3L50
  • GV2RT14
  • GV3L65
  • GV2P03
  • GV2LE07
  • GV2RT16
  • GV3P18
  • GV2RT20
  • GV3P13
  • GV2RT05
  • GV2P02
  • GV2LE32
  • GV2RT03
  • GV2P01
  • GV2L06
  • GV3L32
  • GV2L05
  • GV2RT04
  • GV2LE06
  • GV2RT21
  • GV2LE05
  • GV2L03
  • GV2L04
  • GV3L25
  • GV3L73
  • GV2LE04
  • GV2LE03
