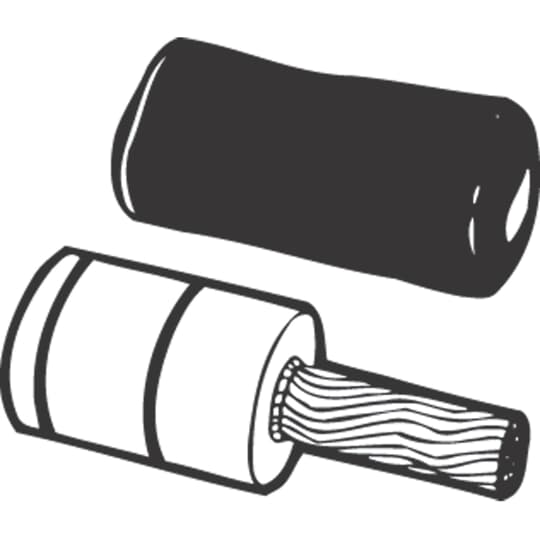

Product image for ABB PA01 AL TP PIN ADPTR TERM 1STR
Image thumbnail 0

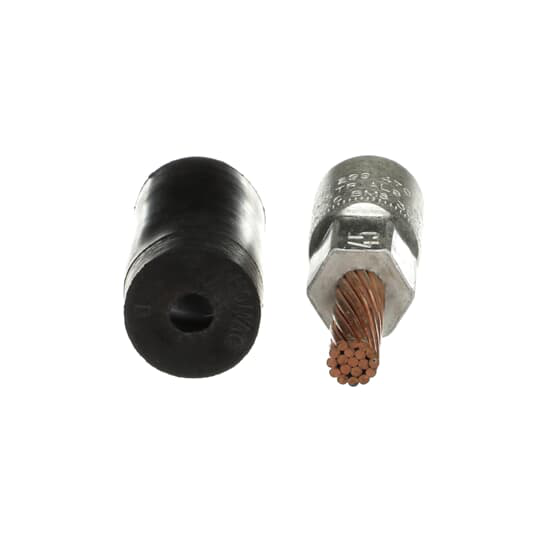

Image thumbnail 1
Image thumbnail 2

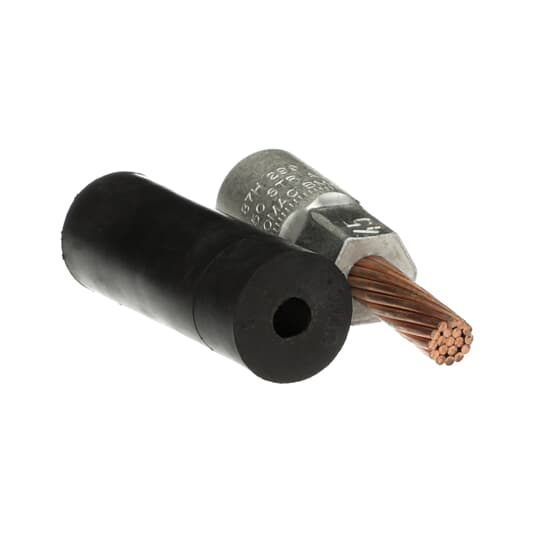

Image thumbnail 3

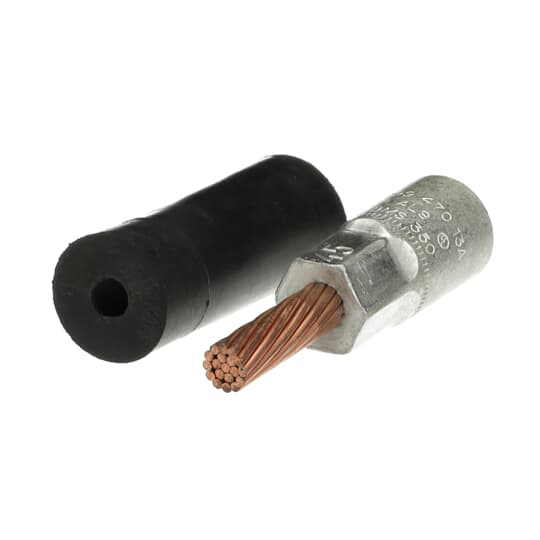

Image thumbnail 4
Email

ABB PA01 AL TP PIN ADPTR TERM 1STR

Manufacturer: Blackburn / Thomas & Betts | Catalog # PA01 | Cooper Electric Part # 898088
$2,315.71/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure
Aluminum Pin Adapter Terminal, Wire Size 1 Str, Tin Plated, Die Color Code N/A

Technical Information

Barrel Length
Long
Conductor Size
1 AWG
Conductor Type
Stranded
Material
Aluminum
Standard
UL E63167
Stud Size
#3
Temperature Rating
90 degrees C
Type
Type PA

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786134038
Color
Orange
Finish
Tin Plated
GTiN
00783786134038
Product UPC
78378613403
Used With
Aluminum Conductors

Dimensions

Overall Length
2-11/32 in
Features
  • Tin-plated aluminum barrel prefilled with oxide inhibitor and capped.
  • Insulating covers included.
  • Connector for aluminum conductor only. Pigtail may be inserted into either aluminum or copper connectors.
  • Tin-plated stranded copper wire pigtail.
Notes
  • 90 Degree C rating per UL 486B
