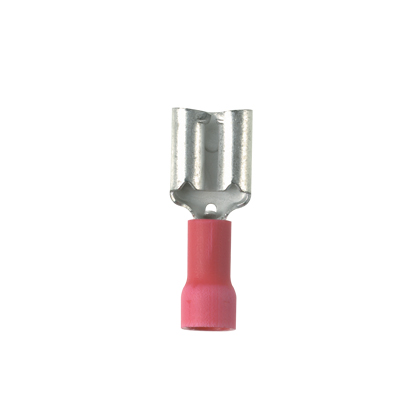

Product image for Panduit DV18-250B-CY Female Disconnect, Vinyl Barrel Insulated, 22-18AWG, .250" x .032" Tab
Email

Panduit DV18-250B-CY Female Disconnect, Vinyl Barrel Insulated, 22-18AWG, .250" x .032" Tab

Manufacturer: Panduit Corp | Catalog # DV18-250B-CY | Cooper Electric Part # 89799
$278.98/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
500 available

For Delivery

Order by Tuesday 5:00pm ET for delivery Wednesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
22-18 AWG
Insulation Material
Vinyl
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
Tab Size
1/4 x 0.032 in
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
Loose-Piece
Voltage
600 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983685615
Color
Red
Finish
Tin Plated
GTiN
00074983685615
Product UPC
07498368561
UNSPSC
39121409

Dimensions

Height
0.12 Inch
Overall Length
0.81 in
Width
0.29 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Prop 65
  • No
